- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
540 KG
-
Product name:
-
hydraulic wood cutting log splitter machine with log lifter
-
Application:
-
Cutting Forestry Wood Log
-
Color:
-
Customer Requirements
-
Raw material:
-
Wood Materials
-
Feature:
-
High Efficiency Low Cost
-
Package:
-
Wooden Case
-
Engine power:
-
14kw
-
Engine:
-
electric or gasoline
-
Keywords:
-
electric or gasoline Log Splitter
-
Certification:
-
CE ISO
Quick Details
-
Use:
-
Split wood, Wood Cutting
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
597*215*198mm
-
Weight:
-
540 KG
-
Product name:
-
hydraulic wood cutting log splitter machine with log lifter
-
Application:
-
Cutting Forestry Wood Log
-
Color:
-
Customer Requirements
-
Raw material:
-
Wood Materials
-
Feature:
-
High Efficiency Low Cost
-
Package:
-
Wooden Case
-
Engine power:
-
14kw
-
Engine:
-
electric or gasoline
-
Keywords:
-
electric or gasoline Log Splitter
-
Certification:
-
CE ISO
Product Description

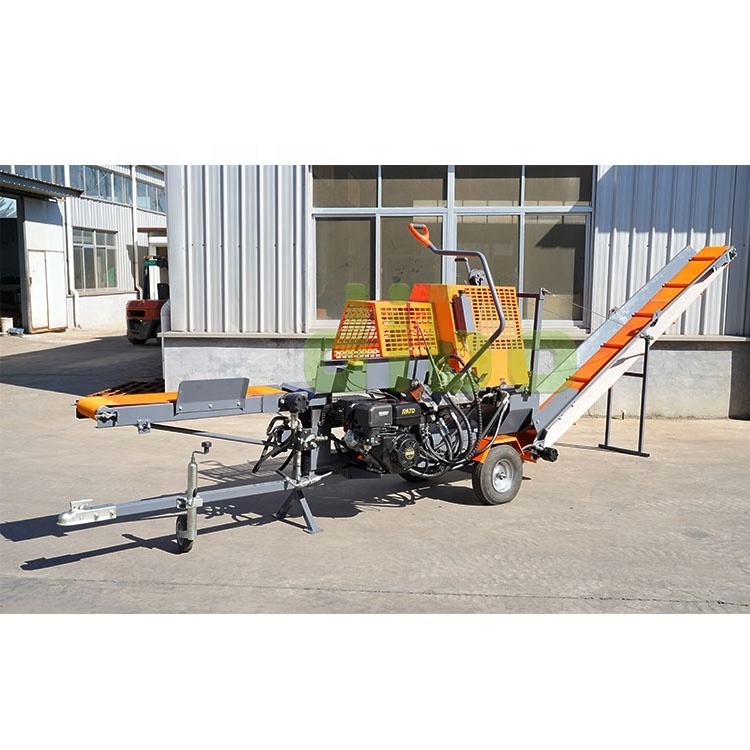

CE Forestry machinery 30ton firewood processor automatic hydraulic wood cutting log splitter machine with log lifter for sale
Product Specification
Electirc type
-
Firewood processor
splitter machine
|
Model
|
DB7ET
|
DB12ET
|
DB20ET
|
|
Power
|
7.5KW, 50HZ , 380V , 3phase
|
7.5KW, 50HZ , 380V , 3phase
|
7.5KW, 50HZ , 380V , 3phase
|
|
Weight
|
520KG
|
520KG
|
520KG
|
|
Max log diameter
|
38CM
|
38CM
|
38CM
|
|
Max log length
|
55CM
|
55CM
|
55CM
|
|
Saw motor with bearing
|
36L /min 4800 rpm
|
36L /min 4800 rpm
|
36L /min 4800 rpm
|
|
Chain Saw
|
18inch (Original STIHL)
|
18inch (Original STIHL)
|
18inch (Original STIHL)
|
|
Cylinder Bore
|
3.2inch
|
3.2inch
|
4inch
|
|
Cyle time
|
7 second
|
7 second
|
8 second
|
|
Wheel
|
12inch high speed trailer wheel
|
12inch high speed trailer wheel
|
12inch high speed trailer wheel
|
|
Knife
|
4 ways (optional 6 ways )
|
4 ways (optional 6 ways )
|
4 ways (optional 6 ways )
|
|
Packing
|
1pcs/ Iron pallet
|
1pcs/ Iron pallet
|
1pcs/ Iron pallet
|
PTO type
- Firewood processor splitter machine
|
Model
|
DB7PT
|
DB12PT
|
DB20PT
|
|
Power
|
PTO
|
PTO
|
PTO
|
|
Weight
|
520KG
|
520KG
|
520KG
|
|
Max log diameter
|
38CM
|
38CM
|
38CM
|
|
Max log length
|
55CM
|
55CM
|
55CM
|
|
Saw motor with bearing
|
36L /min 4800 rpm
|
36L /min 4800 rpm
|
36L /min 4800 rpm
|
|
Chain Saw
|
18inch (Original STIHL)
|
18inch (Original STIHL)
|
18inch (Original STIHL)
|
|
Cylinder Bore
|
3.2inch
|
3.2inch
|
3.2inch
|
|
Cyle time
|
7 second
|
7 second
|
8 second
|
|
PTO shaft
|
6 teeth, 1 3/8"
|
6 teeth, 1 3/8"
|
6 teeth, 1 3/8"
|
|
Knife
|
4 ways (optional 6 ways )
|
4 ways (optional 6 ways )
|
4 ways (optional 6 ways )
|
|
Packing
|
1pcs/ Iron pallet
|
1pcs/ Iron pallet
|
1pcs/ Iron pallet
|
Gasoline type
- Firewood processor splitter machine
|
Model
|
DB 7T
|
DB12T
|
DB20T
|
|
Power
|
188F Lifan Gasoline engine
|
188F Lifan Gasoline engine
|
188F Lifan Gasoline engine
|
|
Weight
|
520 KG
|
520 KG
|
520 KG
|
|
Max log diameter
|
38cm
|
38cm
|
38cm
|
|
Max log length
|
55cm
|
55cm
|
55cm
|
|
Saw motor with bearing
|
36L /min 4800 rpm
|
36L /min 4800 rpm
|
36L /min 4800 rpm
|
|
Chain Saw
|
18inch (Original STIHL)
|
18inch (Original STIHL)
|
18inch (Original STIHL)
|
|
Chain Saw
|
3.2inch
|
3.2inch
|
4inch
|
|
Cyle time
|
7 second
|
7 second
|
8 second
|
|
Wheel
|
12inch high speed trailer wheel
|
12inch high speed trailer wheel
|
12inch high speed trailer wheel
|
|
Knife
|
4 ways (optional 6 ways )
|
4 ways (optional 6 ways )
|
4 ways (optional 6 ways )
|
|
Packing
|
1pcs/ Iron pallet
|
1pcs/ Iron pallet
|
1pcs/ Iron pallet
|
