Quick Details
-
Brand Name:
-
BEYOND
-
Weight:
-
29000KG
-
Dimension(L*W*H):
-
11500*2800*3550
-
Rotary drive:
-
Rexroth
-
Torque output:
-
120 KN.M
-
Max. crowd push:
-
100KN
-
Max. Crowd pull:
-
130KN
-
Main winch:
-
Rexroth
-
Auxiliary winch:
-
Long
-
Engine:
-
Cumm
-
Main pump brand:
-
Kawasaki
-
Local Service Location:
-
Egypt, India, Argentina, Kazakhstan
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service
-
Certification:
-
ISO9001/CE
Quick Details
-
Efficiency:
-
High Efficiency
-
Piling Speed(m/min):
-
6-35 r/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BEYOND
-
Weight:
-
29000KG
-
Dimension(L*W*H):
-
11500*2800*3550
-
Rotary drive:
-
Rexroth
-
Torque output:
-
120 KN.M
-
Max. crowd push:
-
100KN
-
Max. Crowd pull:
-
130KN
-
Main winch:
-
Rexroth
-
Auxiliary winch:
-
Long
-
Engine:
-
Cumm
-
Main pump brand:
-
Kawasaki
-
Local Service Location:
-
Egypt, India, Argentina, Kazakhstan
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service
-
Certification:
-
ISO9001/CE
Product Description
Specification
|
|
|
|
|
|
|
|
|
NO
|
ITEM
|
LR80-21M
|
LR100-25M
|
LR130-30M
|
LR150
-40M
|
|
|
1
|
ROTARY DRIVE
(dual-motor, Brand: Rexroth)
|
|
|
|
|
|
|
1.1
|
Torque output
|
80 KN.M
|
100 KN.M
|
130 KN.M
|
150 KN.M
|
|
|
1.2
|
Rotary Speed
|
6-35 r/min
|
6-35 r/min
|
6-35 r/min
|
5-30 r/min
|
|
|
2
|
Crowd system
|
|
|
|
|
|
|
2.1
|
Maximum crowd push
|
80 KN
|
80 KN
|
100 KN
|
120 KN
|
|
|
2.2
|
Maximum crowd pull
|
120 KN
|
120 KN
|
130 KN
|
130 KN
|
|
|
2.3
|
Cylinder stroke
|
2500 mm
|
2500 mm
|
2500 mm
|
3500 mm
|
|
|
2.4
|
Maximum working pressure
|
30 Mpa
|
30 Mpa
|
30 Mpa
|
32 Mpa
|
|
|
2.5
|
Pilot pressure
|
4 Mpa
|
4 Mpa
|
4 Mpa
|
4 Mpa
|
|
|
3
|
Main winch (Brand: Rexroth)
|
|
|
|
|
|
|
3.1
|
Line pull
|
120 KN
|
120 KN
|
150 KN
|
160 KN
|
|
|
3.2
|
Line speed
|
45 m/min
|
45 m/min
|
72 m/min
|
62 m/min
|
|
|
3.3
|
Rope diameter
|
24 mm
|
24 mm
|
26mm
|
24 mm
|
|
|
4
|
Auxiliary winch (Brand: Rexroth)
|
|
|
|
|
|
|
4.1
|
Line pull
|
20 KN
|
20 KN
|
40 KN
|
80 KN
|
|
|
4.2
|
Line speed
|
60 m/min
|
50 m/min
|
60 m/min
|
80 m/min
|
|
|
4.3
|
Rope diameter
|
14 mm
|
12 mm
|
14 mm
|
16 mm
|
|
|
5
|
Engine
|
|
|
|
|
|
|
5.1
|
Engine brand
|
Cummins
|
Cummins
|
Cummins
|
Cummins
|
|
|
5.2
|
Model
|
QSB5.9-C210-30
|
Cummins
|
QSB5.9-C210-30
|
QSB7-C169
|
|
|
5.3
|
Power
|
154kw@2200rpm
|
154kw@2200rpm
|
154kw@2200rpm
|
169kw@2050r/min
|
|
|
5.4
|
Emission Standard
|
EU Stage 3 A
|
EU Stage 3 A
|
EU Stage 3 A
|
EU Stage 3 A
|
|
|
5.5
|
Maximum torque
|
624 N.M/1400 rom
|
820 N.M/1400 rom
|
820 N.M/1400 rom
|
820 N.M/1400 rom
|
|
|
6
|
Chasis
|
|
|
|
|
|
|
6.1
|
Crawler width (Telescopic)
|
2600mm (open 3400mm)
|
2800mm (open 3600mm)
|
2800mm (open 3600mm)
|
3000mm (open 3800mm)
|
|
|
6.2
|
Track shoes width
|
600mm
|
600mm
|
600mm
|
600mm
|
|
|
6.3
|
Max. travel speed
|
5 km/h
|
5 km/h
|
5 km/h
|
5 km/h
|
|
|
7
|
General
|
|
|
|
|
|
|
7.1
|
Main pump brand
|
KAWASAKI/ LONGKIN
|
KAWASAKI/ LONGKIN
|
KAWASAKI/ LONGKIN
|
KAWASAKI
|
|
|
7.2
|
Drilling diameter
|
1000mm
|
1200 mm
|
450-1200 mm
|
500-1500 mm
|
|
|
7.3
|
Drilling depth
|
21m
|
25 m
|
30m
|
40m
|
|
|
7.4
|
Tail swing radius
|
3600 mm
|
3600 mm
|
3600 mm
|
4200 mm
|
|
|
7.5
|
Operate height
|
10800 mm
|
12200 mm
|
12800 mm
|
16500 mm
|
|
|
7.6
|
Operate weight
|
19000 kgs
|
23000kg
|
29000kg
|
41000kg
|
|
|
7.7
|
Mast inclination
|
90°/4°/4°
|
90°/4°/4°
|
90°/4°/4°
|
90°/4°/4°
|
|
|
7.8
|
Hydraulic tank capacity
|
200L
|
200L
|
200L
|
240L
|
|
|
7.9
|
Diesel tank capacity
|
200L
|
200L
|
200L
|
240L
|
|
|
8
|
Dimension (L*W*H) (mm)
|
11000*2650
*3350
|
11000*2800*3450
|
11500*2800
*3550
|
14000*3000*3800
|
|
Technical Features for BYD series Rotary Drilling Rig:

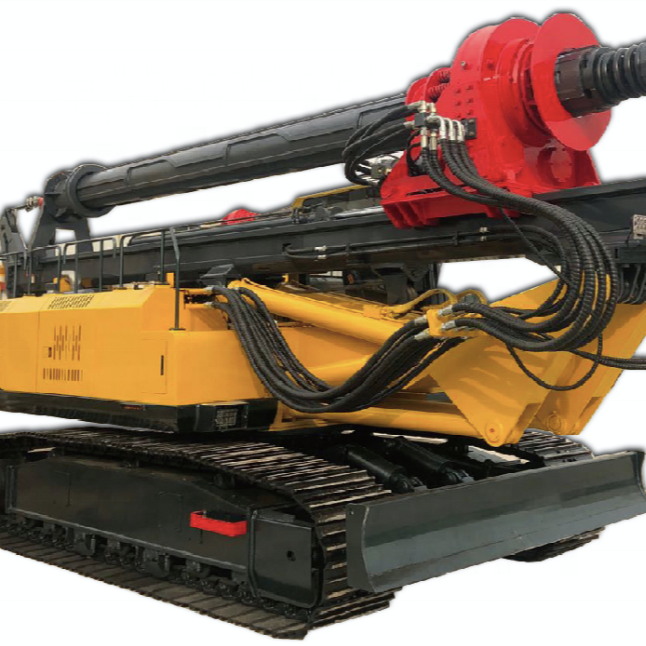

LR130 30m Pile Driving Machine Original Rexroth i Motor Construction Project Work Pile Drilling Rig Machine
1. Compact design & small swing radius enable superior performance in restricted space considering limited working area;
2. Economical solution with high productivity for small diameter piles with low investment;
3. Easy transport with Kelly bar on a single trailer & Easy Maintenance;
4. High powered turbo-charged Cummins engine to provide strong power and conformity with Euro III emission standard; Engine running hours available in cabin panel
5. World class PLC with compatible instruments & touch-screen panel;
6. Reliable hydraulic system powered by Kawasaki main pump;
7. Optimal rotary drive with Rexroth/Longkin hydraulic motors & gearbox
8. Operator cabin overhead enlarged glass for easy observation above and full-cover protection;
9. Mast verticality auto-adjusting technology promises the pile accuracy;
10. Electric diesel pump added in side tool box position for easy filling of diesel oil to tank;
11. Enlarged Hydraulic oil tanker and hydraulic motor drive cooling system to improve cooling effect so that it can work under high-temperature environment;
12. Dozer blade attachment for sundry site work;
13. All rotating parts are installed with grease point;
14. Using single rope winding, effectively solve the steel wire rope wear problem, improve the wire rope lifetime;
15. Crowd cylinder has two operation modes-normal lifting and fast lifting to improve push efficiency;
16. 5-level anti-vibration technology absorbs drilling vibrational frequency all-directionally to guarantee high stability;
17. It adopts the dedicated hydraulic retractable crawler chassis and large diameter slewing bearing to provide better stability and transport convenience;
18. Three Free supplied drilling bits with different specification are available for efficient construction on different layers;
19. Free attached expendable parts attached with machine for easy maintenance of machine;
2. Economical solution with high productivity for small diameter piles with low investment;
3. Easy transport with Kelly bar on a single trailer & Easy Maintenance;
4. High powered turbo-charged Cummins engine to provide strong power and conformity with Euro III emission standard; Engine running hours available in cabin panel
5. World class PLC with compatible instruments & touch-screen panel;
6. Reliable hydraulic system powered by Kawasaki main pump;
7. Optimal rotary drive with Rexroth/Longkin hydraulic motors & gearbox
8. Operator cabin overhead enlarged glass for easy observation above and full-cover protection;
9. Mast verticality auto-adjusting technology promises the pile accuracy;
10. Electric diesel pump added in side tool box position for easy filling of diesel oil to tank;
11. Enlarged Hydraulic oil tanker and hydraulic motor drive cooling system to improve cooling effect so that it can work under high-temperature environment;
12. Dozer blade attachment for sundry site work;
13. All rotating parts are installed with grease point;
14. Using single rope winding, effectively solve the steel wire rope wear problem, improve the wire rope lifetime;
15. Crowd cylinder has two operation modes-normal lifting and fast lifting to improve push efficiency;
16. 5-level anti-vibration technology absorbs drilling vibrational frequency all-directionally to guarantee high stability;
17. It adopts the dedicated hydraulic retractable crawler chassis and large diameter slewing bearing to provide better stability and transport convenience;
18. Three Free supplied drilling bits with different specification are available for efficient construction on different layers;
19. Free attached expendable parts attached with machine for easy maintenance of machine;
