Quick Details
-
Theoretical Shot Volume(cm³):
-
58 cm³
-
Injection Rate (g/s):
-
40 g/s
-
Injection Weight (g):
-
58 g
-
Screw diameter (mm):
-
28 mm
-
Weight (KG):
-
600 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
190 mm
-
Model Number:
-
GRW-IN15
-
Brand Name:
-
GRW
-
Power (kW):
-
4.2 kW
-
Machine name:
-
Vertical Injection Molding Machine
-
Clamping Force:
-
15T
-
Min. Mold Thickness:
-
100/25mm
-
Screw barrel diameter:
-
26/28mm
-
Injection Weight:
-
50g
-
Opening Stroke:
-
190mm
-
Injection pressure:
-
1183/1019
-
Plastic Type:
-
Thermoplastic
-
Max shot weight:
-
40 cm3/sec
-
Screw barrel rotary speed:
-
0-215rpm
Quick Details
-
Style:
-
vertical
-
Ejector Stroke(mm):
-
35 mm
-
Ejector Force(kN):
-
1.3 kN
-
Theoretical Shot Volume(cm³):
-
58 cm³
-
Injection Rate (g/s):
-
40 g/s
-
Injection Weight (g):
-
58 g
-
Screw diameter (mm):
-
28 mm
-
Weight (KG):
-
600 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
190 mm
-
Model Number:
-
GRW-IN15
-
Brand Name:
-
GRW
-
Power (kW):
-
4.2 kW
-
Machine name:
-
Vertical Injection Molding Machine
-
Clamping Force:
-
15T
-
Min. Mold Thickness:
-
100/25mm
-
Screw barrel diameter:
-
26/28mm
-
Injection Weight:
-
50g
-
Opening Stroke:
-
190mm
-
Injection pressure:
-
1183/1019
-
Plastic Type:
-
Thermoplastic
-
Max shot weight:
-
40 cm3/sec
-
Screw barrel rotary speed:
-
0-215rpm
15 Ton Vertical Injection Molding Machine
Features:
1. Vertical mold opening, vertical injection, suitable for insert molding
2. Nitrided steel screw, material tube, high torque hydraulic motor drive, multi-stage injection pressure, good plasticizing performance.
3. Direct pressure mother-mold lock cylinder design, rapid mold clamping, low-pressure safety mold clamping, automatic mold closing, multiple pressure control, high safety and improved mold life.
4. Electrical protection device, no mistakes, maintenance operator safety.
5. Automatic fault display, maintenance is quick and easy.
6. Electronic control and hydraulic use brand-name parts, quiet, precise and durable.
7. Multi-stage temperature control, multi-stage injection pressure, rate of fire, back pressure stepless adjustment, suitable for molding of precision plastic parts.
8. Optional servo energy-saving motor.
9. This machine offers a wide range of programmable functions including automatic inclusion, extraction and fully-automatic production.
10 Two column and four column (option)
usb cable plug injection molding machine Technical Parameters:
|
INJECTION UNIT |
|
mm |
Φ26 |
Φ28 |
|
|
|
Screw Diameter |
||||||
|
|
cm3 |
55.7 |
64.6 |
|
||
|
Theoretical Injection Volume |
||||||
|
|
g(oz) |
50(1.7) |
58(2.0) |
|
||
|
Injection Weight(PS) |
||||||
|
|
cm3/sec |
34.6 |
40 |
|
||
|
Injection Rate |
||||||
|
|
kg/cm2 |
1183 |
1019 |
|
||
|
Max.Injection Pressure |
||||||
|
|
r.p.m |
0~215 |
||||
|
Screw Speed Rotation |
||||||
|
|
mm |
105 |
||||
|
Nozzle Out From Platens |
||||||
|
CLAMPING UNIT |
|
tons |
15 |
|||
|
Clamping Force |
||||||
|
|
mm |
190 |
||||
|
Opening Stroke |
||||||
|
|
mm |
100/25 |
||||
|
Min.Mold Thickness |
||||||
|
|
mm |
290/215 |
||||
|
Max.Open daylight |
||||||
|
|
mm |
265 |
||||
|
Distance Between Tie Bars |
||||||
|
|
mm |
450*280 |
||||
|
Platen Size |
||||||
|
|
mm |
35 |
||||
|
Ejector Distance |
||||||
|
|
tons |
1.3 |
||||
|
Ejector Force |
||||||
|
OTHERS |
|
kg/cm2 |
140 |
|||
|
Max. Hydaulic Pressure |
||||||
|
|
|
L |
130 |
|||
|
Oil Tank Capacity |
|
|||||
|
|
kW(HP) |
2.2(3HP) |
||||
|
Pump Heating Power |
||||||
|
|
kW |
1.8 |
||||
|
Heater Power |
||||||
|
|
L*W |
mm |
1.3*0.92 |
|||
|
Machine Dimension |
H |
mm |
2.06 |
|||
|
|
tons |
0.45 |
||||
|
Machine Weight |
||||||

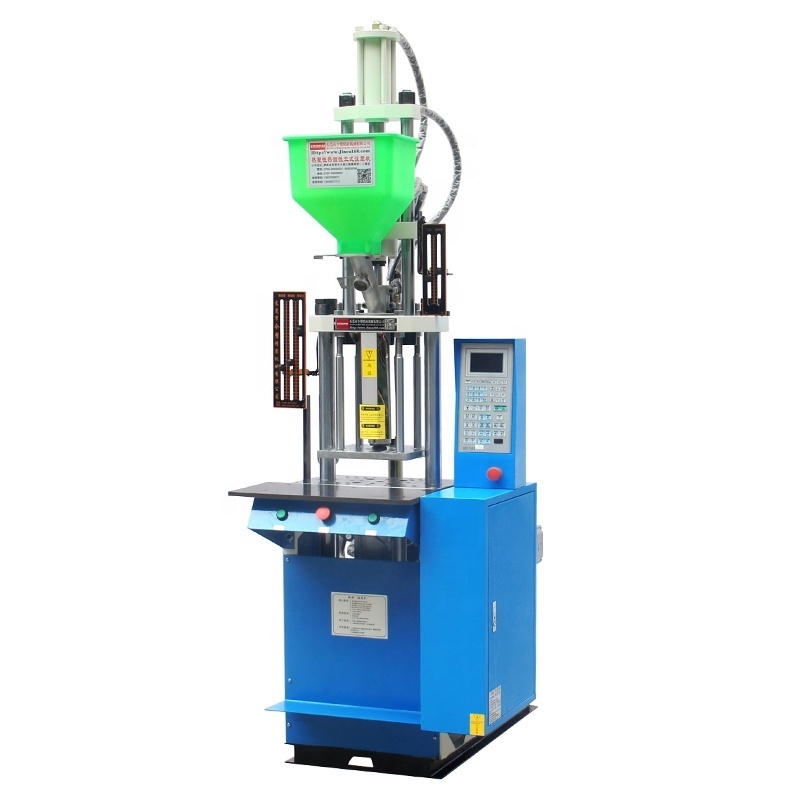

15 Ton Vertical Injection Molding Machine photos:
Finished samples on display;
If you are interested in 15 Ton Vertical Injection Molding Machine , please contact me to get a good discount;
