Quick Details
-
Brand Name:
-
CEOPA
-
Model Number:
-
CP-65
-
Density of liquid medium((g/cm³)):
-
0.45~0.60
-
Sink distance M((mm)):
-
450~600
-
Examples of typical liquid media:
-
Liquefied petroleum gas liquid ammonia
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 years
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
CEOPA
-
Model Number:
-
CP-65
-
Density of liquid medium((g/cm³)):
-
0.45~0.60
-
Sink distance M((mm)):
-
450~600
-
Examples of typical liquid media:
-
Liquefied petroleum gas liquid ammonia
Product Description

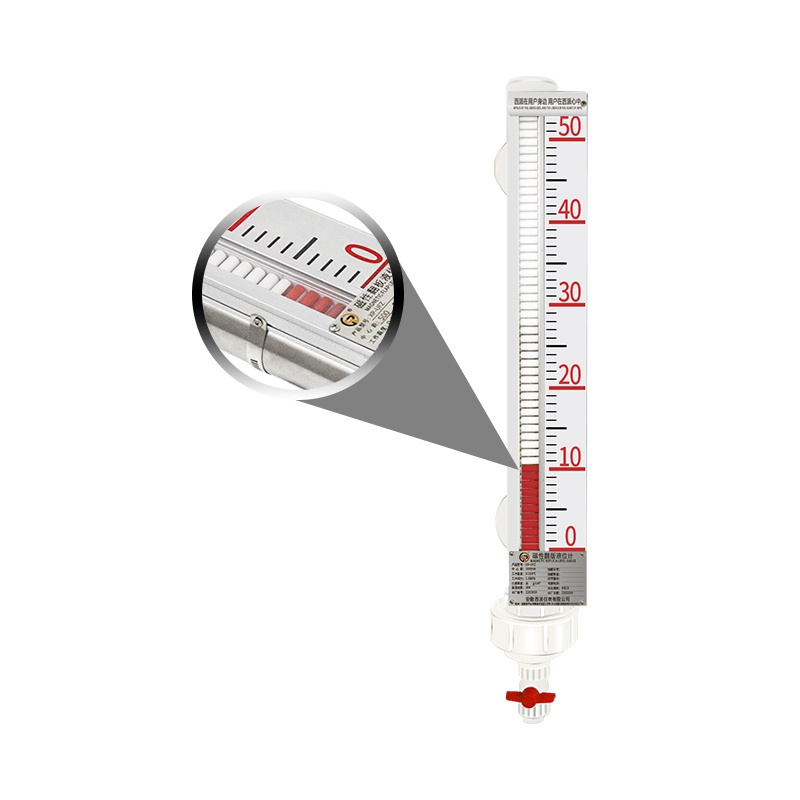

| CUH series magnetic flap liquid level meter adopts the principle of connecting device, which is connected with the container through the gas phase and liquid phase link flange. |
| According to the principle of buoyancy and magnetic coupling, the magnetic float in the measuring cylinder (i.e. the Communicating vessels) drives the two-color magnetic flap on the external display of the measuring cylinder to flip as the measured liquid level rises (falls). |
| When the liquid level rises, the magnetic float drives the tilting column to rotate 180,showing red or green; When the liquid level drops, the magnetic float drives the flip column to rotate 180° in reverse, showing white. The height of the red band (or green band) is the height of the measured liquid surface, which realizes the purpose of measuring and displaying the position of the measured liquid (boundary) surface. |
