Quick Details
-
Brand Name:
-
Drawell
-
Model Number:
-
DW-MDS-2014
-
Model:
-
DW-MDS-2014
-
Number of test devices:
-
14
-
Water bath heating range (℃):
-
RT~45.0℃
-
Temperature resolution (℃):
-
0.1℃
-
Temperature control accuracy (℃):
-
±0.2℃
-
Range of stirring speed::
-
10.0-300.0RPM
-
Speed resolution:
-
0.1RPM
-
Basket (paddle) shaft swing amplitude:
-
≤0.5RPM
-
Basket swing range:
-
≤2.0mm
-
Dissolution apparatus levelness:
-
≤±0.5°
Quick Details
-
Warranty:
-
1 YEAR
-
Power:
-
Electronic
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Drawell
-
Model Number:
-
DW-MDS-2014
-
Model:
-
DW-MDS-2014
-
Number of test devices:
-
14
-
Water bath heating range (℃):
-
RT~45.0℃
-
Temperature resolution (℃):
-
0.1℃
-
Temperature control accuracy (℃):
-
±0.2℃
-
Range of stirring speed::
-
10.0-300.0RPM
-
Speed resolution:
-
0.1RPM
-
Basket (paddle) shaft swing amplitude:
-
≤0.5RPM
-
Basket swing range:
-
≤2.0mm
-
Dissolution apparatus levelness:
-
≤±0.5°
Products Description

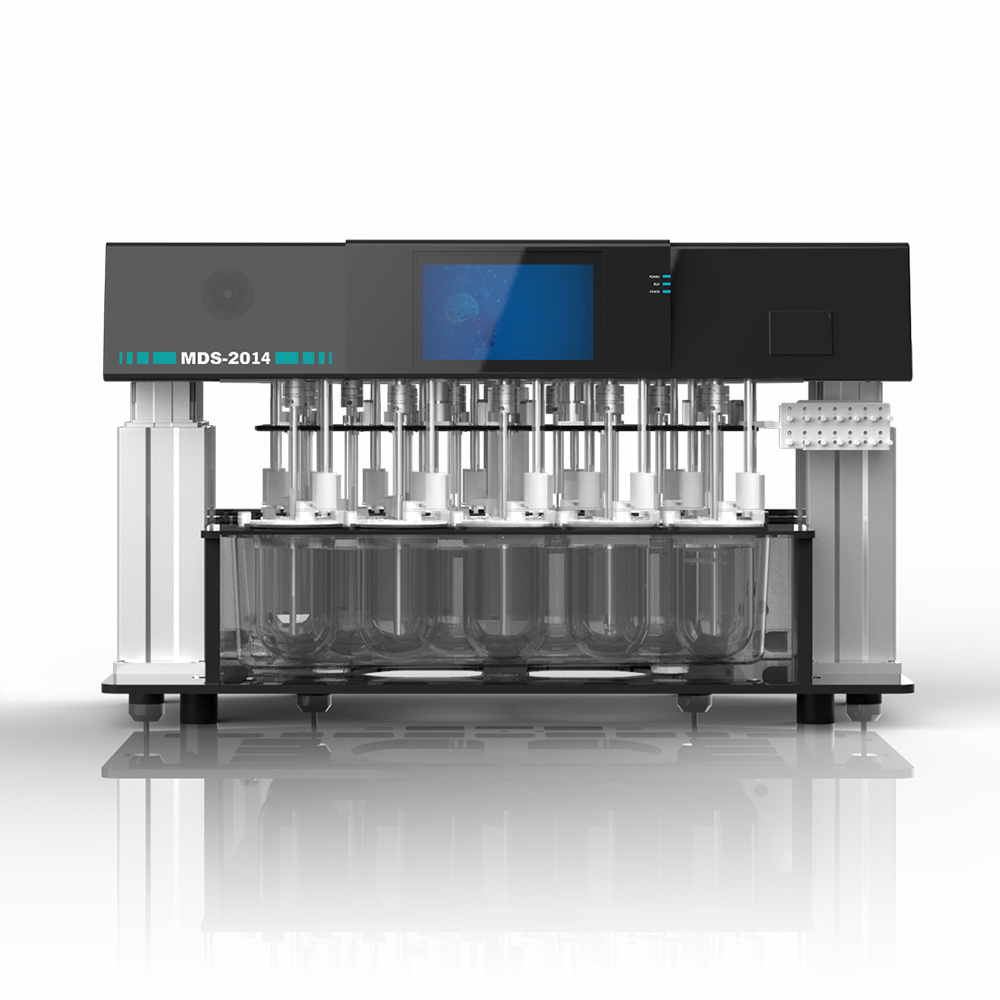

DW-MDS-2014 Lab 45 Degree 300 RPM Laboratory Dissolution Testing Equipment/Tester/Apparatus for Sale
Performance characteristics
1. One-time injection molding water tank, anti-cracking, slope drainage combined with rounded corner design, easy to clean;
2. The independent diagonal fixing device of the dissolution vessel, the silicone cup ring cooperates with the V-shaped cup cover, to realize the double sealing of the line and the surface, and greatly reduce the evaporation of the solvent;
3. The 316L stainless steel paddle shaft adopts MPT stainless steel mirror polishing technology to reduce bacterial adhesion;
4. Segmented paddle shaft design, no need to reset the height when changing the
dissolution method, which is convenient and quick;
5. Multi-point stainless steel guide rod to ensure long-term stability of the vertical
and mechanical performance indicators of the machine head;
6. The external dosing device is easy to clean to prevent cross-contamination;
7. The 10-inch large LCD touch screen makes every operation clear and simple;
8. The experiment log records the operation and parameter details of each
experiment, supports direct printing, and meets audit trail requirements;
9. Support sequence/synchronization, automatic and independent dosing;
10. Reserve the LAN interface to meet the data transmission requirements of the later digital laboratory construction;
|
Model
|
DW-MDS-2014
|
|
Number of test devices
|
14
|
|
Water bath heating range (℃)
|
RT~45.0℃
|
|
Temperature resolution (℃)
|
0.1℃
|
|
Temperature control accuracy (℃)
|
±0.2℃
|
|
Range of stirring speed
|
10.0-300.0RPM
|
|
Speed resolution
|
0.1RPM
|
|
Basket (paddle) shaft swing amplitude
|
≤0.5RPM
|
|
Basket swing range
|
≤1.0mm
|
|
Deviation between rotating shaft and dissolution vessel shaft
|
≤2.0mm
|
|
Dissolution apparatus levelness
|
≤±0.5°
|
|
Basket (paddle) axis verticality
|
≤±0.5°
|
|
Working humidity
|
(20~80)% RH
|
|
Storage humidity
|
(5~95)% RH
|
|
Working temperature
|
(5~40) ℃
|
|
Storage temperature
|
(-20~60) ℃
|
