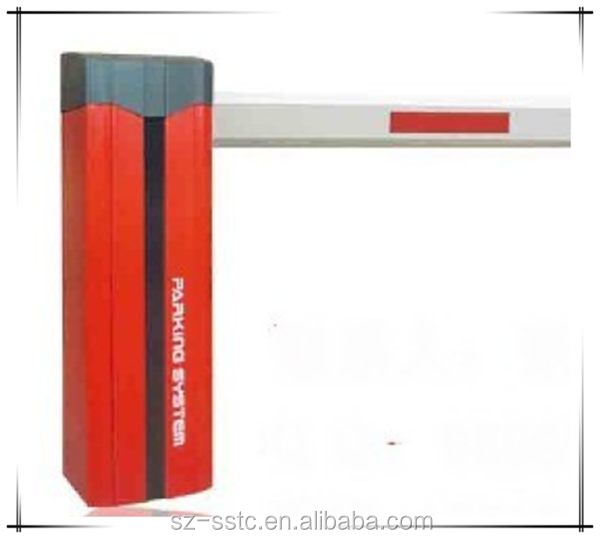

220VAC Quick Release Automatic boom barrier car parking barrier

220VAC Quick Release Automatic boom barrier car parking barrier

Technical Data:

1. Beam length: <=6m

2. Opening (Closing) time:3-5s

3. Center height: 0.83m

4. Machine core working temperature: -40 degrees to +75 degrees

5. Electric working temperature: -40 degrees to +75 degrees

6.Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz

7.Rated power: 120W

8.Relative humidity: <=90%

9.Remote control distance: <=30m

10.Net weight: (arm not included)75KGS

11.Protection grade: IP54

Specification of our 3 types of parking barrier

dimension	360W*300L*1030H(mm)	360W*300L*1030H(mm)	360W*300L*1030H(mm)
Weight	65KG	80KG	70KG
Motor power	100W	100W	100W
voltage	AC220V±10% 50Hz	AC220V±10% 50Hz	AC220V±10% 50Hz
working temperature	--40°C~+75°C	--40°C~+75°C	--40°C~+75°C
relative humidity	≤95% coagulation free	≤95% coagulation free	≤95% coagulation free
Remote control distance	<=30m	<=30m	<=30m
Arm direction optional:	leftward/rightward	leftward/rightward	leftward/rightward
Max beam length	<=6m	<=4.5	<=4.5m
Noise	60dB	≤60dB≤60dB	≤60dB
motor speed	30r/mi sn	30r/min	30r/min
Operating principle	Worm gear	Worm gear	Worm gear
beam	Straight beam	2 fence beam	90°foldable beam
Beam lifting time	3s/6s	6s	6s
MCBF	≥5,000,000 times	≥5,000,000 times	≥5,000,000 times
Working environments	indoor,outdoor	indoor,outdoor	indoor,outdoor

Features:

Anti-collision protects boom arm (optional)

Once anti-collision mechanism installed, it will protects the boom arm not to be damaged once boom arm was collided by a vehicle.

Safety--- Anti-hit by pressure resistance bounce

While moving down,arm will immediately go back to vertical position once it is obstructed by an imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is adjustable.

Safety--- Anti-hit by Loop Detector (Optional)

While barrier boom moving down, If a coming vehicle was detected to be existing on the ground induction coil, the arm will go back to vertical position immediately until loop input was dismissed and then the arm will go down immediately.

Safety--- Anti-hit by IR photocell (Optional)

While arm moving down, If infrared transportation between transmitter and receiver is blocked by human or vehicle, the arm will go back to vertical position immediately. The arm will automatically close once the infrared transportation recovers.

Safety--- Anti-hit by “Opening Priority”

If a vehicle is coming while arm moving down, the arm will immediately go back to vertical position once a open command is given, which protect the vehicle not to be hit by arm.

Closing Priority

While arm moving up, the arm will immediately go down once a close command is given

Automatically close after the given time

Once this function is set “ON”, the barrier will automatically close after given time (1-90 seconds adjustable) if there is no vehicle passed after barrier open.

Automatically Close by loop detector (Optional)

If loop detector is installed, after vehicle passed the barrier will automatically close once the loop input was triggered

Automatically open by loop detector (Optional)

If loop detector is installed, when barrier boom is in horizontal position, the barrier boom will go up immediately once the loop input was triggered

Manually control in case of no power

Once power is off, just open the cabinet and manually control the barrier by a gear mechanism. Also barrier boom can be manually locked in any position between horizontal and vertical, the lock status will remain until unlock manually.

Boom to open up fully or close down in case of power failure

If power is suddenly off while boom closing, boom will automatically close down fully if the angle between boom and vertical plane beyond 45 degree. If power failure occurs during boom opening, boom will automatically continue to open up fully if the angle between boom and level surface beyond 45 degrees.

Transparent plastic covers on Control Board

A transparent plastic covers on the Control Board to makes Control Board water proof and dust proof, also protects operator.
