Quick Details
-
Product name:
-

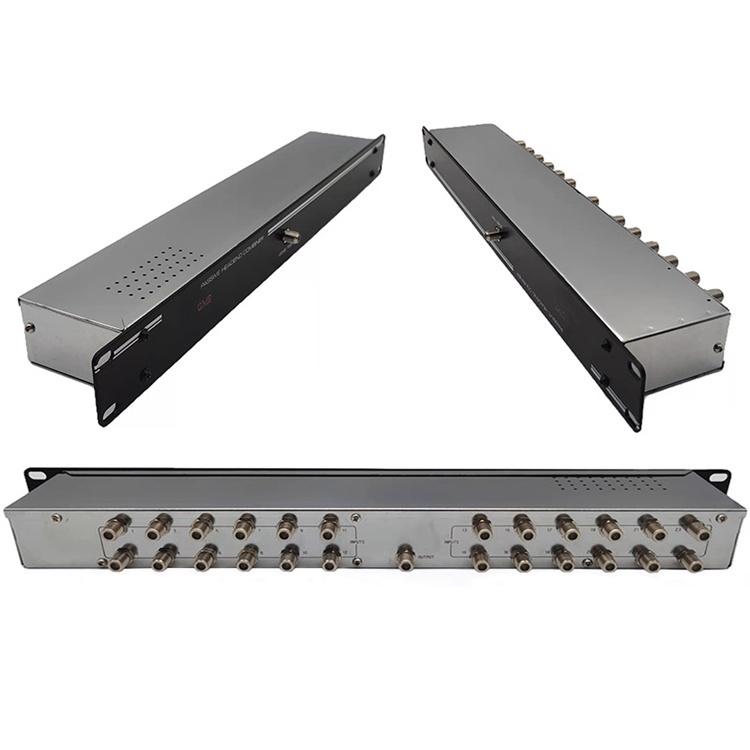

24 Channel Passive Headend Combiner
-
Type:
-
24 Channel
-
Frequency Range:
-
5 ~ 1000 MHz
-
Port To Port Isolation:
-
30 dB typical
-
Insertion Loss:
-
18 dB typical
-
Function:
-
obtain high isolation between input ports
-
Feature:
-
Directional coupler design.
-
advantage:
-
Low insertion loss
-
OEM:
-
Yes
-
Warranty:
-
1 Year
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GME, ODM/ OEM
-
Model Number:
-
GDCOM-001-2(GPC-24G)
-
Product name:
-
24 Channel Passive Headend Combiner
-
Type:
-
24 Channel
-
Frequency Range:
-
5 ~ 1000 MHz
-
Port To Port Isolation:
-
30 dB typical
-
Insertion Loss:
-
18 dB typical
-
Function:
-
obtain high isolation between input ports
-
Feature:
-
Directional coupler design.
-
advantage:
-
Low insertion loss
-
OEM:
-
Yes
-
Warranty:
-
1 Year
Product Description
Specification
|
Place of Origin:Guangdong,China
|
|
|
|
Model Number:GDCOM-001-2(GPC-24G)
|
|
|
|
Frequency Range
|
5 ~ 1000 MHz
|
|
|
Port To Port Isolation
|
30 dB typical
|
|
|
Channel
|
24
|
|
|
Dimensions
|
19"L x 28"D x 13/4"H
|
|
|
Insertion Loss
|
18 dB typical
|
|
|
Color
|
Black
|
|
|
Mounting
|
Wall or 19" rack
|
|
|
Weight
|
3.75 lbs
|
|
