- Product Details
- {{item.text}}
Quick Details
-
Bottle Volume(ml):
-
5000 ml
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZONETOP
-
Year:
-
2021
-
Voltage:
-
380V 50HZ 3Phase (Customized)
-
Dimension(L*W*H):
-
2300*850*2150mm
-
Hollow part volume:
-
5L
-
Clamping Force (kN):
-
10
-
Power (kW):
-
10
-
Weight (KG):
-
1500 KG
-
Bottle Preform:
-
PET
-
Air Compressor:
-
Shangair
-
Air Tank:
-
1Set
-
Air Dryer:
-
1 Set
-
Air Filter:
-
2 Sets
-
Water Chiller:
-
1Set
-
High Pressure Oil Pipe:
-
10m
-
Spare Part With Seals:
-
1 Set
-
Volume:
-
13.5 m2
-
Free Service:
-
Bottle Drawing
-
Certification:
-
CE, ISO9001:2008
-
Marketing Type:
-
New Product 2021
Quick Details
-
Neck Diameter(mm):
-
30 mm
-
Max.Bottle Diameter(mm):
-
280 mm
-
Max.Bottle Height(mm):
-
500 mm
-
Bottle Volume(ml):
-
5000 ml
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZONETOP
-
Year:
-
2021
-
Voltage:
-
380V 50HZ 3Phase (Customized)
-
Dimension(L*W*H):
-
2300*850*2150mm
-
Hollow part volume:
-
5L
-
Clamping Force (kN):
-
10
-
Power (kW):
-
10
-
Weight (KG):
-
1500 KG
-
Bottle Preform:
-
PET
-
Air Compressor:
-
Shangair
-
Air Tank:
-
1Set
-
Air Dryer:
-
1 Set
-
Air Filter:
-
2 Sets
-
Water Chiller:
-
1Set
-
High Pressure Oil Pipe:
-
10m
-
Spare Part With Seals:
-
1 Set
-
Volume:
-
13.5 m2
-
Free Service:
-
Bottle Drawing
-
Certification:
-
CE, ISO9001:2008
-
Marketing Type:
-
New Product 2021
Products Description
ZONETOP semi automatic stretch blow moulding machine is suitable for producing plastic PET bottles in all shapes and sizes. It is widely used to produce
PET
mineral water bottles
,
carbonated beverage bottles
,
fruit juice bottles
,
alcohol spray bottles
,
hand sanitizer bottles
,
s
hampoo bottles
,
cosmetics
bottles
,
wide-mouth bottles
,
oil bottles
and
plastic PET cans
etc.
(PP material bottles can be customized)
1). Easy to Operate.
(The One Person without special training operates it easily and safely.)
(The One Person without special training operates it easily and safely.)
2).
Automatic fall off the mould.
(
less than or equal to
1500ml bottles)
3). FESTO Components.
4). PLC control, Schneider brand.
5). It is widely used to produce PET bottle ranging from 0.2 to 5L
5). It is widely used to produce PET bottle ranging from 0.2 to 5L
(Such as: 330ml, 500ml, 1000ml, 1500ml, 2000ml, 2500ml, 3000ml 5000ml PET bottles).
Flow chart:
Engineering item:
1. Capacity: 600-800 pcs/hr
2. Volume :
5L (2 cavity)
3. Workers: 1 workers
4. Application for :PET water bottle, PET oil bottle, PET jar, PET
wide mouth bottle
5. Total power :22KW ; Actual power :8KW
6. Power: 380V 50hz 3phase (Customized)
7. Occupy area : 50M2
Features:
1. Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
2. Independent Temperature Control for different heating lamp to get ideal preform heating results.
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Heating lamps are adjustable in directions to suit various preforms.
5. Equipped with special designed air storage unit
6. Operated only by one person without special training.
7. Low investment, easy and safe to operate .
8. Waste rate of finished bottle is less than 0.1%
Semi automatic bottle blowing machine
Equipment list:
|
ITEMS
|
NAME
|
MODEL
|
QUA.
|
NOTE
|
||||
|
1
|
Semi automatic bottle Blowing Machine
(Capacity: 600-800 pcs/hour )
|
ZONETOP
|
1set
|
1pc blower +1pc oven
|
||||
|
2
|
Blowing mould (5000ml)
|
optional
|
1set
|
5000ml
|
||||
|
3
|
HP Air Compressor
|
1.58m3 /min 30Kg
|
1set
|
|
||||
|
4
|
Air dryer
|
3.0m3 /min30kg
|
1set
|
|
||||
|
5
|
Air filter
|
3.0m3 /min30Kg
|
2set
|
|
||||
|
6
|
Water Chiller
|
3HP
|
1set
|
|
||||
|
7
|
High pressure oil pipe
|
|
10m
|
Free
|
||||
|
8
|
Spare part with seals
|
|
1set
|
Free
|
||||
|
Spare parts list :Seal cushion(10pcs); Lamps(3pcs); Fuse(3pcs); Switch(1pcs); breaker(1pcs); Silicon controlled (1pcs) pressure adjust (1pc)
|
|
|
|
|
||||
Note:the quotation is based on 380V,50HZ, 3 Phases,for special voltage. Please inform me
Package
:
Standard export
wooden case
Delivery time
: 25 working days after receive down payment.
Guarantee time
: 12 monthes after machines running in buyer's factory.
Payment terms:
30% as down payment, 70% before shipping, T/T OR L/C.
Installation:
If buyer request, seller can send technicians to buyer's factory to install
the machine, buyer pay air tickets, visa fees, salary usd 50/day ,it takes about one week
Details Images

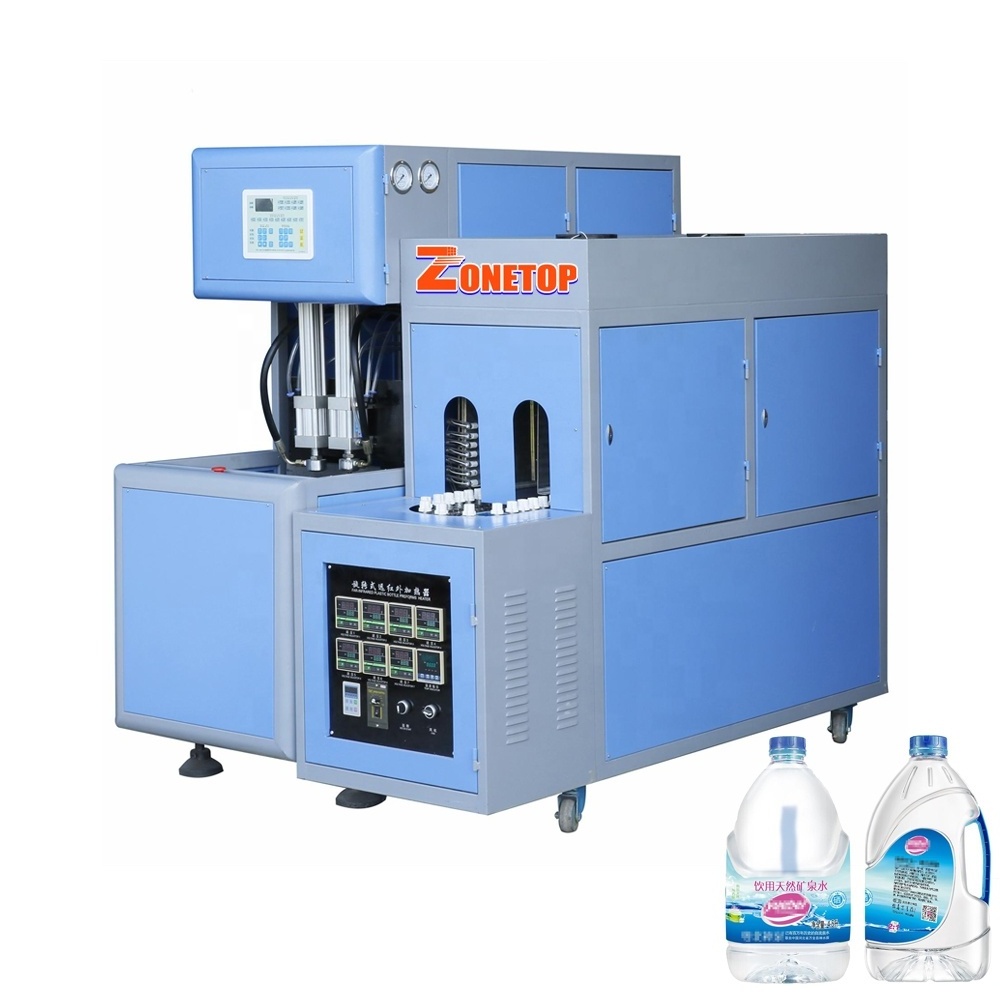

600 to 800 Bottles Per Hour 5L Bottle Blowing Machine
Blowing machine to make mineral water bottles
Blowing machine to make oil bottles
Blowing PET Preform
Blowing Mould
