Quick Details
-
Voltage:
-
380V/400V/415V
-
Dimension(L*W*H):
-
5500*2200*2100MM
-
Weight:
-
2000 kg
-
Marketing Type:
-
Hot Product 2022
-
Application:
-
crushing feed pellets
-
Capacity:
-
1-20t/h
-
Motor:
-
Siemens Brand
-
Bearing:
-
NSK
-
After Warranty Service:
-
Online support
Quick Details
-
Max. Capacity:
-
1-10T/H
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WF
-
Voltage:
-
380V/400V/415V
-
Dimension(L*W*H):
-
5500*2200*2100MM
-
Weight:
-
2000 kg
-
Marketing Type:
-
Hot Product 2022
-
Application:
-
crushing feed pellets
-
Capacity:
-
1-20t/h
-
Motor:
-
Siemens Brand
-
Bearing:
-
NSK
-
After Warranty Service:
-
Online support

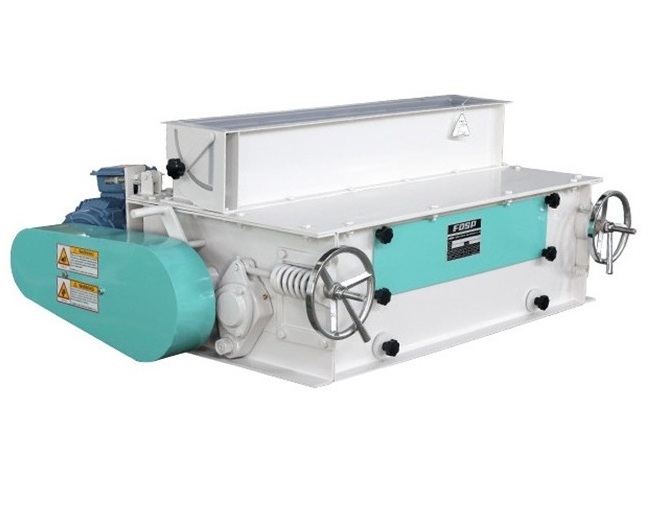

SSLG Crumbler machine, crusher machine
SSLG series two roller/three roller feed pellet crumbler/feed pellet crusher
Advantage:
1, Double-roller structure, low noise, high efficiency, cover asmall area, drive mechanism is advanced, with the installation of side stream, and with sample application scope is small.
2, International advanced type, three roller structure;
3, Broken product more uniform, uniform feeding roller separate frequency conversion control, frequency conversion control, feed evenly;
4, Roller diameter is big, the effect is better, and the capacity is big.
5, A special design of sampling hole can be adjusted timely to observe. Uniform is convenient, fast, reliable and can be double stacked, continuous broken, reduce particles manufacture cost.
6, Prawn bait special crusher, special tooth profile, the effect is good, three roller structure;
7, Uniform feeding roller separate frequency conversion control, frequency conversion control, feed evenly;
8, Roller diameter is big, the effect is better, and the capacity is big.A special design of sampling hole can be adjusted timely to observe. Uniform is convenient, fast, reliable;
9, International advanced type, strong adaptability, applicable ornamental fish shrimp bait and various seedlings shrimp.
Technical paremeters:
|
Model |
Power (KW) |
Capacity (T/H) |
Slow roller speed (RPM) |
Fast roller speed(RPM) |
Weight (KG) |
|
SSLG15×80×2 |
4 |
2-4 |
476 |
725 |
412 |
|
SSLG15×100×2 |
5.5 |
3-6 |
476 |
725 |
580 |
|
SSLG15×150×2 |
7.5/11 |
5-12 |
476 |
725 |
700 |
|
SSLG25×100×3 |
7.5+1.1 |
6-8 |
360 |
470 |
900 |
|
SSLG25×140×3 |
11+1.1 |
8-15 |
360 |
470 |
1660 |
|
SSLG25×170×3 |
18.5+1.1 |
15-20 |
360 |
470 |
1770 |
|
SSLG30×180×3 |
22+2.2 |
20-25 |
315 |
470 |
2100 |
