Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Changjiang electric
-
Model Number:
-
LA38-**J/203
-
Product name:
-
22mm mushroom head rotary reset emergency stop push button switch
-
Mounting hole:
-
22mm or 25.5mm(match with conversion ring)
-
Material:
-
flame-retardant plastic
-
Operation type:
-
Press locking, rotating reset
-
Contact configuration:
-
1NO/1NC/2NO/2NC/1NO1NC...
-
Certificate:
-
CCC CE ROSH
-
Free accessories:
-
Warning sign, seal ring
-
safety cover:
-
AQG4 Transparent protective cover; AQG5 Protective base
-
Color:
-
Red
-
Application:
-
Industrial Control
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP54/IP65
-
Max. Current:
-
AC-15 220V/5.5A
-
Max. Voltage:
-
500V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Changjiang electric
-
Model Number:
-
LA38-**J/203
-
Product name:
-
22mm mushroom head rotary reset emergency stop push button switch
-
Mounting hole:
-
22mm or 25.5mm(match with conversion ring)
-
Material:
-
flame-retardant plastic
-
Operation type:
-
Press locking, rotating reset
-
Contact configuration:
-
1NO/1NC/2NO/2NC/1NO1NC...
-
Certificate:
-
CCC CE ROSH
-
Free accessories:
-
Warning sign, seal ring
-
safety cover:
-
AQG4 Transparent protective cover; AQG5 Protective base
-
Color:
-
Red
-
Application:
-
Industrial Control
-
Certification:
-
CE
Product Overview

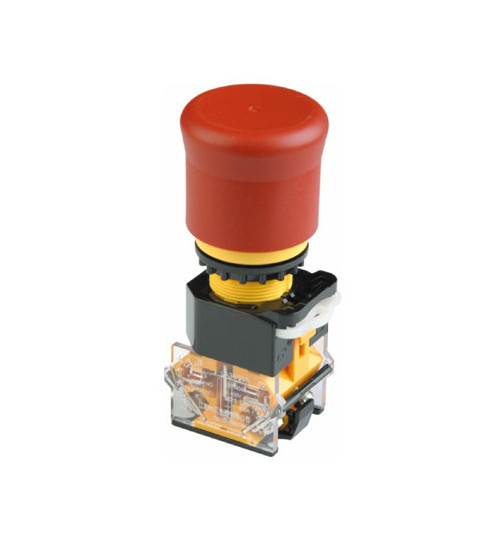

LA38 emergency stop
button
switch
LA38 Series Button Switch is used for remote control in electromagnetic starters,contactors, relays and other electrical circuits with the voltage of 380V and below and the DC voltage of 230V and below, AC 50Hz (or 60Hz); The button with lamp is also suitable for the occasions where light signal indication is needed. It has passed the national CCC certification, CE certification and type approval of China Classification Society.
Details Images
Product Parameter
|
Type specification
|
LA38-**J/203
(**means contact,10:1NO,01:1NC,11:1NO+1NC,20: 2NO,02: 2NC,6 pairs of contacts at most )
|
|
|
|
|
|
|||||
|
Product Name
|
emergency stop button switch
|
|
|
|
|
|
|||||
|
Products Standard
|
GB/T 14048.5
|
|
|
|
|
|
|||||
|
Operation Condition
|
Altitude height
|
Environment temperature
|
Storage
temperature
|
Relative humidity
|
Pollution class
|
Install type
|
|||||
|
|
≤2000m
|
-25℃~+55℃
|
-40℃~+70℃
|
≤90%
|
3
|
Ⅲ
|
|||||
|
Main technical index
|
common parameter
|
Rated insulated Voltage
|
500V
|
|
|
|
|||||
|
|
|
Front panel protection degree
|
IP65
|
|
|
|
|||||
|
|
|
power frequency withstand voltage
|
1.89KV/5S
|
|
|
|
|||||
|
|
|
Insulation Resistance
|
≥50MΩ
|
|
|
|
|||||
|
|
Basic parameters
|
Resistive current
|
10A
|
|
|
|
|||||
|
|
|
Rated working Voltage /Current
|
AC-15
|
|
DC-13
|
|
|||||
|
|
|
|
380V/4A
|
220V/5.5A
|
110V/1A
|
220V/0.45A
|
|||||
|
|
|
Electrical life
|
200,000 times
|
|
|
|
|||||
|
|
|
Mechanical life
|
200,000 times
|
|
|
|
|||||
Outside Drawing
Installation Drawing
Successful Application
Our Company
Company Headquarter
Jiangyin Changjiang Electric Appliance Co., Ltd. is a subsidiary of Jiangsu Xinchao Technology Group Co., Ltd. Today we have become a leading manufacturer in the lighting industry of low-voltage electrical appliances and construction machinery. Our products are widely used in power, machinery, industrial control, elevator, communication, rail transit, new energy and construction machinery. Its novel design and reliable product features have won the unanimous favor of the majority of users.
Workshop
The facotry of
Jiangyin Changjiang Electric Appliance
is located in Jiangyin Xu Xiake Town,covers an area of more than 6,000 square meters,and has several production lines,including signal lamp line,push button line,cam chang-over switch line,transformer line and electrical line.There are
30 excellent R&D staff in technology center and
300 workers in production workshop.P
rofessional design and inspection
support our products
in best quality and in
shortest delivery time.
Product Packaging
Different box size
Professional packaging
