Quick Details
-
Dimension(L*W*H):
-
515*300*1150MM
-
Model Number:
-
JLYB-160
-
Weight (T):
-
0.07
-
Marketing Type:
-
Hot Product 2020
-
After-sales Service Provided:
-
Overseas service center available
-
Pressure capacity:
-
0.5T
-
Cylinder:
-
Diameter 125*100MM
-
Cylinder Adjustable Stroke:
-
50mm
-
Working Height:
-
100mm --400mm
-
Driving Pressure:
-
0.3-0.8MPA
-
power:
-
AC220V 50HZ
-
Start Button:
-
Two Hand Safety Push Buttons/Foot Switch
-
Safety Sensor:
-
Customer Optional
-
Custom-tailor:
-
Available
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JULY
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
515*300*1150MM
-
Model Number:
-
JLYB-160
-
Weight (T):
-
0.07
-
Marketing Type:
-
Hot Product 2020
-
After-sales Service Provided:
-
Overseas service center available
-
Pressure capacity:
-
0.5T
-
Cylinder:
-
Diameter 125*100MM
-
Cylinder Adjustable Stroke:
-
50mm
-
Working Height:
-
100mm --400mm
-
Driving Pressure:
-
0.3-0.8MPA
-
power:
-
AC220V 50HZ
-
Start Button:
-
Two Hand Safety Push Buttons/Foot Switch
-
Safety Sensor:
-
Customer Optional
-
Custom-tailor:
-
Available

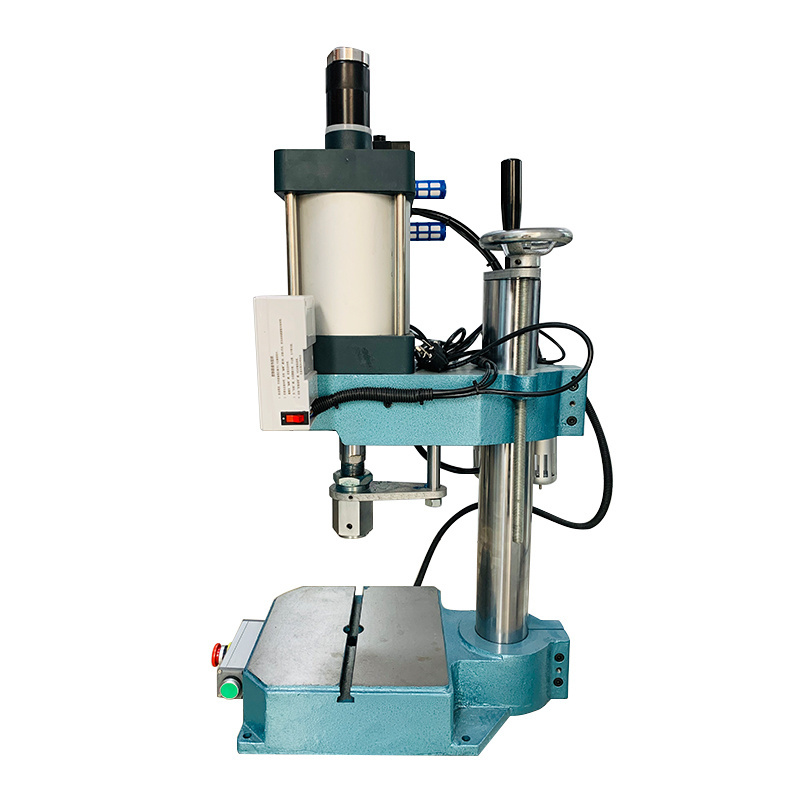

JULY factory price small pneumatic toggle press machine
|
Product name |
Pneumatic punch machine |
|
model name |
JYLB-160 |
|
Cylinder specification |
Diameter290*276 mm |
|
Adjustable Stoke |
50mm |
|
Power |
AC220V 50-60HZ |
|
Driving Pressure |
0.3-0.8Mpa |
|
Output pressure |
540-1500Kg |
|
Maximun working height |
370mm |
|
Minimun working height |
100mm |
1.Compressed air as power source, simple operation
2.No oil pressure system produced by the noise, environmental pollution, energy saving and consumption reduction
3.Multiple functions: press bearing, punch hole, riveting, assembling, etc
4.The opening height can be adjusted flexibly according to the size of the product or mold
5.The output size is controllable, only need to adjust the intake pressure, simple, convenient
6.Safety design, ergonomic, suitable for long-term operation
7.Press retention time can be adjusted with counter
8.Optional quick exhaust valve to speed up descent speed and improve efficiency
Q1. What is your term of payment?
A: Usually, we accept T/T, irrevocable L/C at sight. For regular orders, we prefer 30% in advance, 70% against the copy of B/L. For long term business relations, we have more advantage terms for payment.
Q2. What is your terms of delivery?
A: We accept FOB, CIF, DDU, DDP etc. You can choose the one which is the most convenient or cost-effective for you.
Q3: What is the lead time?
A: It usually takes 15 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was nonstandard, we have to consider extra 10-15 days.
Q4: Can you produce according to the drawings?
A: We can accept customers' customization, but we need to communicate with our engineers about the production.
Q5: Can you use the spare parts that customers specify the brand?
A: We are very willing to accept the spare parts that customers specify the brand to product assembling, but we need to charge some assembling cost.
Q6: Can you supply the product mold or other related accessories?
A: We can on behalf of the procurement according to the customer's drawings and requirements. After the product mold and accessories are installed and debugged in the machine, it will be sent to you shipped with the machine.
Q7: Do you accept the factory inspection?
A: Yes, we are very happy to accept customers to visit. We are a manufacture with a very rich R & D and production experience for many years.
Q8: How to solve the quality of after-sales?
A: We have a professional after-sales service team to solve your problem at the first time. For product quality problems during the warranty period (non-human damage), we will be maintenance or replacement for you unconditionally. For man-made damage, we only be charged for the maintenance costs.
Q9:What is your shipping method?
A: We respect the client's choice, by sea, by air or by express.
Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM, each step is in compliance to the standards.
