Quick Details
-
Model Number:
-
DSP
-
Place of Origin:
-
China
-
Product name:
-
Grease Divider Grease Block Grease Distributor
-
Type:
-
Accessories
-
Standard or Nonstandard:
-
Standanrd
-
Certification:
-
ISO 9001
-
Material:
-
Carbon Steel
-
MOQ:
-
1 Set
-
Max pressure:
-
25.0Mpa
-
Brand:
-
CISO
-
Max Flow Rate:
-
1.3ml/cyc
-
Liquid:
-
NLGI2
Quick Details
-
Application:
-
Food and Beverage Industry, Industrial Utilities, Machining, Mining industry
-
Pressure:
-
High Pressure
-
Brand Name:
-
CISO
-
Model Number:
-
DSP
-
Place of Origin:
-
China
-
Product name:
-
Grease Divider Grease Block Grease Distributor
-
Type:
-
Accessories
-
Standard or Nonstandard:
-
Standanrd
-
Certification:
-
ISO 9001
-
Material:
-
Carbon Steel
-
MOQ:
-
1 Set
-
Max pressure:
-
25.0Mpa
-
Brand:
-
CISO
-
Max Flow Rate:
-
1.3ml/cyc
-
Liquid:
-
NLGI2
Product Overview

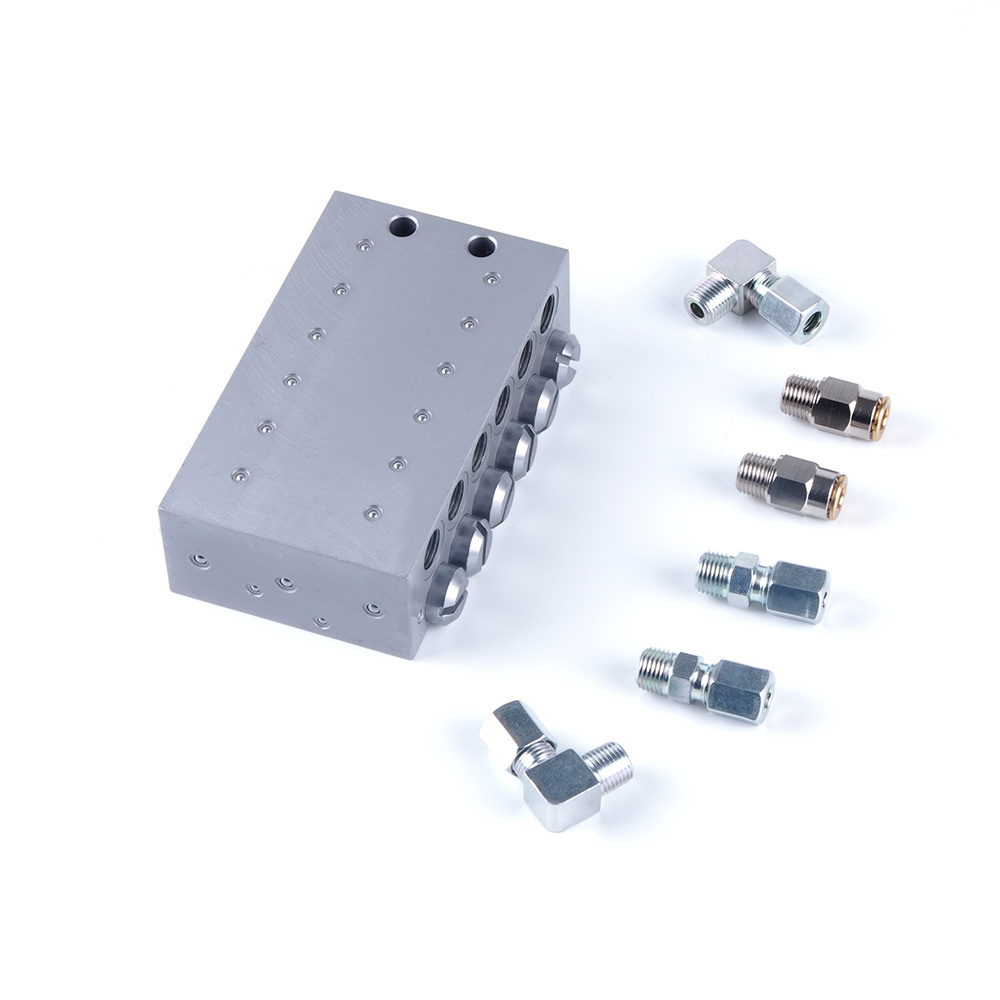

6 Holes Oil Grease Distributor
Integral Leakless High Pressure Distributor Valve
The DSP is a single block progressive divider valve That is ideal for applications where space is limited.
It is available in 6,8,10,12,18,20 and 22 outlet versions, each with an output of 0.2 cm³ inch per cycle.
The single output of the dosing device may be combined with the one located adjacent by eliminating the special fitting and applying a plug. An outlet can also be merged with the sequential outlet on the block by removing the special outlet fitting and installing a plug. Visual or electronic monitoring can be achieved simply by removing a plug and installing a visual or electronic add-on device as shown below. The spools in a progressive metering valve operate sequentially partitioning equally across the outlets, the grease being pumped into the metering block inlet. In the event of a blocked lubrication point all the spools will stop, thereby allowing the user to monitor the entire system with a single monitoring
device. The grease pumped inside of the block is distributed by the piston dispensers of the progressive dosing device equally among the different outputs. In case a single output becomes blocked, the pistons stop their activity allowing for
the control of the entire system by means of a single device for this purpose
The DSP is a single block progressive divider valve That is ideal for applications where space is limited.
It is available in 6,8,10,12,18,20 and 22 outlet versions, each with an output of 0.2 cm³ inch per cycle.
The single output of the dosing device may be combined with the one located adjacent by eliminating the special fitting and applying a plug. An outlet can also be merged with the sequential outlet on the block by removing the special outlet fitting and installing a plug. Visual or electronic monitoring can be achieved simply by removing a plug and installing a visual or electronic add-on device as shown below. The spools in a progressive metering valve operate sequentially partitioning equally across the outlets, the grease being pumped into the metering block inlet. In the event of a blocked lubrication point all the spools will stop, thereby allowing the user to monitor the entire system with a single monitoring
device. The grease pumped inside of the block is distributed by the piston dispensers of the progressive dosing device equally among the different outputs. In case a single output becomes blocked, the pistons stop their activity allowing for
the control of the entire system by means of a single device for this purpose
