Quick Details
-
Voltage:
-
AC380V,50-60HZ,3PHASE
-
Dimension(L*W*H):
-
4260*2150*3300
-
Warranty:
-
1 year warranty
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
5 axis cnc foam boat car mold making machine
-
Processing:
-
Drilling machine
-
Certification:
-
CE, CE
-
Spindle:
-
10KW ITALY HSD ATC air cooling spindle
-
Motor:
-
Japan Yaskawa servo motor
-
Max idling speed:
-
60m/min
-
Max engraving speed:
-
45m/min
-
X.Y structure:
-
Gear wheel transmission
-
Z structure:
-
Hiwin ball screw
-
Control system:
-
5 axis OSAI or Synthec system
-
Weight:
-
7500 KG
-
Power:
-
10 KW
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Chaoda
-
Model Number:
-
JC--5AXIS
-
Voltage:
-
AC380V,50-60HZ,3PHASE
-
Dimension(L*W*H):
-
4260*2150*3300
-
Warranty:
-
1 year warranty
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
5 axis cnc foam boat car mold making machine
-
Processing:
-
Drilling machine
-
Certification:
-
CE, CE
-
Spindle:
-
10KW ITALY HSD ATC air cooling spindle
-
Motor:
-
Japan Yaskawa servo motor
-
Max idling speed:
-
60m/min
-
Max engraving speed:
-
45m/min
-
X.Y structure:
-
Gear wheel transmission
-
Z structure:
-
Hiwin ball screw
-
Control system:
-
5 axis OSAI or Synthec system
-
Weight:
-
7500 KG
-
Power:
-
10 KW
5 axis cnc foam boat car mold making machine

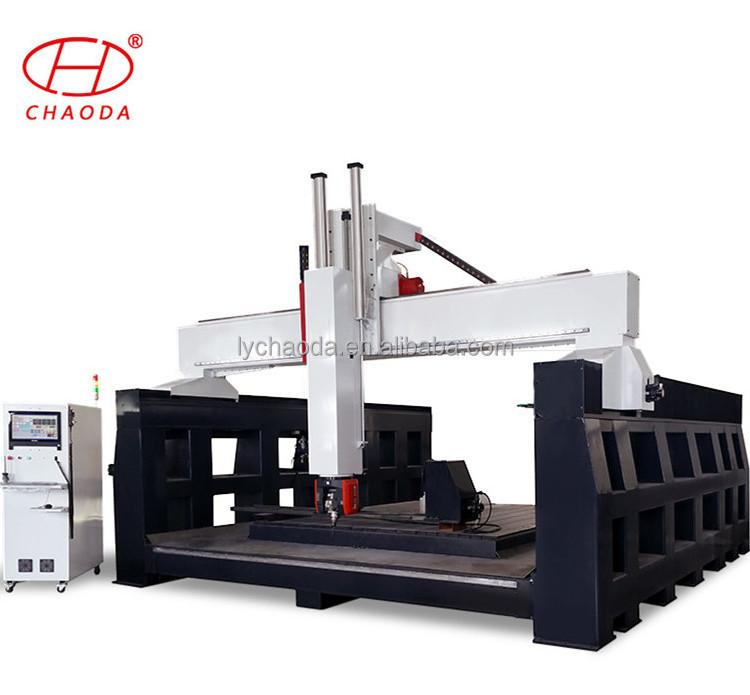

We are so pleasure to let you see our machine photo as follow :
| Machine Features: | |
| X,Y,Z working area | 3000*3000*1000mm (option bigger size ) |
| Table size | 3000*3000mm |
| Spindle | HSD 10 KW Or VEM 15 KW |
| Motor | Yaskawa Servo motor and driver |
| Moving mode | gantry moving |
| C travelling | ±245 DEGREE or 360 degree |
| A travelling | ±120 DEGREE |
| Beam spacing(MM) | 5260 |
| Beam Height(MM) | 2150 |
| water pump | spindle cooling and tool cooling |
| product fixed form | clamp * t-slot * water tank table |
| Tool magazine | auto tool magazine (8 positions) |
| X, Y, Z Travelling Potioning Accuracy | ±0.02 |
| X, Y, Z Travelling Repositioning Accuracy | ±0.05mm |
| Frame | Cast steel |
| X, Y structure | rack and pinion drive, Taiwan rail linear bearing from Japan |
| Max Rapid Travel Rate | 45,000mm/min |
| Max working speed | 30,000mm/min |
| Z Axis | 20m/min |
| C Axis | 20m/min |
| A Axis | 20m/min |
| Machine size | 4260*2150*5300 |
| Total Power(kw) | 20 KW |
| Maximum lifting weights | 20T |
| Working voltage | AC380V/50Hz |
| Command languages | G code,F/S |
| Control system | OSAI / SYNTHEC |
| Collet | BT40 |
| Limit switch | Omron |
We are very glad to show products 5 axis can do as follows , actually 5 axis can do everything :
