Quick Details
-
Brand Name:
-
CapsulCN
-
Voltage:
-
220V50HZ/110V60HZ
-
Dimension(L*W*H):
-
40*36*55cm
-
Weight (KG):
-
50
-
Power (kW):
-
0.35
-
Model:
-
CDR-5A
-
Output Capacity:
-
300-1500 capsules/min
-
Operation:
-
Semi-Automatic Operation
-
Product name:
-
Semi Automatic Counting Machine
-
Application:
-
Tablet Capsule Pill Candy Counting
-
Function:
-
Tablet Pills Counting
-
Keyword:
-
Small Capsule Counting Machine
-
Material:
-
Stainless Steel 304
-
Useage:
-
Bottling Capsule Tablet Pill
-
Counting:
-
Tablet Capsule Soft Gel
Quick Details
-
Capacity (pcs/h):
-
90000 pcs/h
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CapsulCN
-
Voltage:
-
220V50HZ/110V60HZ
-
Dimension(L*W*H):
-
40*36*55cm
-
Weight (KG):
-
50
-
Power (kW):
-
0.35
-
Model:
-
CDR-5A
-
Output Capacity:
-
300-1500 capsules/min
-
Operation:
-
Semi-Automatic Operation
-
Product name:
-
Semi Automatic Counting Machine
-
Application:
-
Tablet Capsule Pill Candy Counting
-
Function:
-
Tablet Pills Counting
-
Keyword:
-
Small Capsule Counting Machine
-
Material:
-
Stainless Steel 304
-
Useage:
-
Bottling Capsule Tablet Pill
-
Counting:
-
Tablet Capsule Soft Gel
Product Description

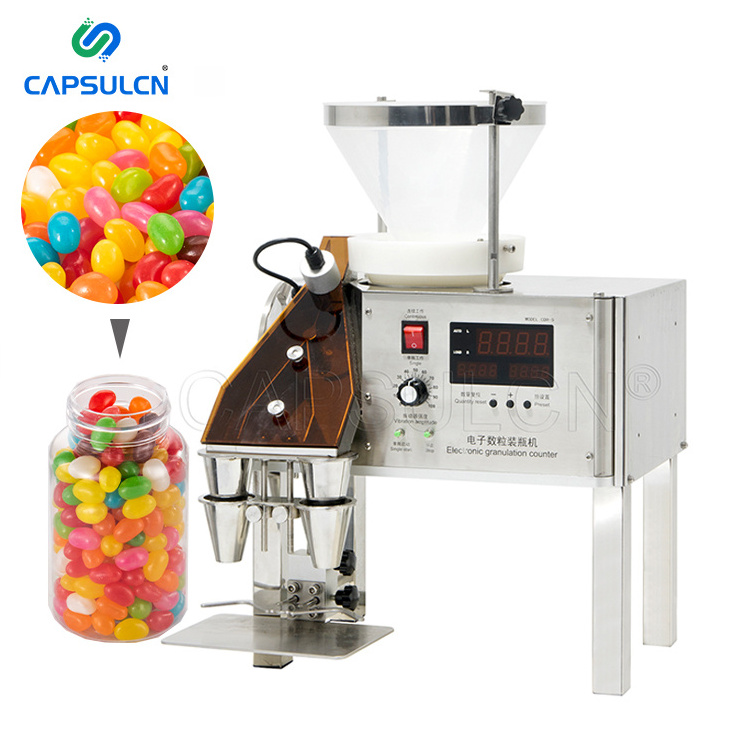

CDR-5A Semi-Automatic Capsule & Tablet Counting Machine
This machine has been designed and developed to count &
bottled
different shapes or size of products accurately like soft gel capsules, hard capsules, tablets, sugar coating, and film coating tablets, pills or similar products into containers or vials.
The machine can be adjusted to count capsules or tablets between 1-9999 pcs per bottle without changing spare parts.
Application:
Specifications
|
Model
|
CDR-5A
|
|
|
Size of Tablet
|
Max. Dia.12mm
|
|
|
Size of Bottle
|
15-500ML
|
|
|
Output
|
500-1500pcs/min
|
|
|
Power
|
100W
|
|
|
Voltage
|
110V 60Hz / 220V 50Hz
|
|
|
Weight
|
22kg
|
|
|
Dimensions
|
400x360x550mm
|
|
|
Don't Worry! We have several counting machine models. We can recommend you according to your requirement.
|
|
|
Details Images
Machine operation process：
Turn on the power switch
Pour in materials
Adjust the vibration
Turn the switch to "continuous work"
The
materials
does not move out from the hopper,Adjust the height of the hopper.
Adjust the discharging adjusting block to the right, and the opening of the discharging channel becomes smaller.
Choose the discharging hopper according to the size of bottle opening.（The machine is equipped with discharging hopper of 2 spediflications, 26mm and 22mm diameter）
This knob is for adjusting the height of the pallet.
The knob on the below is for adjusting the Y-shaped positioner.
Recommend Products
Why Choose Us
Pre-sale service
1.
Support product customization
, any requirements you need can be customized according to your requirements.
2. Sample test on our machine.
3. Provide business consulting and technical support, as well as a free professional packaging solution.
4. Make a machine layout for customers based on customers' factories.
After-sales service
1. Manual book.
2. Videos of installation, adjusting, setting, and maintenance, are available for you.
3. Online support, or face-to-face online communications, are available.
4.
The engineer overseas services
, are available. The tickets, visa, traffic, living, and eating, are for customers.
5. During the warranty year, without human-being broken, we will replace a new one for you.
