Quick Details
-
Dimension(L*W*H):
-
800*700*1100
-
Product name:
-
Plastic pellet machine
-
Final product:
-
Dry Granules
-
Application:
-
Waste plastic cutting
-
Power:
-
5.5kw
-
Color:
-
Red
-
Name:
-
Waste Pelletizer Machine Plastic Granulator
-
Keyword:
-
Pp Pe Plastic Pelletizing Machine
-
After-sales Service Provided:
-
1 YEAR
-
Function:
-
Make Recycle Plastic Granules
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Yuening
-
Weight (KG):
-
170
-
Dimension(L*W*H):
-
800*700*1100
-
Product name:
-
Plastic pellet machine
-
Final product:
-
Dry Granules
-
Application:
-
Waste plastic cutting
-
Power:
-
5.5kw
-
Color:
-
Red
-
Name:
-
Waste Pelletizer Machine Plastic Granulator
-
Keyword:
-
Pp Pe Plastic Pelletizing Machine
-
After-sales Service Provided:
-
1 YEAR
-
Function:
-
Make Recycle Plastic Granules

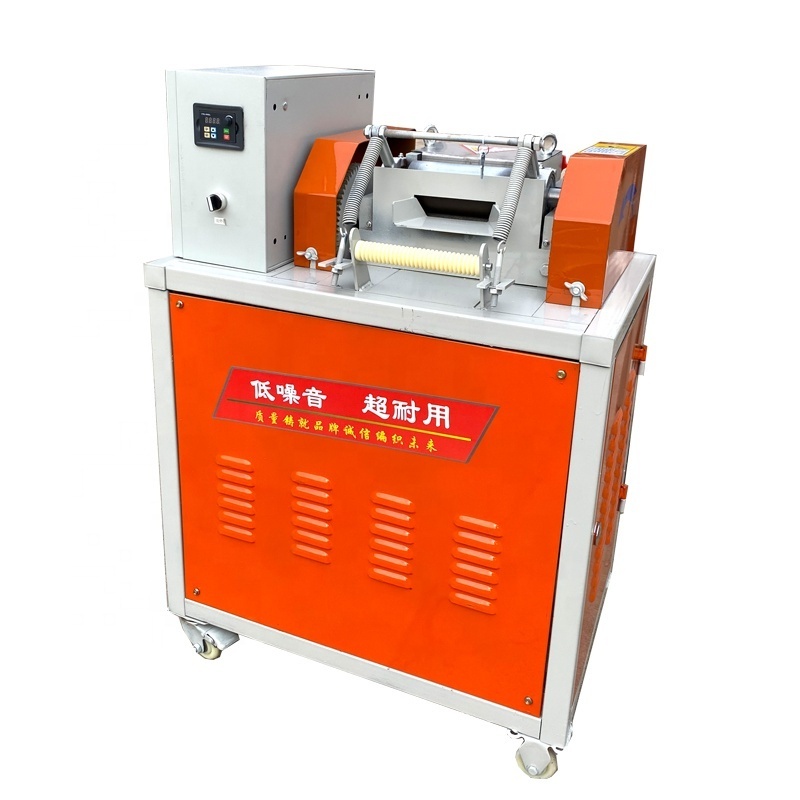

Product Picture
Product Details
The plastic grain cutting machine is composed of the base, the left and right wall panels, the motor, the transmission device, the press roller, the hob (cutting knife), the oil throwing ring (cutting knife), the screen bucket and other parts. The left and right wall panels are placed in the upper transmission device of the base, the pressure roller, hob, and knife are installed on the wall panel, and the motor and screen bucket are installed in the base.
Transmission device: composed of pulley and a series of gears. It transfers the rotation of the motor to the press roller, hob,oil throwing ring and sieve bucket to complete various actions.
Transmission device: composed of pulley and a series of gears. It transfers the rotation of the motor to the press roller, hob,oil throwing ring and sieve bucket to complete various actions.
PRODUCT SPECIFICATIONS
|
Model
|
YN-180
|
YN-200
|
YN-220
|
YN-240
|
|
Boundary dimension(mm)
|
800*700*1100
|
800*700*1200
|
850*850*1250
|
850*850*1320
|
|
Weight(kg)
|
170kg
|
200kg
|
230kg
|
250kg
|
|
Power（kw)
|
3kw
|
3kw
|
5.5kw
|
5.5kw
|
|
Voltage(v)
|
380v
|
380v
|
380v
|
380v
|
|
Width of hob(mm)
|
180mm
|
200mm
|
220mm
|
240mm
|
|
Number of hob teeth(qty)
|
18
|
18
|
20
|
26
|
|
Cut out the grain length(mm)
|
3mm
|
3mm
|
3mm
|
3mm
|
|
Maximum capacity(kg）
|
300kg
|
300kg
|
350kg
|
500kg
|
PRODUCT CONFIGURATION
Free spare parts
