Quick Details
-
Warranty(Year):
-
5-Year
-
Brand Name:
-
Liteharbor
-
Model Number:
-
WP-46
-
Place of Origin:
-
Guangdong, China
-
Light Source:
-
2835 SMD LED
-
Input Voltage(V):
-
220
-
Lamp Luminous Flux(lm):
-
80
-
Color Temperature(CCT):
-
2700K-6000K
-
Beam Angle(°):
-
180
-
Product Name:
-
Led Linear Light
-
Linear Light Voltage:
-
120V ~ 277V AC
-
Linear Light CRI:
-
80+/90+
-
Linear Light Dimmable:
-
NONE/0-10V
-
Linear Light Certification:
-
ETL listed
-
Linear Light Mounting:
-
Surface Mounted
-
Linear Light Warranty:
-
5-year
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Working Time (hours):
-
50000
-
CRI (Ra>):
-
80
Quick Details
-
Design Style:
-
Modern
-
Application:
-
Home Office
-
Body Material:
-
Aluminum
-
Warranty(Year):
-
5-Year
-
Brand Name:
-
Liteharbor
-
Model Number:
-
WP-46
-
Place of Origin:
-
Guangdong, China
-
Light Source:
-
2835 SMD LED
-
Input Voltage(V):
-
220
-
Lamp Luminous Flux(lm):
-
80
-
Color Temperature(CCT):
-
2700K-6000K
-
Beam Angle(°):
-
180
-
Product Name:
-
Led Linear Light
-
Linear Light Voltage:
-
120V ~ 277V AC
-
Linear Light CRI:
-
80+/90+
-
Linear Light Dimmable:
-
NONE/0-10V
-
Linear Light Certification:
-
ETL listed
-
Linear Light Mounting:
-
Surface Mounted
-
Linear Light Warranty:
-
5-year
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Working Time (hours):
-
50000
-
CRI (Ra>):
-
80
Specification

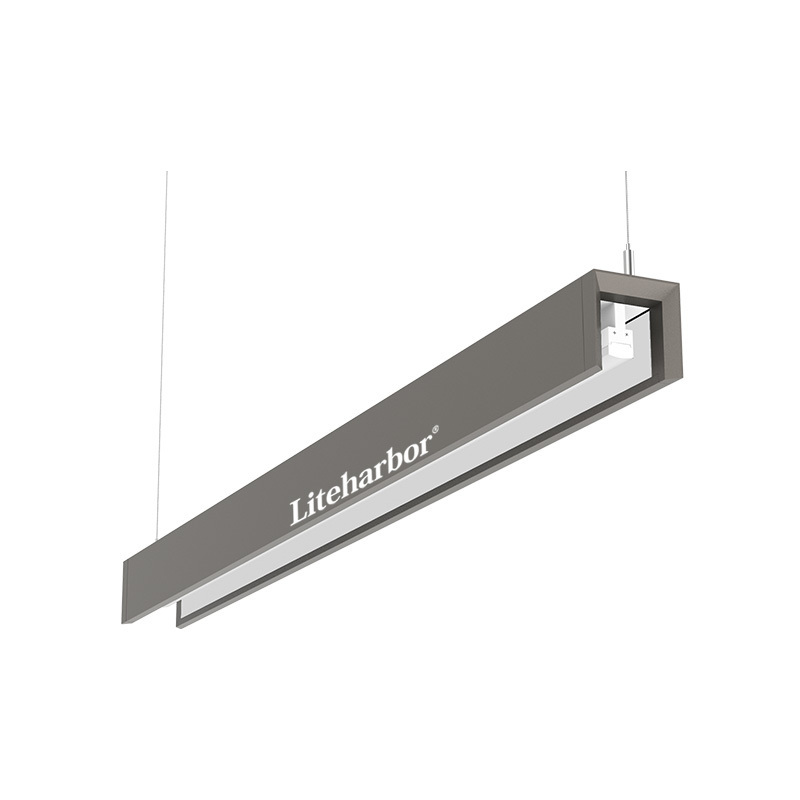

High End Surface Mounted 40W LED Wrap/Linear Light from Liteharbor Manufacturer
Features
WP-46 is a high lumen, thin, beautiful appearance, safe and reliable, convenient installation and easy maintenance linear light,
is an industrial grade luminaire which is ideal for retail, commercial and industrial applications.
Beam Angle: 180 °.
Available in 1x4 and 1x8 models.
Emergency system is available.
Standard finish is powder coat textured white. Optional silver, black or custom color paint finishes.
Standard dimming control: 0 ~ 10 V dimming.
IP Grade:IP44
Labels: ETL listed, conforms to UL Standard 1598 / 8750 and CSA Standard C22.2, Damp location.
Application: suit for the garage, warehouse, basement and car parks and other places to provide general illumination.
Warranty: 5-year limited warranty on LED and Driver.
Construction
Die formed, 22 gauge, cold rolled steel designed for high strength.End caps snap in for easy installation and maintenance.
In addition, the end cap can be used as a joint aligner for continuous row mounting.
Light Source
Using the energy-saving highlighting 2835 SMD LED light source.
Distributed LED array in a variety of lumen output packages.
LED color is available in 2700-6500K. Module is replaceable.
Mounting
Luminaires may be surface mounted or suspended, individually or in continuous row. Fixtures easily snap
together for long continuous rows.
Driver
Using isolation constant-current drive power, is the guarantee of security, stability and no flicking.
Features
WP-46 is a high lumen, thin, beautiful appearance, safe and reliable, convenient installation and easy maintenance linear light,
is an industrial grade luminaire which is ideal for retail, commercial and industrial applications.
Beam Angle: 180 °.
Available in 1x4 and 1x8 models.
Emergency system is available.
Standard finish is powder coat textured white. Optional silver, black or custom color paint finishes.
Standard dimming control: 0 ~ 10 V dimming.
IP Grade:IP44
Labels: ETL listed, conforms to UL Standard 1598 / 8750 and CSA Standard C22.2, Damp location.
Application: suit for the garage, warehouse, basement and car parks and other places to provide general illumination.
Warranty: 5-year limited warranty on LED and Driver.
Construction
Die formed, 22 gauge, cold rolled steel designed for high strength.End caps snap in for easy installation and maintenance.
In addition, the end cap can be used as a joint aligner for continuous row mounting.
Light Source
Using the energy-saving highlighting 2835 SMD LED light source.
Distributed LED array in a variety of lumen output packages.
LED color is available in 2700-6500K. Module is replaceable.
Mounting
Luminaires may be surface mounted or suspended, individually or in continuous row. Fixtures easily snap
together for long continuous rows.
Driver
Using isolation constant-current drive power, is the guarantee of security, stability and no flicking.
Specification
|
Power
|
40W
|
|
Voltage
|
120V ~ 277V
|
|
ACFrequency
|
50/60Hz
|
|
Dimmable
|
NONE/0-10VPower
|
|
CRI
|
80+/90+
|
|
Factor
|
>0.98
|
|
CCT
|
2700-6500K
|
|
Certification
|
ETL listed
|
|
Lifespan
|
50000 H
|
