Quick Details
-
Filling Accuracy:
-
±0.01ml
-
Voltage:
-
220v/110v 50Hz/60Hz
-
Place of Origin:
-
Henan
-
Dimension(L*W*H):
-
35*35*35CM
-
Weight:
-
15 KG
-
Product name:
-
Weighing Filling Machine
-
Keywords:
-
Water Filling Machine Bottling
-
Suitable for:
-
Paste Liquid Cream
-
Feature:
-
High Precision Filling Level
-
Control:
-
Button Control+Foot Pedal
-
Bottle Size:
-
0-40cm(Adjustable)
-
Material:
-
Stainless Steel
-
Filling range:
-
0.05kg-30kg
-
Certification:
-
CE ISO
-
After Warranty Service:
-
Video Technical Support\Online Support
Quick Details
-
Machinery Capacity:
-
36 L / Min
-
Packaging Material:
-
Plastic, Metal, Glass
-
Filling Material:
-
Beer, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
±0.01ml
-
Voltage:
-
220v/110v 50Hz/60Hz
-
Place of Origin:
-
Henan
-
Dimension(L*W*H):
-
35*35*35CM
-
Weight:
-
15 KG
-
Product name:
-
Weighing Filling Machine
-
Keywords:
-
Water Filling Machine Bottling
-
Suitable for:
-
Paste Liquid Cream
-
Feature:
-
High Precision Filling Level
-
Control:
-
Button Control+Foot Pedal
-
Bottle Size:
-
0-40cm(Adjustable)
-
Material:
-
Stainless Steel
-
Filling range:
-
0.05kg-30kg
-
Certification:
-
CE ISO
-
After Warranty Service:
-
Video Technical Support\Online Support

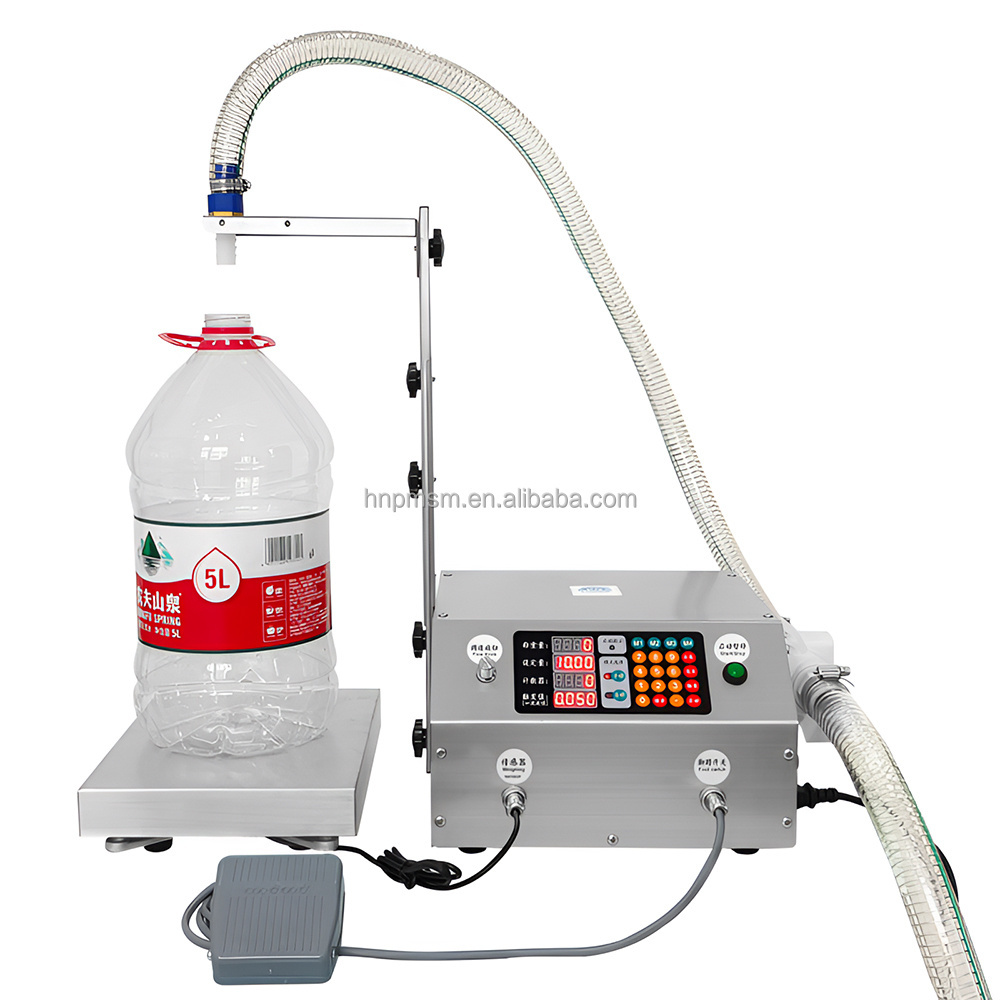

Weighing Peristaltic Pump Liquid Automatic Quantitative Dispensing High Precision Filling Machine
The Machine Functions:
- Panel display: weight, setting quantity, counter, trigger value and flow rate value are displayed by LED digital tube.
- Basic functions: real-time weighing, overload alarm, automatic counting, automatic start, automatic speed reduction, automatic stop, data storage, flow rate adjustment, weight calibration, quantitative filling according to time, factory setting recovery and other functions.
- Each model has an English version, with foreign plugs and English instructions.
Difference between diaphragm pump, gear pump and peristaltic pump:
- Diaphragm pump: pump is pumped by the suction of the inner membrane of the pump chamber, which is similar to the pumping principle of a syringe. The liquid will pass through the pump chamber.
- Gear pump: the liquid is transported by two gears rotating, which can be understood as two gears pulling the liquid out, and the liquid will pass through the pump cavity and gear
- Peristaltic pump: water is pumped by squeezing the water pipe, that is, the roller squeezes the hose from the outside to squeeze the liquid out, and the liquid only passes through the water pipe. The advantages are: clean and pollution-free, easy to change pipes and clean. The disadvantages are: high power consumption, low efficiency, slow speed, large jitter and high price.
| Angle Show |
1. Lead time
About 1 to 5 days for spot goods and 14 days for customized items, also depending on quantity.
2. Package
(1) Pack all goods according to customers' requirements, like putting item bar code, FBA label, and so on.
(2) Standard export carton (can be wrapped with non-woven bag)
3. Delivery
(1) By courier, air, sea, railway or land. If necessary, DDP can be handled.
(2) Shipping method is affordable and stable. We have advantageous logistics to USA, Canada, European coutries, Southeast Asia and
some African countries. Best shipping way will be suggested according to final gross weight and volume.
(3) Global DDP logistics service to FBA warehouse can be provided.
