Quick Details
-
Filling Accuracy:
-
±1%
-
Applicable Industries:
-
cosmetic, food, chemical
-
Voltage:
-
220V/110V can be customized
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HUAJIE
-
Dimension(L*W*H):
-
Can be customized
-
Weight:
-
500 KG
-
Product name:
-
automatic bottle filling machines automatic shampoo filling machine
-
Function:
-
Filling Capping Labeling
-
Usage:
-
Filling Capping Labeling Packaging
-
Filling speed:
-
1000bottle-5000bottle/hour
-
Material:
-
Stainless Steel 304/316
-
Filling volume:
-
25-250ML. 50-500ML.100-1000ML.250-2500ML;500-5000ml
-
Advantage:
-
15 Years Experiences
-
Filling nozzles:
-
2/4/6/8/10/12(customized)
-
Control:
-
PLC+ Touch Screen
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Machinery Capacity:
-
4000BPH, 6000BPH
-
Packaging Material:
-
Plastic, Metal, Glass, Wood
-
Filling Material:
-
Milk, Water, Oil, Juice, shampoo, liquid soap, detergent, gel, cosmetic, chemical, food
-
Filling Accuracy:
-
±1%
-
Applicable Industries:
-
cosmetic, food, chemical
-
Voltage:
-
220V/110V can be customized
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HUAJIE
-
Dimension(L*W*H):
-
Can be customized
-
Weight:
-
500 KG
-
Product name:
-
automatic bottle filling machines automatic shampoo filling machine
-
Function:
-
Filling Capping Labeling
-
Usage:
-
Filling Capping Labeling Packaging
-
Filling speed:
-
1000bottle-5000bottle/hour
-
Material:
-
Stainless Steel 304/316
-
Filling volume:
-
25-250ML. 50-500ML.100-1000ML.250-2500ML;500-5000ml
-
Advantage:
-
15 Years Experiences
-
Filling nozzles:
-
2/4/6/8/10/12(customized)
-
Control:
-
PLC+ Touch Screen
-
Marketing Type:
-
Ordinary Product
Product Description

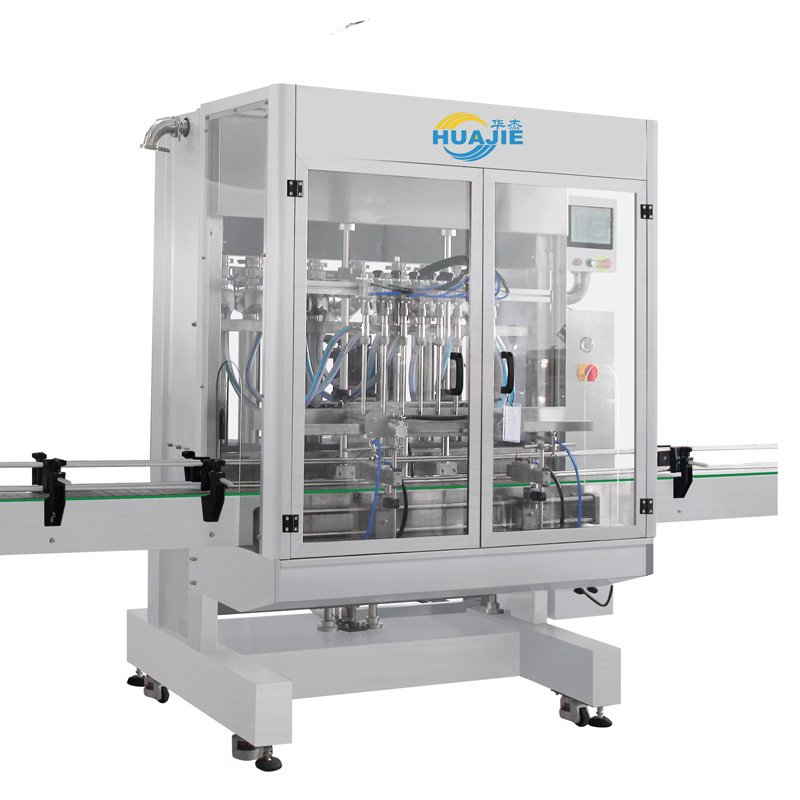

Automatic Servo Piston Filling Machine is a high-tech product researched and developed by our company. It is suitable for products of various viscosity such as water injection, semi-fluid and ointment etc,. It is widely applicable for filling of products in such industries as food, cosmetics, grease, daily chemical industry, detergent, pesticide and chemical industry etc.
By adopting straight line filling model, it can be used to fill solutions of different types without the need of adding any spare parts.
Filling Nozzles
2/4/6/8/10 Customizable no-drop filling nozzles. Different sizes to fit different bottles, easy to be assembled.All the material contact part is made of stainless steel 316L.
2/4/6/8/10 Customizable no-drop filling nozzles. Different sizes to fit different bottles, easy to be assembled.All the material contact part is made of stainless steel 316L.
Various Filling Range
10-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml. With adjustable speed conveyor belt, and high strength stainless steel frame, firm and wear-used.
10-150ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml. With adjustable speed conveyor belt, and high strength stainless steel frame, firm and wear-used.
Servo motor control filling system
TECO Servo piston driven motor to ensure higher filling accuracy and more steady performance. Easier to adjust the filling volume,just input via touch screen.
Specification
|
Filling Nozzles
|
1 nozzle
|
2 nozzles
|
4 nozzles
|
6 nozzles
|
8 nozzles
|
10 nozzles
|
12 nozzles
|
||||||
|
Filling Speed
|
20BPM
|
25BPM
|
30BPM
|
40BPM
|
50BPM
|
60BPM
|
70BPM
|
||||||
|
Filling Volume
|
50-150ml/10-250ml/50-500ml/100-1000ml/250-2500ml/500-5000ml
|
|
|
|
|
|
|
||||||
|
Filling Accuracy
|
±0.5-1%
|
|
|
|
|
|
|
||||||
|
Power Voltage
|
220V/380V/410V/440V, 60Hz, 3 Phase
|
|
|
|
|
|
|
||||||
|
Air Consumption
|
0.5-0.7Mpa
|
|
|
|
|
|
|
||||||
|
Remark
|
1. The filling speed based on 500ml/bottle water.2. More options can be customized according to your requirements.
|
|
|
|
|
|
|
||||||
