Quick Details
-
Optical Resolution:
-
5 mil
-
Brand Name:
-
WCMI
-
Place of Origin:
-
China
-
Product name:
-

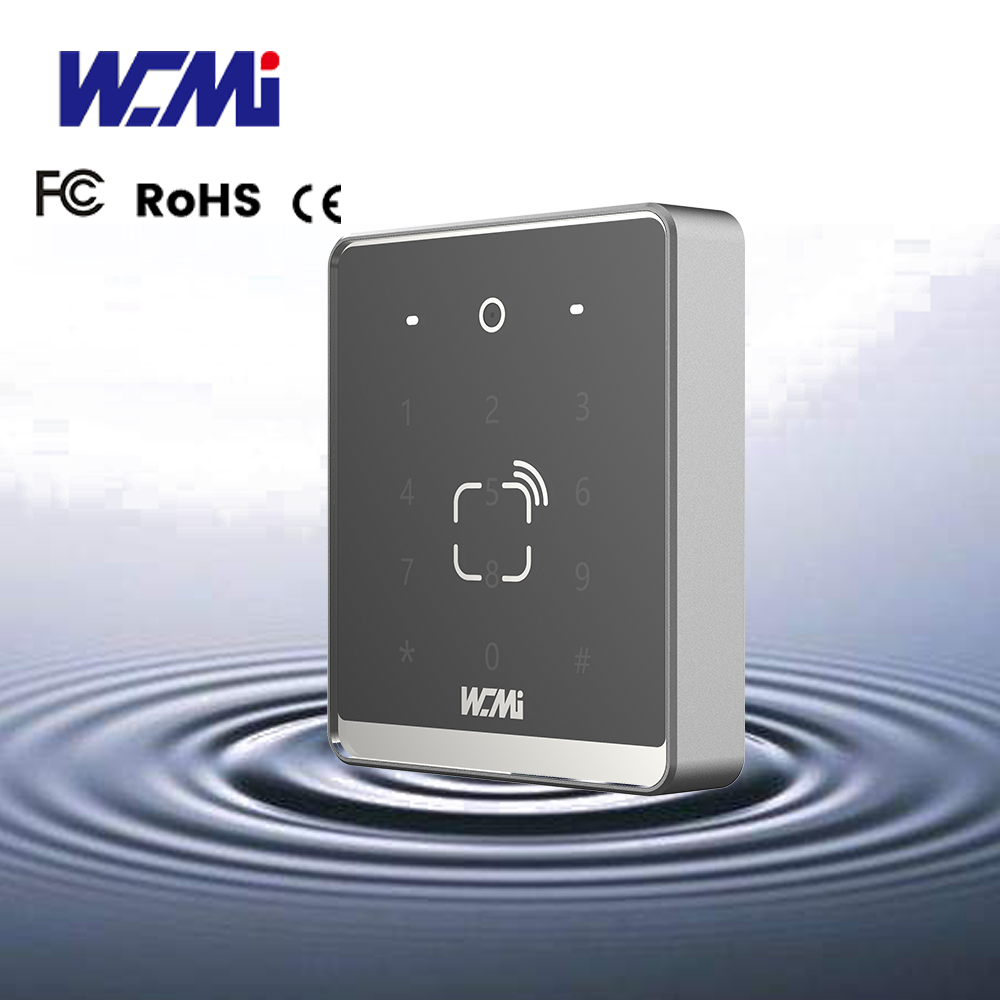

Access Control Barcode Scanner WIth Key
-
Image (Pixels) Sensor:
-
640 X 480 CMOS @ 30fps
-
Material:
-
Stalinite+PC
-
Precisions:
-
1d ≥5mil / 2d ≥10mil
-
Language Supported:
-
English/Customized
-
Decoding capability:
-
ISO14443A/B, ID, NFC , Mifare Card
-
Dimensions:
-
86mm*103mm*20mm
-
Weight:
-
130g
-
Interface:
-
Wiegand,RS232,RS485,USB
-
Storage temperature:
-
-40℃ ~ 80℃
Quick Details
-
Type:
-
Business Card Scanner
-
Scan Element Type:
-
CMOS
-
Max Paper Size:
-
A4
-
Optical Resolution:
-
5 mil
-
Brand Name:
-
WCMI
-
Place of Origin:
-
China
-
Product name:
-
Access Control Barcode Scanner WIth Key
-
Image (Pixels) Sensor:
-
640 X 480 CMOS @ 30fps
-
Material:
-
Stalinite+PC
-
Precisions:
-
1d ≥5mil / 2d ≥10mil
-
Language Supported:
-
English/Customized
-
Decoding capability:
-
ISO14443A/B, ID, NFC , Mifare Card
-
Dimensions:
-
86mm*103mm*20mm
-
Weight:
-
130g
-
Interface:
-
Wiegand,RS232,RS485,USB
-
Storage temperature:
-
-40℃ ~ 80℃
Product Description
|
Product Parameters
|
|
|
||
|
General
|
Type
|
Touch Key Access Control Scanner
|
||
|
|
Product model
|
AC8632
|
||
|
|
Brand Name
|
WCMI
|
||
|
|
Products Status
|
Stock
|
||
|
|
Place of Origin
|
Tianjin,China
|
||
|
|
Private Model
|
Yes
|
||
|
|
Warranty(Year)
|
15 months
|
||
|
|
After-sales Service
|
Return and Replacement; Free spare parts
|
||
|
|
Material
|
Stalinite+PC
|
||
|
|
Certification
|
CE、RoHS、FCC
|
||
|
|
Language Supported
|
English/Customized
|
||
|
Scan code performance
|
Image (Pixels) Sensor
|
640 X 480 CMOS @ 30fps
|
||
|
|
View Angle
|
Horizontal 63°, Vertical 51°
|
||
|
|
Decoding capability
|
ISO14443A/B， ID、 NFC 、 Mifare Card
|
||
|
|
Identified Distence
|
30-230mm（6inch screen）
|
||
|
|
Scan Angle
|
Rotation: 360°, Pitch: ±60°, Deflection: ±50°
|
||
|
|
Precisions
|
1d ≥5mil / 2d ≥10mil
|
||
|
|
Working mode
|
Manual, Automatic, Induction
|
||
|
|
Symbol Contrast
|
≥25%
|
||
|
|
Scan Code Range
|
Default Open：EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、
Code39、Code93、CodaBar、QR Code、PDF417、DataMatrix Default Close：Interleaved 2 of 5、Industrial 25、Matrix 2 of 5、Code11、MSI Plessey 、RSS-14、RSS-Limited、RSS-Expanded |
||
|
|
Weight
|
130g
|
||
|
|
Dimensions
|
86mm*103mm*20mm
|
||
|
|
Interface
|
Wiegand，RS232，RS485
|
||
|
|
Prompt Mode
|
Green prompt， Buzzer
|
||
|
|
Voltage
|
DC 12V(5V-30V)
|
||
|
|
Current
|
<160mA 12V
|
||
|
|
Operating temperature
|
-20℃ ~ 60℃
|
||
|
|
Storage temperature
|
-40℃ ~ 80℃
|
||
|
|
Environmental light
|
0-80000Lux
|
||
|
|
Electrostatic protection
|
Contact discharge ±6KV, air discharge ±12KV
|
||
|
|
The level
|
Positive IP54
|
||
|
|
Operating Humidity
|
5%RH~95%RH (Non-condensing)
|
||
Company Introduction
Tianjin Wavecreating Microelectronics Limited Company is one of the leading professional R&D manufacturers for barcode scanning products in China. It is located in Tianjin Economic and Technological Development Area and has a registered capital of 10 million yuan.
The company's main products: wired and wireless barcode scanner, omni-directional barcode scanner, desktop barcode scanner, access control products, wearable barcode scanning product，barcode scanner engine, algorithm licenses, etc. It can provide you with related solutions and services from chips to finished products，improve the efficiency and quality of processes in retail, manufacturing, transportation and logistics, site security, healthcare and service industries.
We sincerely look forward to win-win cooperation with you!
The company's main products: wired and wireless barcode scanner, omni-directional barcode scanner, desktop barcode scanner, access control products, wearable barcode scanning product，barcode scanner engine, algorithm licenses, etc. It can provide you with related solutions and services from chips to finished products，improve the efficiency and quality of processes in retail, manufacturing, transportation and logistics, site security, healthcare and service industries.
We sincerely look forward to win-win cooperation with you!
Our Advantages
Tianjin wavecreating Micro Intelligennt Technology CO., Ltd.
continuously insist on defining products from the chip, taking customized chips, image recognition algorithms and customized services as our core competency and consistently strive to improve it.
The company has more than 60 employees, including 36 R&D staff, 97% of whom have a bachelor’s degree or above, 9 masters, and 2 doctors. Currently，It has obtained 7 invention patents, 4 utility model patents and 10 appearance patents. The company has passed ISO9001 and ISO1400 1 certifications, all of the products can meet RoSH, REACH, CE, and FCC certification requirements, It has a perfect customer response mechanism in 24 hours to provide you with first-class after-sales service.
Related Products
Certifications
Packing&Shipping
FAQ
1,Do you have the items in stock?
The most of products are in stock.We can send the goods out within 7 days after payment received.For the goods are out of stock,production time is about 7-10 days.
3,If the goods are damaged badly,who is responsible for it?
We will be responsible for the damaged goods when it is damaged during transport,and we can exchange the new goods for you.
4,Can you make OEM or ODM for products?
OEM and ODM products is available for customer,as long as customer meet the MOQ.
5,What about MOQ?
For production,we can accept sample order firstly,so there is not limit for MOQ
6,Besides the English language,do your printers support other languages?what operation system they backup?
Yes,our printer not only supports English language,but also Russian,Spanish,Portuguese ect. 48 different languages available,and it backups IOS,Android,Windows,Linux,Opos operation systems.
8,What warranty and after-sale service do you offer?
Each production will have two year (24 months) warranty. Free components will be offered for repair in warranty period,if the issue caused by non-artificial damages.
The most of products are in stock.We can send the goods out within 7 days after payment received.For the goods are out of stock,production time is about 7-10 days.
2. What’s the warranty policy for the barcode scanners?
We provide 24 months maintenance warranties. During warranty, free and quick advice for repairing, free spare parts if it is necessary for replacement or new barcode scanners replacement in the next order.
3,If the goods are damaged badly,who is responsible for it?
We will be responsible for the damaged goods when it is damaged during transport,and we can exchange the new goods for you.
4,Can you make OEM or ODM for products?
OEM and ODM products is available for customer,as long as customer meet the MOQ.
5,What about MOQ?
For production,we can accept sample order firstly,so there is not limit for MOQ
6,Besides the English language,do your printers support other languages?what operation system they backup?
Yes,our printer not only supports English language,but also Russian,Spanish,Portuguese ect. 48 different languages available,and it backups IOS,Android,Windows,Linux,Opos operation systems.
7.why should you buy from us not from other suppliers?
We have much experience in the development barcode scanner and all in one scanning products. Our products range incluseds wired
and wireless barcode scanner, omni-directional barcode scanner,，barcode scanner engine, algorithm
licenses . For the small quantity project, we are availble for the fast feedback and customized.
We have much experience in the development barcode scanner and all in one scanning products. Our products range incluseds wired
and wireless barcode scanner, omni-directional barcode scanner,，barcode scanner engine, algorithm
licenses . For the small quantity project, we are availble for the fast feedback and customized.
8,What warranty and after-sale service do you offer?
Each production will have two year (24 months) warranty. Free components will be offered for repair in warranty period,if the issue caused by non-artificial damages.
