- Product Details
- {{item.text}}
Quick Details
-
Type:
-
Air Source Heat Pump
-
Place of Origin:
-
Guangdong, China (Mainland)
-
Brand Name:
-
SMT
-
Model Number:
-
SMT-250YC
-
Voltage:
-
380V/50HZ/3PH
-
Compressor:
-
Copeland
-
Output water temperature:
-
30°C~35°C
-
Refrigerant:
-
R22
Quick Details
-
Warranty:
-
2 years
-
Application:
-
Hotel, Commercial, Household
-
Power Source:
-
Electric
-
Type:
-
Air Source Heat Pump
-
Place of Origin:
-
Guangdong, China (Mainland)
-
Brand Name:
-
SMT
-
Model Number:
-
SMT-250YC
-
Voltage:
-
380V/50HZ/3PH
-
Compressor:
-
Copeland
-
Output water temperature:
-
30°C~35°C
-
Refrigerant:
-
R22

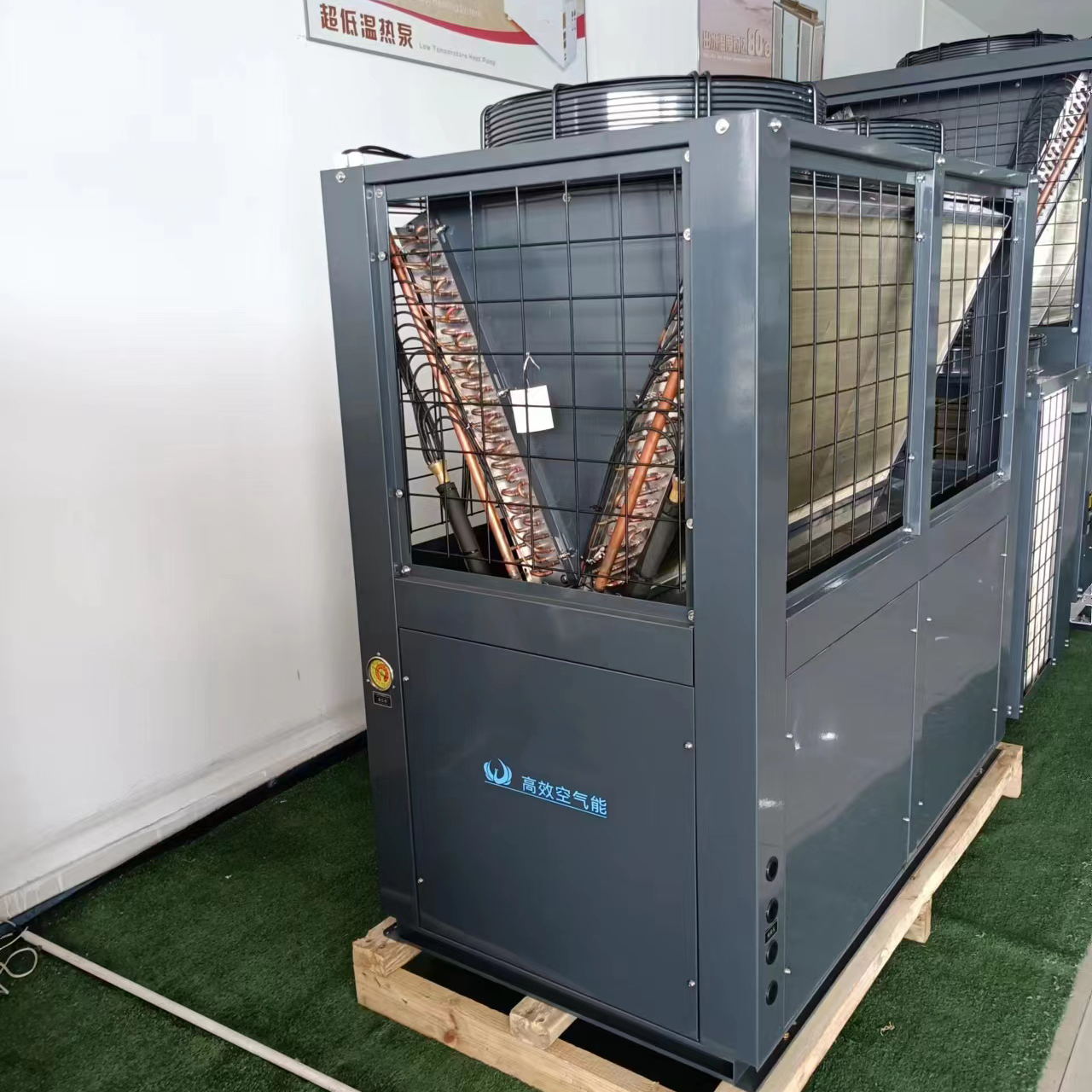

EU heating system air source heat pump air to water commercial central heat pump water heater
The central heating system using commercial air source heat pumps can provide a relatively comfortable indoor temperature and a large heating area in a small space. In some large communities or shopping malls, using commercial air source heat pump systems for heating can improve Heating efficiency and reduced operating costs while maintaining indoor temperatures comparable to central heating.
Household heat pumps can be divided into two types: one is an air source heat pump water heater, and the other is an air source heat pump air conditioner.
The air source heat pump water heater is mainly composed of a water tank, a fan and a compressor. Compared with other household heating equipment, air source heat pump water heater has the advantages of energy saving, safety, comfort and environmental protection. It is understood that the household air source heat pump water heaters currently used in China are generally imported from abroad, and there is still a certain gap compared with foreign technologies.
underfloor heating system pump
The air source heat pump air conditioner is driven by electric energy. Under the action of the compressor, the intermediate medium (refrigerant) is compressed to produce a low-temperature and low-pressure refrigerant, which is then released into the indoor air through the condenser.
Due to the use of low-temperature and low-pressure refrigerant as the refrigerant, the air conditioner will not produce harmful gas (carbon dioxide) that pollutes the environment and affects human health, and can also realize the recycling of low-temperature and low-pressure refrigerant, thereby reducing environmental pollution.
When the air source heat pump is used in cold areas, the following items should be paid attention to:
1. When the air source heat pump is working, do not directly water or shower with hot water.
2. The water temperature should not be too high. If the water temperature is too high, the compressor will start frequently, which will affect the service life of the unit.
3. Always check whether there is air in the water tank. When the air source heat pump works in winter, pay attention to whether there is water in the water tank.
Product Description
Specification
|
Product model
|
SMT-250YC
|
|
|
|
Recommended pool capacity (m³)
|
125
|
|
|
|
Air temperature/water 24°C/26°C
|
Heat capacity (kw)
|
100
|
|
|
|
Input power (kw)
|
20
|
|
|
|
Current (A)
|
38
|
|
|
Air temperature/water 15°C/26°C
|
Heat capacity (kw)
|
90
|
|
|
|
Input power (kw)
|
19.8
|
|
|
|
Current (A)
|
36.6
|
|
|
Air temperature/water 7°C/26°C
|
Heat capacity (kw)
|
77
|
|
|
|
Input power (kw)
|
18.8
|
|
|
|
Current (A)
|
33.6
|
|
|
Power supply specification
|
380V/50Hz
|
|
|
|
Compressor
|
Copeland
|
|
|
|
Refrigerant
|
R22
|
|
|
|
Sheet metal material
|
Galvanized plate spraying
|
|
|
|
Water pressure drop (kpa)
|
35
|
|
|
|
Circulating water flow (ton/hour)
|
50~60
|
|
|
|
Water pipe interface (inch)
|
G3"
|
|
|
|
Manic dB(A)
|
≤68
|
|
|
|
Product size L/W/H(mm)
|
2000x1100x2100
|
|
|
|
Package Size L/W/H(m)
|
2000x1150x2220
|
|
|
|
Net weight/gross weight (kg)
|
650/680
|
|
|
