Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
IB22U-P10ZJ-E-N
-
Product Name:
-
Metal push button switch
-
Mounting Hole Size:
-
22mm
-
Switch Combination:
-
1NO
-
Head Type:
-
Flat Head
-
Terminal number:
-
4 Screw Terminal
-
Enclosure Material:
-
Brass nickel/Stainless steel
-
Protection class:
-
IP65/IP67
-
Operation type:
-
Momentary/Latching
-
Usage:
-
Electronic Product
-
Switch Type:
-
22mm push button switch
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
16A
-
Max. Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
IB22U-P10ZJ-E-N
-
Product Name:
-
Metal push button switch
-
Mounting Hole Size:
-
22mm
-
Switch Combination:
-
1NO
-
Head Type:
-
Flat Head
-
Terminal number:
-
4 Screw Terminal
-
Enclosure Material:
-
Brass nickel/Stainless steel
-
Protection class:
-
IP65/IP67
-
Operation type:
-
Momentary/Latching
-
Usage:
-
Electronic Product
-
Switch Type:
-
22mm push button switch
-
Certification:
-
CE
Products Description

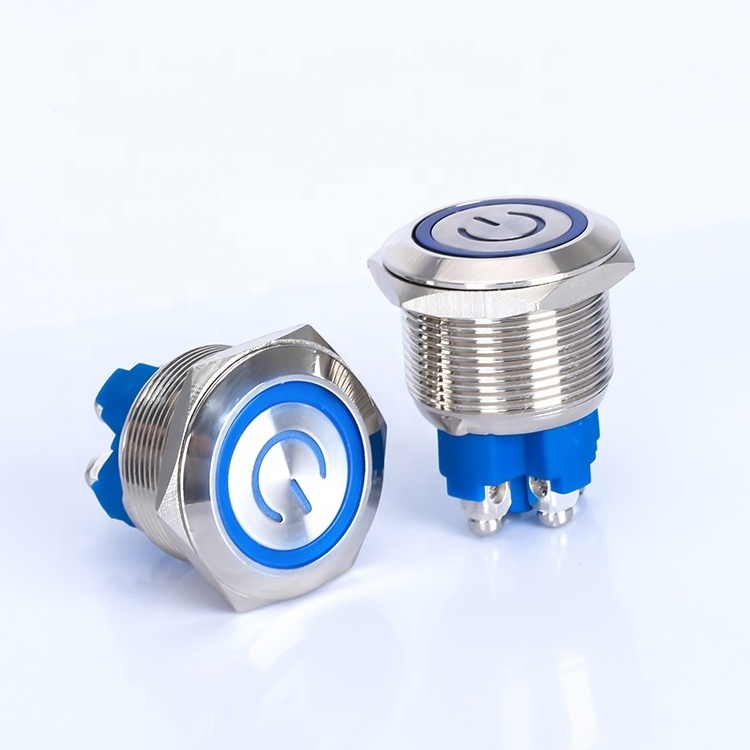

Normally Open PUSH BUTTON SWITCH:
Momentary/ Latching push-button switch. Mounting Hole: 16mm/19mm/22mm is optional
With led, there is 4 screw terminal
Without led, there is 2 screw terminal
EASY TO CONNECT & DURABLE:
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
WATERPROOF MARINE SWITCH:
This momentary/latching push button switch can be used in a wet environment, no worry about rain or water anymore, which can be used outdoor and rainy day.
WIDE APPLICATION：
This 12V/24V push button switch is suitable for motorized vehicles of motor starting, power starting devices, and can also be an access control button.
Product Paramenters
|
Model Specification
|
|
|
|
Model NO.
|
22mm push button switch
|
|
|
Mounting diameter
|
22mm
|
|
|
Head shape
|
Flat Head
|
|
|
Switch Combination
|
1NO
|
|
|
Operation type
|
Latching
|
|
|
Rated Current
|
5A 250VAC
|
|
|
Illuminating type
|
LED Illuminated
|
|
|
Illuminating color
|
Red/yellow/blue/green/white
|
|
|
Lamp voltage
|
12V/24V
|
|
|
Shell material
|
Stainless steel
|
|
|
Contact Resistance
|
50mΩ max
|
|
|
Insulation Resistance
|
1000MΩ Min
|
|
|
Dielectric Intensity
|
2000VAC
|
|
|
Accessories
|
Nut, Rubber Waterproof O-ring
|
|
