Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300x900mm
-
Cutting Thickness:
-
0-25mm
-
Control Software:
-
Ruida
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UTECH
-
Weight (KG):
-
650 KG
-
Working area:
-
1300*900mm(Can be customized)
-
Laser tube type:
-
Sealed CO2 glass laser tube
-
laser tube cooling type:
-
S&A Industrial Water Chiller
-
Cutting speed:
-
0-24000mm/min
-
Working table:
-
Blade table ( Alternative Honeycomb table )
-
Optional parts:
-
UP/Down working table, Rotary, Auto focus
-
Linear guide:
-
ABBA square rail (sub-brand)
-
Laser control system:
-
Ruida
-
Driving system:
-
Stepper Motor
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-24000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300x900mm
-
Cutting Thickness:
-
0-25mm
-
Control Software:
-
Ruida
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UTECH
-
Weight (KG):
-
650 KG
-
Working area:
-
1300*900mm(Can be customized)
-
Laser tube type:
-
Sealed CO2 glass laser tube
-
laser tube cooling type:
-
S&A Industrial Water Chiller
-
Cutting speed:
-
0-24000mm/min
-
Working table:
-
Blade table ( Alternative Honeycomb table )
-
Optional parts:
-
UP/Down working table, Rotary, Auto focus
-
Linear guide:
-
ABBA square rail (sub-brand)
-
Laser control system:
-
Ruida
-
Driving system:
-
Stepper Motor

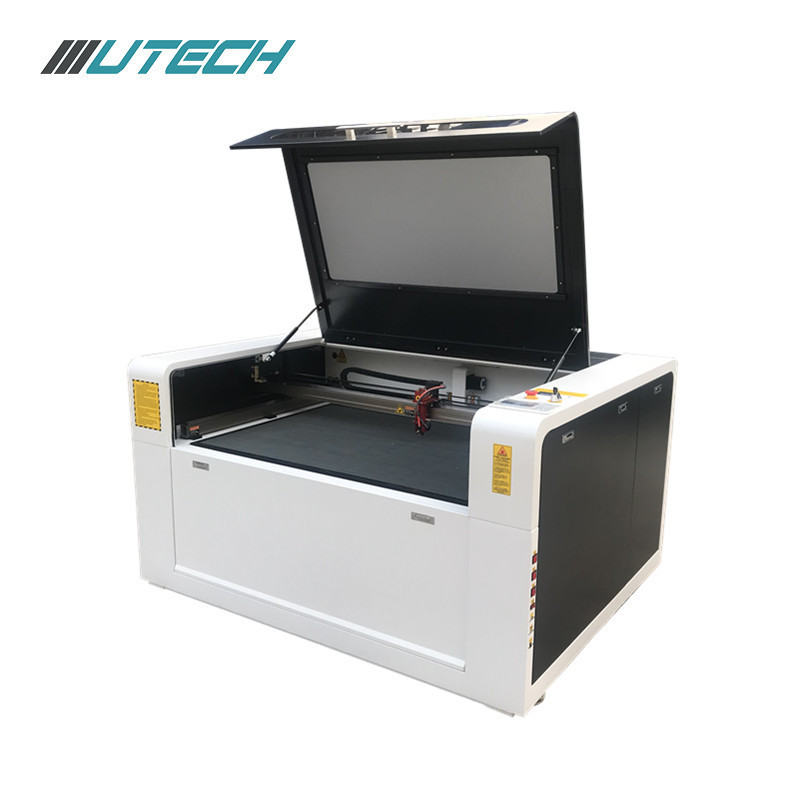

Jewelry laser cutting machine laser engraving machine for jewellery silver gold
Applicable materials:
UT-1390 laser machine is equiped with co2 laser tube, can be used for cutting nonmetal materials such as acrylic, plastic, paper, wood, plywood, MDF, fabric, leather, etc; and can engrave on nonmetal materials such as stone, glass, acrylic, wood, bamboo, rubber, leather, etc.
Applicable industry:
Be applied in garment, leather, cloth toys, computer embroidery cutting, mould, crafts, bamboo and wood, advertising and building decoration, packaging and printing, paper products, etc.
|
Model |
UT-1390 |
|
| Working area | 1300*900mm(Can be customized) | |
| Laser power | Reci 80w/100w/130w/150w | |
| Laser tube type | Sealed CO2 glass laser tube | |
| laser tube cooling type | S&A Industrial Water Chiller | |
| Cutting speed | 0-24000mm/min | |
| Repositioning accuracy | <0.01mm | |
| Working voltage | AC110v/220v 50Hz/60Hz | |
| Consuming power | <1000w | |
| Laser control system | Ruida | |
| Driving system | Stepper motor | |
| Working table | Blade table ( Alternative Honeycomb table ) | |
| Linear guide | ABBA square rail (sub-brand of SKF) | |
| Lens and mirror | American Mirrors | |
| Graphic format supported | DXF,AI,PLT,DST,DSB,BMP,JPG,GIF,PNG,MNG | |
|
Software supported |
CorelDraw, Photoshop, AutoCAD |
|
|
Minimum letter size |
English:1mm x1mm; Chinese: 2mm x 2mm |
|
|
Running environment |
Temperature: 0°c-45°c; humidity: 5%-95% |
|
|
Optional parts |
UP/Down working table, Rotary, Auto focus |
|
|
auxiliary device |
Air Pump, Exhaust Fan, Water Chiller, Tool box |
|
|
cover |
All acrylic cover (you can see machine working clearly) |
|
|
Another features |
Red light point, Water protection switch, Open cover protection, Galvanized sheet machine frame |
|
2. Motorized UP/Down worktable +Auto-Focus device +Red Light pointer.
3. The Optical Lens adopt high intensity gilding silicon and non sphere focusing lens, So the Lens. Can endure the scrubs and the high temperature and no need no be often changed, thus reduce the resuming cost. The focusing diameter of the non sphere lens is small, and make the cutting effect better.
4. High Quality Laser tube provides the Strong beam and Long service life.
5. Adopt DSP Control System, and moves smoothly. With modularized and unified design and Installment, it has the better ability of anti-interference, so it is easy to inspect and replace the spare parts.
6. The Laser tube adopts compulsive Water Cooling System, Water Pump or Cooling Chiller can control the Temperature automatically.
7. Applicable for the modes like AI, CDR, BMP, DST, DSB and PXF etc.
8. Easily Moving universal Wheel.
9. English Control Panel.
1. Packing wooden case is after fumigation treatment. Needn’t timber inspection,saving shipping time.
2. All the spare parts of the machine were covered by some soft materials, mainly avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3. The outmost is wooden case with fixed formwork.
4. The bottom of the wooden case has firm iron jack, convenient to handling and transport.
