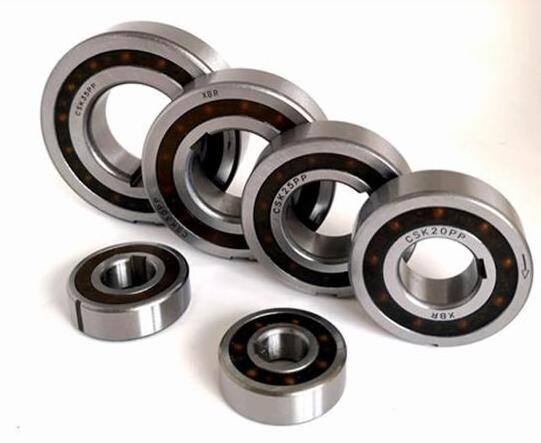

One way bearing cam clutch bearing CSK20PP/CSK20P/CSK20-2RS/CSK20

The CSK series free wheel include CSK ,CSK…P, CSK..PP type. CSK…P has the same construction and outside dimensions as type CSK, but has a keyway on the inner race, The type of PP have a keyway on both inner race and outer race.

The CSK series one way cluth bearings have be used widely in washing machine, grass cutter, printing machine, textile machinery and food machinery etc.

CSK Series
Type CSK is a sprag type freewheel integrated into a 62 series ball bearing (except sizes 8 and 40). It is bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm. The use of additional "nylos" type seals is recommended especially when the working temperature exceeds 50°C. Oil bath lubrication is also possible.
All the CSK versions are equipped with "form chromed sprags". This process increases several times the overrunning life time. Torque transmission is ensured by a press fit assembly into a rigid outer housing with N6 tolerance, and onto a shaft with n6 tolerance. The initial bearing radial clearance is set at C5, and is reduced if using the press fit as specified.

CSK..P(PP) Series
Type CSK..P(PP) is sprag type freewheels integrated into 62.. series ball bearings (except size 40). They are bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm.
The use of additional “nylo n ” type seals is recommen-ded especially when the working temperature exceeds 50°C. Oil bath lubrication is also possible.
In addition to the basic CSK model, type CSK..P features a keyway on the inner race. For this reason it can be keyed to a shaft to k6 tolerance. The outer race must still be pressed into a rigid housing to N6 tolerance.

CSK..PP features a keyway on both the inner and outer race. The recommended mounting tolerances are h6 on the shaft and H6 in a rigid housing. Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C.

Application

CSK series one way (direction) bearing consists of a standard ball bearing, in-built special snap block and cage, widely used in mining machinery, washing machine, hydraulic machinery, printing machines, textile machinery, conveyor systems.
Freewheel-Clutches - Examples
Important applications
conveyers (back stopping)
conveyers (speed compensation)
copiers (paper feeding)
furniture production (glue roller drive)
high voltage switches
mixers (safety clutch)

One Way Clutch Bearing CSK8 CSK12 CSK15 CSK17 CSK20 CSK25 CSK30 CSK35 CSK40

One Way Clutch Bearing CSK8P CSK12P CSK15P CSK17P CSK20P CSK25P CSK30P CSK35P CSK40P

One Way Clutch Bearing CSK8PP CSK12PP CSK15PP CSK17PP CSK20PP CSK25PP CSK30PP CSK35PP CSK40PP

One Way Clutch Bearing BB15 BB17 BB20 BB25 BB30 BB35 BB40

CSK8PP CSK12PP CSK15PP CSK17PP CSK20PP CSK25PP CSK30PP CSK35PP CSK40PP

One Way Clutch Bearing CSK8P CSK12P CSK15P CSK17P CSK20P CSK25P CSK30P CSK35P CSK40P

CSK8PP CSK12PP CSK15PP CSK17PP CSK20PP CSK25PP CSK30PP CSK35PP CSK40PP

One Way Clutch Bearing CSK8 CSK12 CSK15 CSK17 CSK20 CSK25 CSK30 CSK35 CSK40

CSK8PP CSK12PP CSK15PP CSK17PP CSK20PP CSK25PP CSK30PP CSK35PP CSK40PP

OEM and Customized Package is Possible

Natural packag e :

White box,Plastic Tubes,Wooden cartons
Customized Package According to our customer's requirements

Delivery time:3-5 days or according to our customer ’ s order quantity
