Quick Details
-
Brand Name:
-
LUY
-
Dimension(L*W*H):
-
20000*4000*4200mm
-
Capacity:
-
Customized
-
Weight:
-
50
-
Inner Material:
-
Stainless steel
-
Outer Material:
-
Carbon steel
-
Design Pressure(MPa):
-
0.85-4.5Mpa
-
Design Standard:
-
1
-
Working Temperature(℃):
-
100 - 450 ℃
-
Voltage:
-
380V / 410V / 220V 50Hz/ 60Hz
-
Power(W):
-
10Kw-700Kw
-
Certification:
-
ISO CE
-
Effective diameter:
-
500-4500mm
-
Effective length:
-
1000-20000mm
-
Working temperature:
-
100-450℃
-
Working pressure:
-
0.5-5.0Mpa
-
Raising pressure speed:
-
0.1Mpa/min continuous adjustment
-
Perssure error:
-
±0.01Mpa
-
model vacuum degree:
-
-0.098Mpa
Quick Details
-
Volume (m³):
-
5~200m³
-
Max Working Pressure(MPa):
-
5 MPa
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LUY
-
Dimension(L*W*H):
-
20000*4000*4200mm
-
Capacity:
-
Customized
-
Weight:
-
50
-
Inner Material:
-
Stainless steel
-
Outer Material:
-
Carbon steel
-
Design Pressure(MPa):
-
0.85-4.5Mpa
-
Design Standard:
-
1
-
Working Temperature(℃):
-
100 - 450 ℃
-
Voltage:
-
380V / 410V / 220V 50Hz/ 60Hz
-
Power(W):
-
10Kw-700Kw
-
Certification:
-
ISO CE
-
Effective diameter:
-
500-4500mm
-
Effective length:
-
1000-20000mm
-
Working temperature:
-
100-450℃
-
Working pressure:
-
0.5-5.0Mpa
-
Raising pressure speed:
-
0.1Mpa/min continuous adjustment
-
Perssure error:
-
±0.01Mpa
-
model vacuum degree:
-
-0.098Mpa
Product Description
.

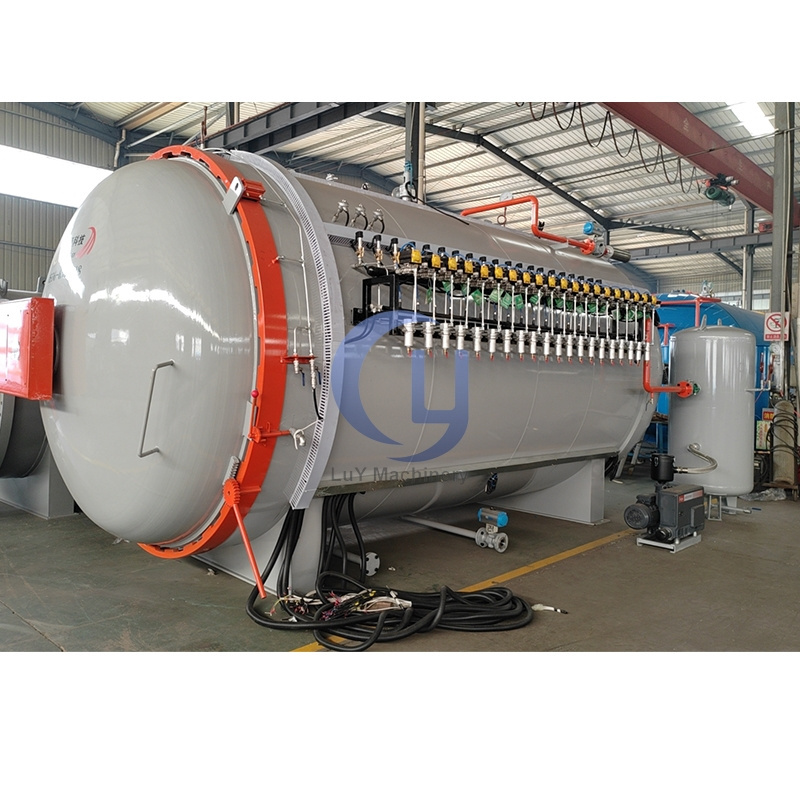

Autoclave is mainly used to solidify composite, such as metal/ nonmetal cementing structure, resin high strength glass fiber, carbon fiber, boron fiber, aramid fiber, epoxy resin and other composites. This equipment can make composite solidified by heat and boost pressure under the condition of vacuum.
.
The temperature, pressure, vacuum control of the autoclave meet the technological standard of BAC5621, K, D6-56273, B, D6-49237, E, AMS2750 and D.
.
The temperature of different positions of the workpiece can be controlled by our equipment, the error of the temperature is ±0.5℃.
Specification
|
Item
|
Design parameter
|
|
Effective diameter
|
500-4500mm
|
|
Effective length
|
1000-20000mm
|
|
Working temperature
|
100-450℃
|
|
Working pressure
|
0.5-5.0Mpa
|
|
Raising pressure speed
|
0.1Mpa/min continuous adjustment
|
|
Perssure error
|
±0.01Mpa
|
|
Raising temperature speed
|
0.5-7 ℃/min continuous adjustment
|
|
Temperature go down speed
|
0.5-7 ℃/min continuous adjustment
|
|
Cooling ways
|
Water cool and wind cool
|
|
Point temperature error
|
±1.2 ℃
|
|
Control temperature and test
temperature point |
2-20 points
|
|
Vacuum degree of cavity
|
-0.098Mpa (absolutely pressure )
|
|
Extra vacuum pipe
|
Extract 2-20 pipe extract and test
is independent |
|
Test vacuum pipe
|
Test 2-20 pipe extract and test
is independent |
|
Continuous working ability
|
≥ 50 hours
|
1.Independent vacuum control
independent inspection ,if one port damage ,it won’t effect other vacuum port
2.Adjustable cooling system
there is normal wind cool and precise water cooling .According to customer’s cooling rate to decide.
.
3.Control ways
Siemens screen or MCGS, and Siemens PLC module ,Schneider Electric.
4.Heating ways
Electriicity heating . PID control , step increase temperature .According to your increase temperature rate to design
5.Safety control
over pressure alarm ,over high temperature alarm . Tank door with double safety interlock . Once there is pressure inside ,you cannot open the door
6.Open door ways
side open and up open . According to your site to choose .
7.Loading
inside tolley . According to your product size .Laboratory composite autoclave is customized diameter 600mm length 800-1000mm .
