Quick Details
-
Voltage:
-
220-415v
-
Power:
-
4.75
-
Dimension(L*W*H):
-
1100*600*1650
-
Weight:
-
280 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
crushing set
-
Application:
-
Food Industry
-
Product name:
-
Peanut grinder mill potato flour powder making machine grain grinder
-
Function:
-
Multifunction
-
Material:
-
Food Grade Stainless Steel
-
Usage:
-
Grinding Foodstuff
-
Keywords:
-
peanut grinder mill
-
HS code:
-
84798200
-
MOQ:
-
1pc
Quick Details
-
Marketing Type:
-
New Product 2023
-
Brand Name:
-
Fangyuan
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
220-415v
-
Power:
-
4.75
-
Dimension(L*W*H):
-
1100*600*1650
-
Weight:
-
280 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
crushing set
-
Application:
-
Food Industry
-
Product name:
-
Peanut grinder mill potato flour powder making machine grain grinder
-
Function:
-
Multifunction
-
Material:
-
Food Grade Stainless Steel
-
Usage:
-
Grinding Foodstuff
-
Keywords:
-
peanut grinder mill
-
HS code:
-
84798200
-
MOQ:
-
1pc

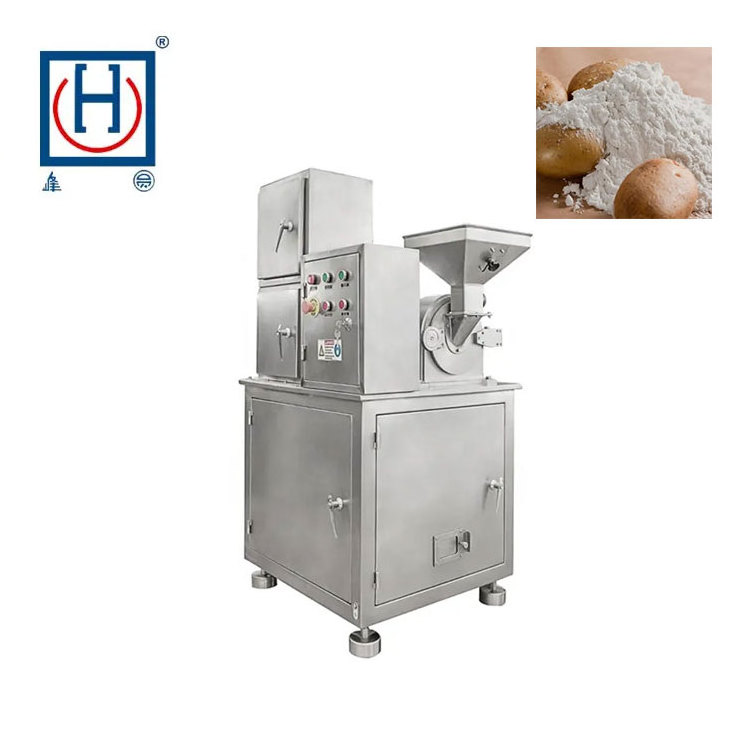

Fangyuan peanut grinder mill potato flour powder making machine grain grinder
It uses the relative movement between the active fluted disc and the fixed to impact,grind and crush the materials.The crushed material will automatically enter the supplementary collection bag through the rotation of centrifugal force, and the dust will be filtered and recycled through the cloth bag by the vacuum box.
Technical data :
|
Model
|
Production Capacity
|
spindle speed
|
Feeding Size
|
Crushing Fineness
|
Motor Power
|
Overall Dimensions(L*W*H)
|
Weight
|
|
WF-15B
|
10-50kg/h
|
7250r/min
|
6mm
|
60-120(mesh)
|
2.2kw
|
550*450*1050(mm)
|
100kg
|
|
WF-20B
|
60-150kg/h
|
4500r/min
|
6mm
|
40-120(mesh)
|
4kw
|
600*600*1450(mm)
|
280kg
|
|
WF-30B
|
100-300kg/h
|
3800r/min
|
6mm
|
40-120(mesh)
|
5.5kw
|
650*650*1650(mm)
|
350kg
|
|
WF-40B
|
160-800kg/h
|
3400r/min
|
10mm
|
40-120(mesh)
|
11kw
|
850*900*1750(mm)
|
550kg
|
|
WF-60B
|
300-1000kg/h
|
2800r/min
|
12mm
|
40-120(mesh)
|
22kw
|
1050*110*1950(mm)
|
880kg
|
|
WF-50B
|
400-2000kg/h
|
2000r/min
|
12mm
|
40-120(mesh)
|
37-55kw
|
1250*1200*2100(mm)
|
1500kg
|
Detail picture :
Jiangyin Fangyuan Machinery Manufacturing Co.,Ltd
Founded in 1989, Jiangyin Fangyuan Machinery Manufacturing Co., Ltd. is located in Zhutang Town, Jiangyin City, the first town of foreign trade in Jiangnan. It is adjacent to Jiangyin Yangtze River Bridge, Shanghai-Nanjing, Xicheng and Yanjiang Expressway. It has a unique geographical location, with Shanghai to the east, Suzhou and Wuxi to the south, Changzhou and Nanjing to the west, and the Yangtze River to the north. Waterway transportation is convenient. The company covers an area of more than 20,000 square meters and has a construction area of 12,000 square meters. It has more than 10 middle and senior techniciansand more than 100 employees.
ACHEMA,
Dusseldorf Medical Fair, Germany,
Turkey International Chemical Fair,
Russia International Chemical Exhibition,
Russia International Pharmaceutical and Biotechnology Exhibition,
ACHEMA
Dusseldorf Medical Fair, Germany
Turkey International Chemical Fair
Russia International Chemical Exhibition
Russia International Pharmaceutical and Biotechnology Exhibition
Brazil International Dyestuffs and Chemicals Exhibition
We are online 24 hours a day, please feel free to contact us!
If you want to send inquiry to me about our crusher,could you please tell me?
1) What's your
pre/after-sale service
?
① Professional advice and rich experience help to choose machine.
② Longtime maintainance and considerate technical support
③ Technicians can be sent to abroad to install.
④ One year guarantee. Whole life service. Within 1 year, any problem part can send to us, we can give provide free new part(only damaged by machine itself).
⑤ Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.
⑥ Video / CD of test running and installation, Maunal book.
2) How long is your production time?
Our production time is usually 35-40 days. If there is a custom service, the time needs to be calculated separately.
3)
Do you have any certifications qualifying our country?
A: our company’s equipment have passed ISO9001,meanwhile meet the GMP standard with CE & UL certifications, we have exported various countries all over the world, also other certifications is workable if demanded.
