Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, JPG
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
DIAOTU
-
Dimension(L*W*H):
-
29.5*45*67.8cm
-
Weight (KG):
-
14.5 KG
-
Core Components:
-
laser source
-
brand:
-
diaotu
-
Package size:
-
78*34*38cm
-
Product size:
-
29.5*45*67.8cm
-
Certification:
-
ce
-
Software:
-
Diaotu Softwre
-
Laser source:
-
MAX,Raycus,JPT
-
Product name:
-
Laser Engraving Equipment
-
Function:
-
Metal Marker
Quick Details
-
Engraving Area:
-
110*110mm - 300*300mm
-
Laser Type:
-
Fiber Laser
-
Engraving Speed:
-
0-15000mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, JPG
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
DIAOTU
-
Dimension(L*W*H):
-
29.5*45*67.8cm
-
Weight (KG):
-
14.5 KG
-
Core Components:
-
laser source
-
brand:
-
diaotu
-
Package size:
-
78*34*38cm
-
Product size:
-
29.5*45*67.8cm
-
Certification:
-
ce
-
Software:
-
Diaotu Softwre
-
Laser source:
-
MAX,Raycus,JPT
-
Product name:
-
Laser Engraving Equipment
-
Function:
-
Metal Marker
Product display
Application Material
Certifications
Specification

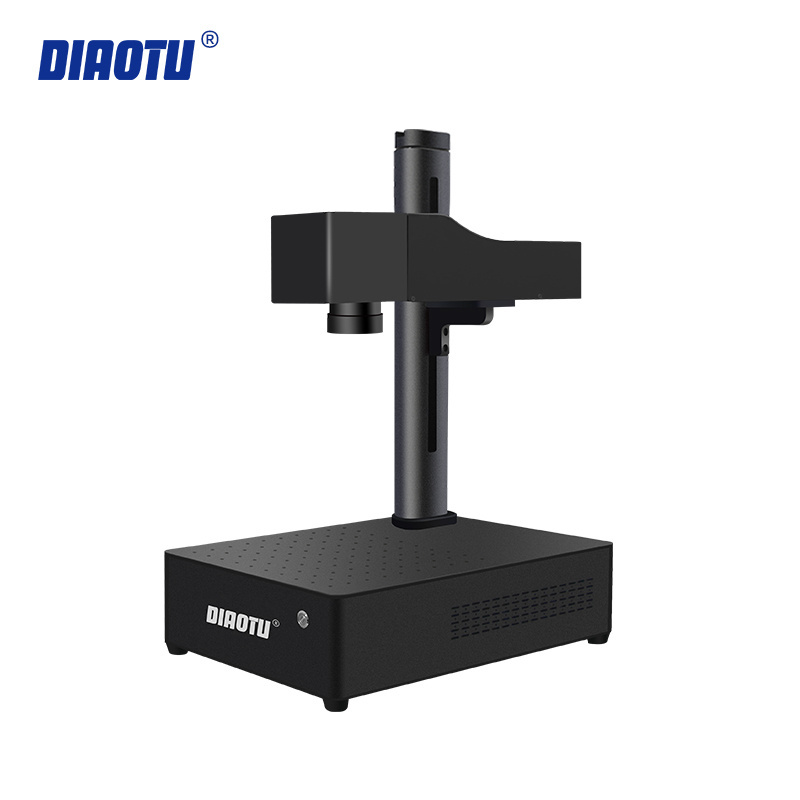

Portable Fiber Laser Marking Machine with JPT/MAX/RAYCUS Source
Fiber Laser Marking Machine is high performance fiber laser marking machine, It integrated advanced imported laser source and high quality galvo scanning system as one. It offers steady laser power output, perfect optical mode, good beam quality and fast marking speed, these advantages satisfied with customers demands towards perfect
effect and high efficiency, which can fulfil massive production.
> No Consumables, long life span Maintenance Free
The fiber laser source has super long life span of over 100,00 hours without any maintenance. No need to spare any extra consumer parts at all.
>Multi functional
It could mark/code/engrave un-removable serials numbers, batch numbers,expiry info., best before date,logo&any characters that you want. It could also mark QR code.
>Simple Operation,Easy to use
Software supports almost all common formats,the operator does not have to understand programming, Just simply set a few parameters and click start.
>High Speed Laser Marking
The laser marking speed is vert fast,3-5 times than the traditional marking machine.
>Optional rotary axis for different cylindrical
Optional rotary axis can be used to mark on different cylindrical,spherical objects. The stepper motor is used for digital
control,and the speed can be automatically controlled by computer,which is more convenient,simple,safe and stable.
effect and high efficiency, which can fulfil massive production.
> No Consumables, long life span Maintenance Free
The fiber laser source has super long life span of over 100,00 hours without any maintenance. No need to spare any extra consumer parts at all.
>Multi functional
It could mark/code/engrave un-removable serials numbers, batch numbers,expiry info., best before date,logo&any characters that you want. It could also mark QR code.
>Simple Operation,Easy to use
Software supports almost all common formats,the operator does not have to understand programming, Just simply set a few parameters and click start.
>High Speed Laser Marking
The laser marking speed is vert fast,3-5 times than the traditional marking machine.
>Optional rotary axis for different cylindrical
Optional rotary axis can be used to mark on different cylindrical,spherical objects. The stepper motor is used for digital
control,and the speed can be automatically controlled by computer,which is more convenient,simple,safe and stable.
|
Production Name
|
Fiber Laser Marking Machine
|
|
|
|
|||
|
Power
|
20w
|
30W
|
50W
|
60W
|
|||
|
Laser source
|
Max/ Raycus /JPT MOPA
|
|
|
|
|||
|
Laser Wavelength
|
1064um
|
|
|
|
|||
|
Beam quality
|
M2＜1.4
|
|
|
|
|||
|
Repeat Accuracy
|
0.001mm
|
|
|
|
|||
|
Min. line width
|
0.01mm
|
|
|
|
|||
|
Min. character
|
0.5mm
|
|
|
|
|||
|
Marking Speed
|
0-12000mm/s
|
|
|
|
|||
|
Electric power
|
<500W
|
|
|
|
|||
|
Cutting Depth
|
0.2mm
|
0.4mm
|
0.7mm
|
1mm
|
|||
|
Galvano scanner
|
Sino
|
|
|
|
|||
|
Lens
|
Hansel
|
|
|
|
|||
|
Power Supply
|
Fengchuang
|
|
|
|
|||
|
Controller software
|
DTCAD with 14 languages or EZCAD
|
|
|
|
|||
|
Working voltage
|
110/220V ± 10%, 50/60HZ
|
|
|
|
|||
|
Graphic Format Supported
|
AI, PLT, DXF, BMP, Dst
|
|
|
|
|||
|
Marking Area
|
7*7cm, 11*11cm, 15*15cm，20*20cm，30*30cm
|
|
|
|
|||
|
Cooling type
|
Air cooling
|
|
|
|
|||
|
Machine size
|
30*45*68cm
|
34*56*72cm
|
|
|
|||
|
Net weight
|
14.5kg
|
19.5kg
|
22kg
|
22kg
|
|||
|
Warranty
|
2 years for machine,2 year for laser source
|
|
|
|
|||
|
Laser source liftime
|
100，000 hours
|
|
|
|
|||
