Quick Details
-
Dimension(L*W*H):
-
8200*750*1700mm
-
Power (kW):
-
22KW
-
Weight (KG):
-
43000 kg
-
Usage:
-
Plywood Production
-
Panel Thickness:
-
12/18mm
-
Controlling methods:
-
Automatic pump station
-
Quantity of cylinders:
-
2
-
Diameter of cylinders:
-
420*2 pce
-
Stroke of cylinders:
-
1050
-
Closing time of No-load:
-
12S
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BKS
-
Voltage:
-
380/400/415V
-
Dimension(L*W*H):
-
8200*750*1700mm
-
Power (kW):
-
22KW
-
Weight (KG):
-
43000 kg
-
Usage:
-
Plywood Production
-
Panel Thickness:
-
12/18mm
-
Controlling methods:
-
Automatic pump station
-
Quantity of cylinders:
-
2
-
Diameter of cylinders:
-
420*2 pce
-
Stroke of cylinders:
-
1050
-
Closing time of No-load:
-
12S

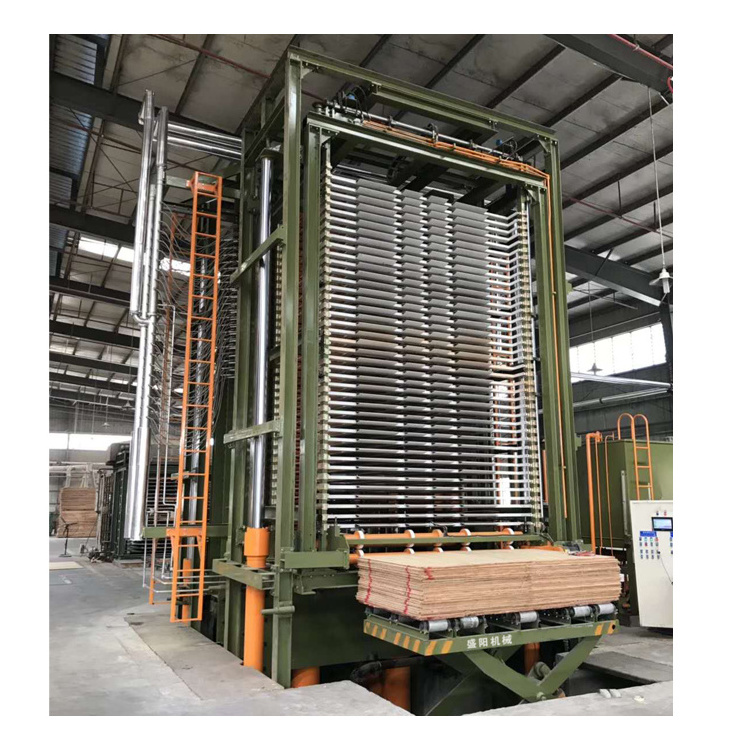

| Hydraulic hot press machine |
high quality hydraulic pressure hot press machine
Product Description
| Product Description | |
|
hydraulic pressure Hot Press Machine Veneer hot press is most important for plywood making line.Glued veneer face veneer and core veneer are moulded a whole sheet of plywood by hot press.Thermal oil heating type.Customized Pressure and opening layers.
1) Fabricated structure 2) Multiple daylight openings 3) Uniform heat and pressure distribution 4) Higher heat retaining capacity 5) Hydraulic and electrical components of interantional standards 6)Push button/PLC based controls |
|
Machine Parameter
| Machine Parameters | |||
| 1 | Item | Pareameter | |
| 2 | Nominal pressure | 400T 500T 600T 800T | |
| 3 | feeding direction | Transverse | |
| 4 | layers | 15 18 20 25 30 50 60...80 | |
| 5 | hydraulic cylinder | 6*280*1440mm | |
| 6 | Allowed pressure | ≤25 | |
| 7 | Closing time of No-load | 12S | |
| 8 | Power of low pressure pump | 22KW | |
| 9 | Flow of high pressure pump | 17ML/R | |
| 10 | Size of finished boards | 1220×2440mm | |
| 11 | Dimension of whole machines | 3700*1370*4950mm | |
| 12 | weight of whole machine | 3300kgs | |
Product details
Products advantage
| Product Advantage | |
|
1)Strict controlling management of raw materials. adopt the best quality steel.
|
|
