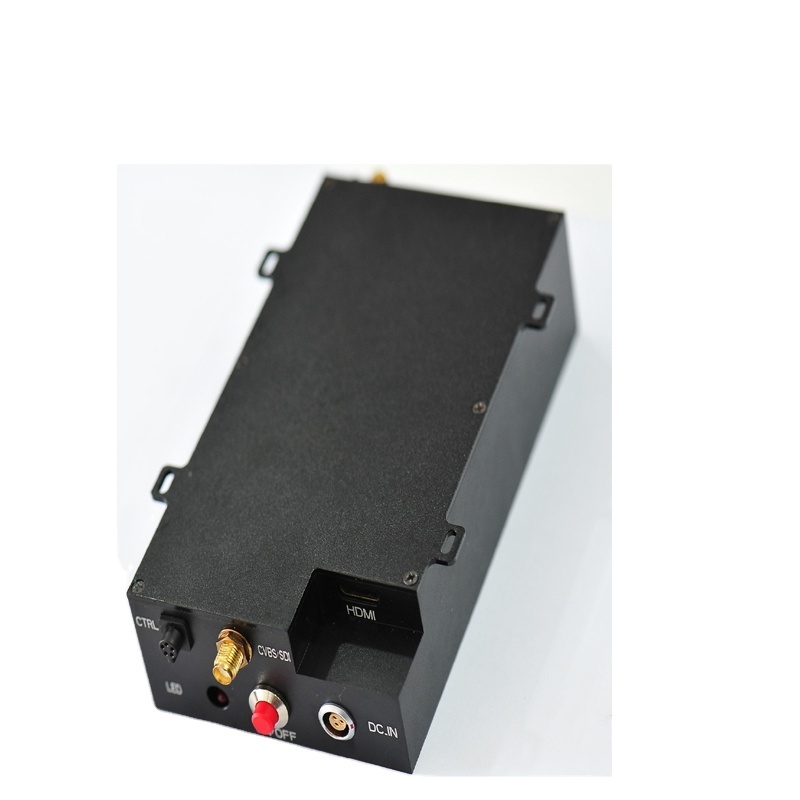

XK-F114THS
transmitter supports non-line-of-sight transmission, with long distance, strong anti-interference ability, low transmission bandwidth, and small transmission delay; it can be widely used in public security, fire protection, water conservancy, electric power, maritime, customs, radio and television industries, the collocation with unmanned aerial vehicle (UAV) is one of the most popular application at present.
- Product Details
- {{item.text}}
Quick Details
-
Color:
-
Black and Silver
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XINGKAITECH
-
Model Number:
-
Drone Transmiter and Receiver XK-F114THS
-
Color:
-
Black and Silver
Product Description
|
Product Name
|
XK-F114THS
|
|
Function
|
Drone Transmitter and Receiver
|
|
Package
|
Packed in a Professional Shipping Box
|
1. Product Description
2. Product Features
* Non-line-of-sight transmission, long transmission distance, and strong anti-interference capability.
* HD image transmission, the highest support 1080p60.
* Low transmission delay.
* AES encryption for transmission security and reliability.
* Good RF index, high signal-to-noise ratio, and small stray.
* Transmission frequency and bandwidth are adjustable.
* Wide input voltage range, support DC8V~DC25V voltage input.
* Small size.
* Low power consumption.
* HD image transmission, the highest support 1080p60.
* Low transmission delay.
* AES encryption for transmission security and reliability.
* Good RF index, high signal-to-noise ratio, and small stray.
* Transmission frequency and bandwidth are adjustable.
* Wide input voltage range, support DC8V~DC25V voltage input.
* Small size.
* Low power consumption.
3. Product Specification
|
Item
|
Parameter Name
|
Specification
|
|
|
Power Supply
|
Input Voltage
|
DC12V~DC30V，standard input DC16.8V
|
|
|
|
Power Wastage
|
≤36W @ 37dBm（5W）
|
|
|
Digital Baseband
|
Modulation Method
|
COFDM
|
|
|
|
Constellation Modulation
|
QPSK、16QAM、64QAM
|
|
|
|
Carrier Mode
|
2K
|
|
|
|
FEC
|
|
|
|
|
GUI
|
1/32、1/16、1/8、1/4
|
|
|
RF
|
Frequency of Emission
|
300MHz~800MHz customizable，step 1MHz。
RBW 20MHz @ 37dBm（5W） |
|
|
|
RF Bandwidth
|
2MHz、3MHz、4MHz、6MHz、7MHz、8MHz
|
|
|
|
Output
Power |
37dBm（5W）
|
|
|
|
Adjustable
Attenuator |
0~31.5dB
|
|
|
Audio and Video
|
Video Source
|
HDMI、 SDI
|
|
|
|
Resolution
|
1080p60、1080p50、1080p30、1080p25、1080p24、1080i60、1080i50、720p60、720p50、720p30、720p25、576p50、480p60、576i50、480i60。
|
|
|
|
Video Bit Rate
|
0.5~18.8Mbps
|
|
|
|
Audio Bit Rate
|
32、48、56、64、80、96、112、128、160、192、224、256、320、384Kbps
|
|
|
|
Video Coding
|
H.264/AVC
|
|
|
|
Audio Coding
|
MPEG-1 Audio Layer 2
|
|
|
Serial Port
|
Configuring the Serial Port
|
Standard RS232
level, baud rate 9600 |
|
|
|
Data
Port |
Standard RS232
level, baud rate 1200~115200 |
|
|
Encrypted Transmission
|
|
AES128、AES256
|
|
|
Transmission
Delay (end-to-end) |
|
Minimum 300ms(with XK-F110R receiver)
|
|
|
Temperature Range
|
Operating Temperature
|
-30℃~55℃
|
|
|
|
Storage Temperature
|
-40℃~75℃
|
|
|
Product Specification
|
Transmitter Size
|
134*75*36mm
|
|
|
|
Transmitter Weight
|
≤395g
|
|
|
|
Controller Size
|
≤70*72*13mm
|
|
|
|
Controller Weight
|
≤84g
|
|
