High Efficient CNC Tenoning Machine for Sale is mainly used in the furniture manufacturing industry and antique construction industry. The tenon and tenon structure is the soul and essence of my country's construction industry.
- Product Details
- {{item.text}}
Quick Details
-
Drill Diameter:
-
14-22
-
Place of Origin:
-
SHN
-
Brand Name:
-
QDZD
-
Voltage:
-
Cutomized
-
Power:
-
4.8KW
-
Dimension(L*W*H):
-
1820*1100*1550mm
-
Weight (KG):
-
900
-
Product name:
-
CNC Tenon
-
Keyword:
-
CNC Mortiser Wood Machine
-
Usage:
-
Tenoning Milling
-
Total Power:
-
Contact
-
Color:
-
Required
-
Spindle speed:
-
9000rmp/min
-
CNC or Not:
-
YES
-
Function:
-
Wood Tenon Making Machine
-
Overall Dimension:
-
1820*1100*1550mm
-
Other name:
-
CNC round tenon machine
Quick Details
-
Application:
-
cnc mortise and tenon machine
-
Motor Speed:
-
9000
-
Marketing Type:
-
Hot Product 2023
-
Drill Diameter:
-
14-22
-
Place of Origin:
-
SHN
-
Brand Name:
-
QDZD
-
Voltage:
-
Cutomized
-
Power:
-
4.8KW
-
Dimension(L*W*H):
-
1820*1100*1550mm
-
Weight (KG):
-
900
-
Product name:
-
CNC Tenon
-
Keyword:
-
CNC Mortiser Wood Machine
-
Usage:
-
Tenoning Milling
-
Total Power:
-
Contact
-
Color:
-
Required
-
Spindle speed:
-
9000rmp/min
-
CNC or Not:
-
YES
-
Function:
-
Wood Tenon Making Machine
-
Overall Dimension:
-
1820*1100*1550mm
-
Other name:
-
CNC round tenon machine
CNC Tenoning Machine Mortise Machine
Appliance
Customization
As a manufacturer, we can meet any requirement of sanding. Whether it is the technical specification of the machine or the brand of accessories, as well as different functions, you have many choice. Build a custom woodworking cnc machine that only belongs to you!

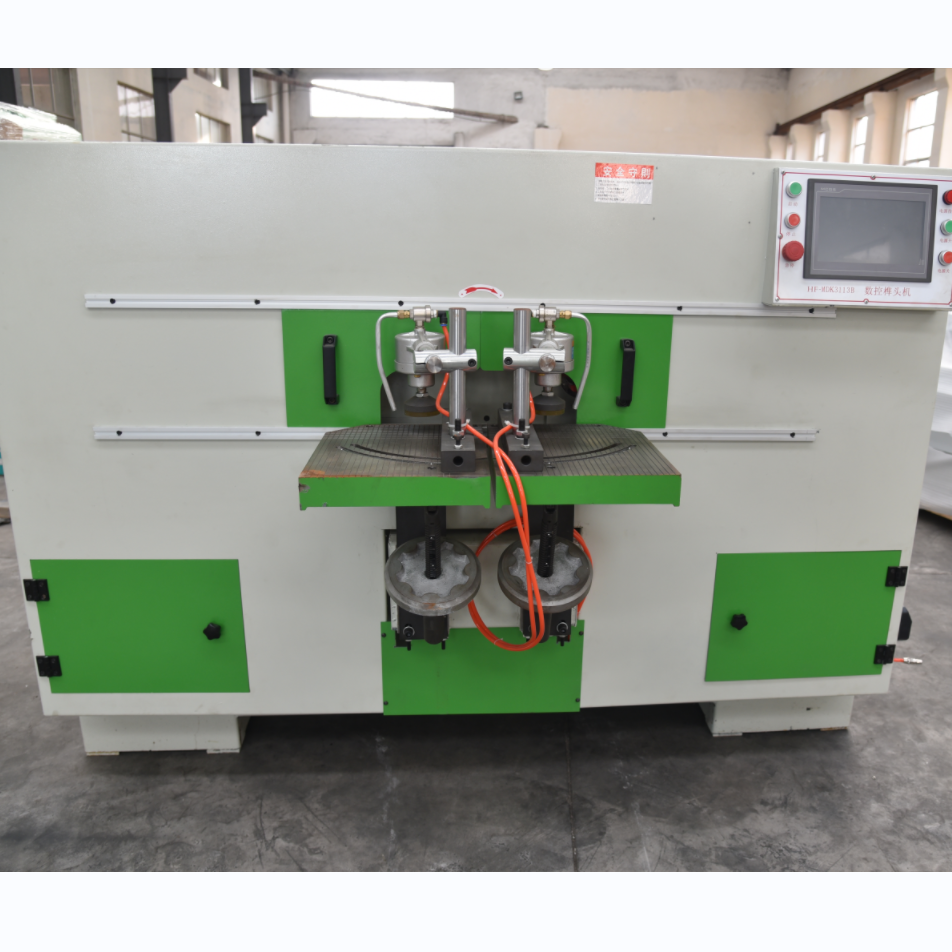

High speed Double sided tenoning machine for round end tenon making
1. CNC precision boring is more convenient and faster than traditional mechanical adjustment of the size and shape of the hoe.
2. For welded cutter heads, the direction of the cutter axis can be adjusted in the horizontal, vertical and inclination
directions, and the depth of the boring can be adjusted externally without opening the cover.
3. It is processed by double table and is highly efficient.
4. Menu mode selection, simple operation, parameterized input, convenient and quick adjustment, easy to realize three-dimensional processing of the system.
5. The machine is equipped with a transformer device to effectively protect the normal operation of electrical components in
high-speed machining.
6. The tilting angle of the work surface is adjusted by adjusting the hand wheel to adjust the tilt angle of 0-45 degrees.
2. For welded cutter heads, the direction of the cutter axis can be adjusted in the horizontal, vertical and inclination
directions, and the depth of the boring can be adjusted externally without opening the cover.
3. It is processed by double table and is highly efficient.
4. Menu mode selection, simple operation, parameterized input, convenient and quick adjustment, easy to realize three-dimensional processing of the system.
5. The machine is equipped with a transformer device to effectively protect the normal operation of electrical components in
high-speed machining.
6. The tilting angle of the work surface is adjusted by adjusting the hand wheel to adjust the tilt angle of 0-45 degrees.
|
Model
|
MB3113B
|
|
Processing speed
|
45m/min
|
|
Tool diameter
|
90/30 wavy teeth/flat teeth
|
|
Air pressure requirement
|
0.6/0.8mpa
|
|
Voltage
|
380v
|
|
Adjustable angle of platform
|
45 degrees
|
|
Workpiece processing size
|
width 140 height 120mm
|
|
Spindle speed
|
9000rpm
|
|
Overall dimension
|
1820*1100*1550mm
|
|
Weight
|
900kg
|
Details
CNC CUTTER
CNC precision boring is more convenient and faster than traditional mechanical adjustment of the size and shape of the hoe.
PLC CONTROLLER
Menu mode selection, simple operation, parameterized input, convenient and quick adjustment, easy to realize three-dimensional processing of the system.
Factory
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
Our products mainly include CNC machine , Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.
Our products mainly include CNC machine , Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.
RFQ
Q: Are you factory or trading company?
A: We are professional factory specialize in CNC equipment for over 14 years.
Q: What's your MOQ? What's your delivery term?
A: Our MOQ is 1 set machine, we usually require 20-30 days for manufacturing, 1 day for packaging. The exact time will be depended on your order quantity and customized level.
Q: What's your payment term?
A: We normally accept T/T and L/C at sight, other fast payment way is also accepted if the amount is small, like Western union, Master
card and cash etc.
Q: Whats your warranty time ? What you can supply to us after we bought your machine?
A: We give customer 1 year quality warranty. In case any accident in customer's factory, we will give permanent technic support and spare parts supplying.
PACKAGE:
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough packagewith 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them whenmachine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough packagewith 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them whenmachine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
