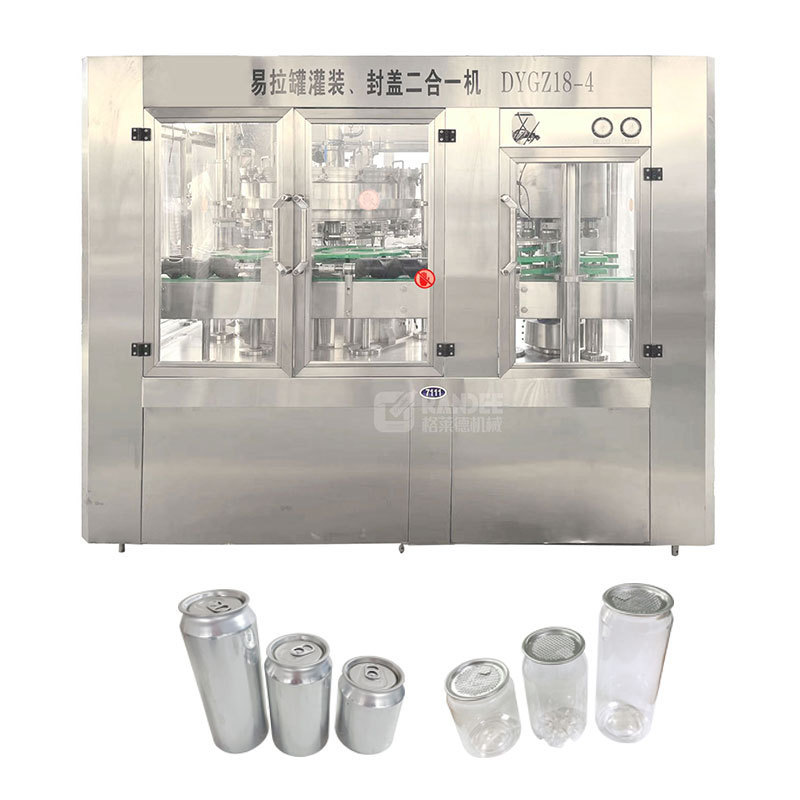

Fully automatic 2 in 1 aluminum tin can making machine 250 to 500ml can filling and sealing machine

Fully automatic 2 in 1 aluminum tin can making machine 250 to 500ml can filling and sealing machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $20000

≥3 Sets

US $19000

≥5 Sets

US $18000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Filling Accuracy:: +2 mm

Voltage:: 380V 50Hz 3P

Place of Origin:: Jiangsu, China

Brand Name:: Grandee

Dimension(L*W*H):: 2600*2150*2500mm

Weight:: 4000 KG

Product name:: Can Filling Sealing Machine

Material:: Stainless Steel 304/316

Filling:: Carbonation Pressure Filling Type

Function:: Can washing filling capping process

Capacity:: 4000-5000cans/h

Filling temperature:: 3-8degree

Can height:: 80-160mm

Bottle size:: 220ml-750ml

Filling type:: Isobaric Filling System

Suitable for:: Carbonated Drink Filling Line

Quick Details

Machinery Capacity:: 4000BPH, 5000BPH

Packaging Material:: Metal

Filling Material:: Beer, Water

Filling Accuracy:: +2 mm

Voltage:: 380V 50Hz 3P

Place of Origin:: Jiangsu, China

Brand Name:: Grandee

Dimension(L*W*H):: 2600*2150*2500mm

Weight:: 4000 KG

Product name:: Can Filling Sealing Machine

Material:: Stainless Steel 304/316

Filling:: Carbonation Pressure Filling Type

Function:: Can washing filling capping process

Capacity:: 4000-5000cans/h

Filling temperature:: 3-8degree

Can height:: 80-160mm

Bottle size:: 220ml-750ml

Filling type:: Isobaric Filling System

Suitable for:: Carbonated Drink Filling Line

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

Products Description

Carbonated Beer Can Filling Sealing Machine

Beer canning machine / soda water filling sealing machine for equal pressure can filling sealing machine of carbonated drinks in beer and drink industry. It is a pop canned beer in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit. Filling and sealing is the overall designed, power system by filling sealing system to ensure that both the absolute synchronization and coordination. It adopts the advanced machine, electrical equipment, and pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip long-distance control system according to the customers’ request. It is the preferred equipment for the medium beer and beverage plant.

Auto depalletizer → Automatic can rinsing machine→Automatic soda water can filling machine→
Automatic can sealing machine→Can warmer(optional)→Blow dryer→Automatic or Manual sleeve labeling machine→Bottle Collection Table

Automatic lifting and unloading machine：

Production capacity: 200-400 cans/min Applicable tank diameter: 52-153mm Applicable tank height: 39-170mm Push can form: automatic push can, mesh belt conveyor Tank discharging form: multi - row to single - row conveyor belt out of tank Stacking form: manual button control

Automatic can washing part:

Adopt many rows of washing can machine, can driven by many rows conveyor into the washing cans equipment, after finishing washing and through stranding cage overturning , and then to the filling capping equipment.

Filling part

Adopt PLC, frequency converter and man-machine interface control system. It has advanced control technologies such as variable frequency speed regulation, automatic filling with cans, no filling without cans, etc. Through various sensors on the device, the accurate production speed and production quantity can be displayed on set it on the touch screen.

Sealing part

The finished cans are sent to the sealing machine head via a hook chain, and the lid is sent to the mouth of the tank through the
cap feeder. When the can supporting mechanism is raised, the indenter presses the mouth of the can, and the sealing wheel is
pre-sealed and sealed. After the can is sealed, it is pushed out by the canning mechanism to complete the process of filling and sealing

Electrical control

HMI and PLC: SIEMENS, GERMANY

Frequency converter: Schneider, French

Main technical parameter

Model	GDF12-1	GDF12-4	GDF18-4	GDF24-4	GDF36-6	DXGF 50-50-12
Capacity (500ml)	1500-2000	2000-3000	4000-5000	6000-7000	10000-12000	12000-14000
Filling type	Isobaric filling
Filling pressure	＜0.4MPa
Rinsing water pressure	＞0.06MPa ＜0.2MPa
Application	Carbonated soft drink bottling line
Totalpower	2.5kw	3.7kw	6kw	7.5kw	8.2kw	11kw
Overall dimensions	2.0*1.9m	2.3*1.9m	2.6*2.15m	2.8*2.5m	3.6*2.3m	5.5*3.3m
Height	2.3m	2.5m	2.5m	2.5m	2.5m	2.5m
Weight	2000kg	2500kg	4000kg	4500kg	6000kg	11000kg

NAME	BRAND	AREA
PLC	Siemens	Germany
INVERTER	Siemens	Germany
CONTACTOR	Siemens	Germany
TOUCH SCREEN	Siemens	Germany
INVERTER	Siemens	Germany
MOTOR	ABB	SWISS
PNEUMATIC PARTS	FESTO	GERMANY
ELECTRICAL PARTS	SCHNEIDER	FRANCE

For more information, please feel free to contact us to send an inquiry !

Turnkey Solution

1.RO system

This RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department. This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.
This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc

2.Carbonated drink mixer and water chiller

Carbonation mixer: 1500L/Hr,2000L/Hr,3000L/Hr,5000L/Hr, etc. Co2 content is from 2.0-3.8
Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree (filling temperature).
