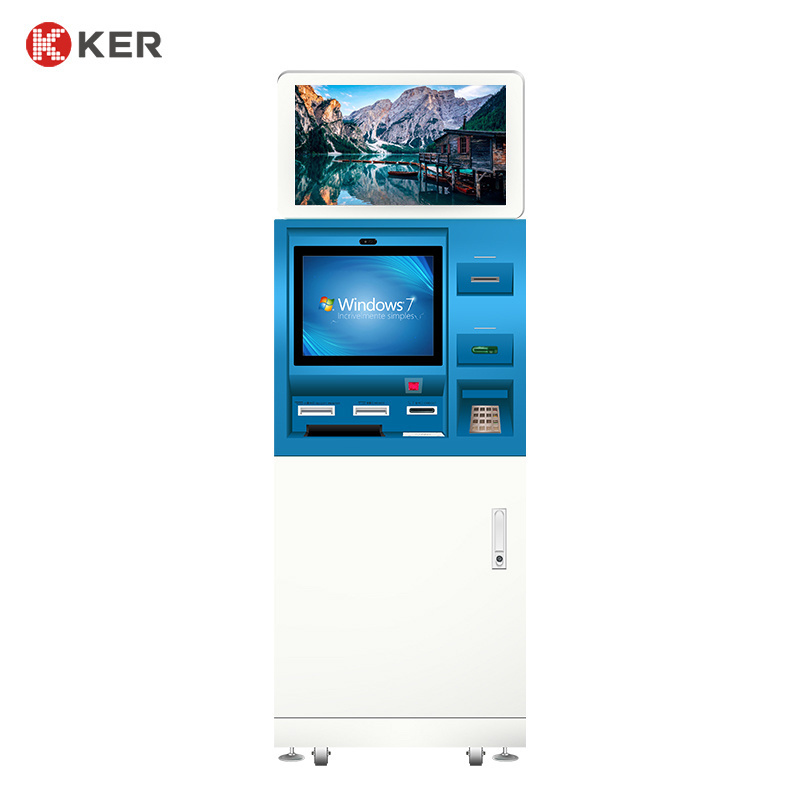

Automatic Encrypted Currency Cash Payment Machine Passport Scanner Currency Exchange Machine ATM Crypto Machine

Automatic Encrypted Currency Cash Payment Machine Passport Scanner Currency Exchange Machine ATM Crypto Machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $11000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

TYPE:: TFT

DOT PITCH:: 0.28

VIEWING ANGLE:: 178°

CONTRAST VALUE:: 3000:1

BRIGHTNESS:: 350NITS

RESPONSE TIME:: 3MS

INPUT VOLTAGE:: AC 110/240V 50/60HZ

SERVICES:: ONLINE SUPPORT, VIDEO TECHNICAL SUPPORT

WARRANTY:: 1 YEAR

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: ker

COLOR:: BLACK, SILVER, WHITE

TYPE:: TFT

DOT PITCH:: 0.28

VIEWING ANGLE:: 178°

CONTRAST VALUE:: 3000:1

BRIGHTNESS:: 350NITS

RESPONSE TIME:: 3MS

INPUT VOLTAGE:: AC 110/240V 50/60HZ

SERVICES:: ONLINE SUPPORT, VIDEO TECHNICAL SUPPORT

WARRANTY:: 1 YEAR

Specification

*PRODUCT NAME

1)BASIC PARAMETERS

Product Name

Self Service ATM Kiosk

Product Model

ST-ATM-002

* PRODUCT SPECIFICATION

CATEGORIES

CATEGORIES -2

DESCRIPTIONS

*PRODUCT SPECIFICATION

1)LCD PARAMETERS

Screen Size

23.8 "

Screen Type

LED industrial grade A standard LCD screen

Screen Brand

Display Area

527MM(L)*296MM(W)

Resolution

1920*1080

Screen Ratio

16:9

Brightness

350cd/㎡

Contrast

1500:1

Response Time

5.5ms

Max. Color

16.7m

Refresh Rate

50\60hz

Visual Angle

178°(H)\178°(V)

Service Lift

60000hours

2)TOUCH SCREEN PARAMETERS

Screen Size

19 "

Screen Type

LED industrial grade A standard LCD screen

Screen Brand

Display Area

376MM(L)*301MM(W)

Resolution

1920*1080

Screen Ratio

4:3

Brightness

350cd/㎡

Contrast

1500:1

Response Time

5.5ms

Max. Color

16.7m

Refresh Rate

50\60hz

Visual Angle

178°(H)\178°(V)

Service Lift

60000hours

Touch Screen Type

Projected capacitive touch screen (G+G)

Response Time

3ms

Touch Points

10-point touch, can realize multi-touch functions such as zooming in and zooming out pictures

Effective Touch Recognition

＞1.5mm(Opaque objects such as fingers and touch pens)

Scan Rate

50scans\s

Scan Accuracy

4096*4096

Communication Methods

Full speed USB2.0\3.0

Theoretical Clicks

60 million times or more

Working Current/ Voltage

180ma\dc+5v±5%

Anti-light Interference

Normal use when sunlight, incandescent lamp, fluorescent lamp, etc. strong light changes

Touch Data Output Method

Coordinate output

Surface Hardness

Physically tempered Mohs Grade 7 explosion-proof glass

Operating System Compatibility

Windows\Android

Drive

Drive-free, plug and play

(3)HOST CONFIGURATION

Processor

Integrated 8th-Generation Intel®I5-8265u 1.6GHz/i7 8565u 1.8G quad-core eight-threaded processor, TDP 15W

Compatible with Intel® Whiskey Lake-U Celeron/Pentium/i3/i5/i7 low-power processor

Chipset

SOC

Memory

KINSTON 4GB DDR4, and supports maximum 32GB

Storage

KINGSTON 128G SSD, SSD solid -state hard disk supporting Intel protocol, transmission speed can reach 6Gbps

Display function

Integrated Intel® UHD Graphics support DirectX 12 OpenGL 4.5, support 4K

1*VGA interface, the maximum resolution support is: 1920x1200@60Hz

1*HDMI1.4 interface, the maximum resolution support is: 4096x2304@24Hz

1* Embedded Displayport (optional), the highest resolution support is: 4096x2304@60Hz

1* Support dual -channel 24bit LVDS interface Note: LVDS interface and Embedded DisplayPort interface is two selected

Network features

2*RTL811H Gigabit network card, support network wake -up, PXE function

Audio function

Integrated ALC662 6 -channel high -fidelity audio controller, support MIC, LINE OUT, and amplifier

The amplifier supports 2Ω \ 5W dual -channel

Expansion port

1*Mini-PCIE slot, supports WiFi \ 4G module

Back panel I\O interface

2*USB3.0 interface

1*HDMI interface

1*VGA interface

2*RJ45 Gigabit Network Interface

1*DC12V power interface, support 12V power input and output

Operating system

Windows 10, Linux

*PRODUCT SPECIFICATION

4.1)FRONT CAMERA PARAMETERS
(OPTIONAL)

Model name

Binocular camera

Model no.

BLT 985

Scanning System

Progressive scan

Scanning Frequency(H)

25HZ

Scanning Frequency(V)

50HZ

Image Sensor

1/2.5” CMOS

Effective Pixels

2592*1944

Pixel size

2.2umx2.2um

Image sensor Data output

Raw Data 10bits

Video output

MPJG/YUY2

Maximum Frame Rates

2592x1944 at 30fps

1280x720 at 30fps

800x480 at 30fps

640x480 at 30 fps

320x240 at 30fps

Maximum Frame Rates

2592*1944 at 15fps

1280x720 at 15fps

800x480 at 20fps

640x480 at 30 fps

320x240 at 30fps

SNR max

≥39dB

Dynamic range

≥100dB

Min. Illumination

≥0.01LUX at F1.2

FOV

-72℃/0~90RH; Horizontal 80°Vertical 56°Diagonal 96 °;

Lens view

F=3.0mm

(4.2)QR-CODE SCANNER PARAMETERS

Model name

QR-CODE scanner

Model no.

ECODE 8620

Image sensor

CMOS

Resolution

640*480

Commmunication interface

12PIN-FPC
4PIN DUPONT-TTL232
4PIN DUPONT-USB(HID, CDC)

Reading code system

2D: PDF417, QR Code, DataMatrix, etc
1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1,
Databar, Matrix 2 of 5, Code 11,Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc

Reading accuracy

5 mil

Illumination

White LED

Rotating sensitivity

Rotate: 360°

Tilt: ±50°

Deflection: ±50°

Exercise tolerance

1.5m\s

Symbolic contrast

≥30%

Field angle

Horizontal 68° Vertical 51°

Typical reading depth of field

EAN 13: 10MM-130MM (13MIL)

QR: 0MM-95MM (15MIL)

Data Matrix: 0mm-50mm (6.67mil)

QR-CODE: 10mm-260mm (32mil)

(4.3)CARD READER PARAMETERS

Model name

Card Reader

Model no.

M100

Magnetic card

Compliance with ISO7810 7811 standard card

IC card

EMV, 7816

RF card

S50, S70, ID card

SIM card

8 -bit inlet card

Method of card entry

Magnetic signal, photoelectric signal, back to the card

Electric gate

Guarantee the insertion of the legal card

Mechanical gate

Anti -dust, anti -foreign body

Instruct light

Instructions in the card, power supply, IC card on the electric instructions on the IC card

Card (stop) slot

Multi -card card (stop) slot

(4.4)METAL PIN-PAD PARAMETERS

Model name

Metal Pin-pad

Model no.

KMY 3501A

Keyboard button

16 keys: 0, 1, 2, 3, 4, 5, 6, 7, 8, 8, 9, clearing, confirmation, exit, decimal point, upward, downward, matrix scan in 4 × 4.
8 keys in the function key: divide the left and right groups, each with a 4 × 1 matrix scan.

Communication parameters

Standard RS232 serial communication interface (optional USB interface).
Potter rate: 9600
Data bit: 8 -bit inspection bit: No stop bit: 1 bit

Specification and operation speed

Support DES and TDES plus, decryption algorithm, PIN encryption, MAC operation
In line with the bank card testing center, the speed of decryption is <1 second.
