Low cost USUN brand Model: J-SD09 output double acting portable air driven hydraulic pressure booster pump

WHY CHOOSE OUR  PUMP?

This brochure introduces pneumatic driven air /Hydraulic boosters and Complete booster system.

These air liquid pump offer a flexible and efficient source for delivering high pressure liquids

1 . Costing savings : An alternative to the purchase of High Pressure compressor ,our air driven liquid are

Compact and Require no electrical or mechnical drive connections ,Are powered by the same air that they amplify

and can mounted in any position

2 . High Flow rates at High pressure : W hen High flow rates at high pressure are needed ,the Air Liquid pump

can charge a receiver to an even higher pressure level ,thus storing a volume of  air aviable for rapid release at a constant

pressure through a pressure reducing valve

3.Safety Operation : Sa fe Pneumatic Operation-No Heat, Flame or Spark  Rish and No need electricity .

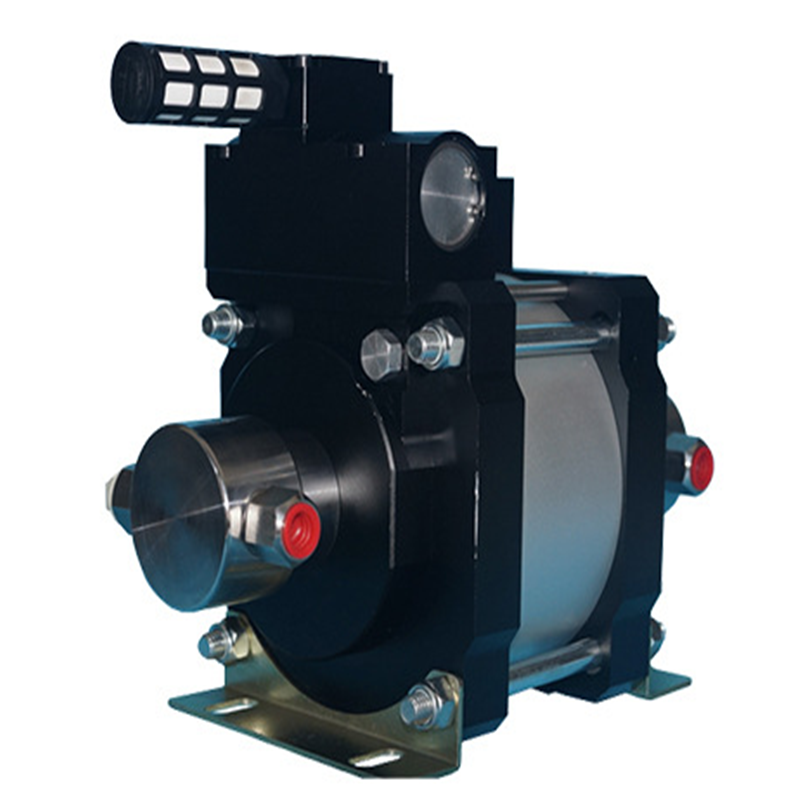

USUN Model:J-SD09   9:1 pressure ratio double acting air driven Hydraulic pressure test pump

It C an be used for pressure testing ,cylinder positiong for valves  ,super critical fluid extraction for food

preservation . Chemical metering /Injection ,hydrostatic testing for liquid pump .

Item number	J-SD09  9:1 pressure ratio 72 Bar output air driven hydraulic pressure test pump
Air driven Pressure	3-8 Bar
Dealing with air source	G1/2 ''size air regulator
lubrication	Non-lubricated
Theory of operation	The Air liquid pump consist of a large reciprcating air driven piston directly and coupled by a connecting rod to small area Air piston.The Air piston operates in a high pressure air barrel section .Each barrel end contains high pressure inlet and outlet check valves
Air consumption	0.5-0.6M3/Min
Installation	Any

Product features

1. Realiable ,Easy to Maintain ,compact and robust

2. No heat,flame or spark risk

3. Infinitely variable output pressure and flow capability

4. Air driven Models do not require electrical connection ,easy to apply automatic controls

5. Wide range of models and controls and options

6.Seals system designed for long working life,No airline lubricated required

7. Wide range of standard and customized liquid pump systems

Technical parameter of  air driven liquid pump

* The pressure ratio is driven piston/hydraulic plunger ratio.
* The outlet pressure based on air driven pressure is 8Bar (116psi). (It is estimation of maximum allowable pressure.)
* The rate of flow based on the air driven pressure is 6Bar (87psi) and the outlet pressure is 0 Bar. (It is approximate flow value.)
* The mininum air driven pressure is 3 Bar (43.5psi).
