Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KINGREAL
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
300*200*500
-
Weight:
-
18500 kg
-
Name:
-
cable tray machine
-
Usage:
-
Cable tray
-
Raw material:
-
galvanized steel strip or stainless-steel strip
-
Roller material::
-
Cr12Mov
-
Shaft material:
-
High Grade No.45 Forged
-
Control system:
-
Delta
-
Motor brand:
-
Mistubishi
-
Color:
-
Customer's Requirement
-
Certification:
-
CE Certificate
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
30 m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KINGREAL
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
300*200*500
-
Weight:
-
18500 kg
-
Name:
-
cable tray machine
-
Usage:
-
Cable tray
-
Raw material:
-
galvanized steel strip or stainless-steel strip
-
Roller material::
-
Cr12Mov
-
Shaft material:
-
High Grade No.45 Forged
-
Control system:
-
Delta
-
Motor brand:
-
Mistubishi
-
Color:
-
Customer's Requirement
-
Certification:
-
CE Certificate
Products Description

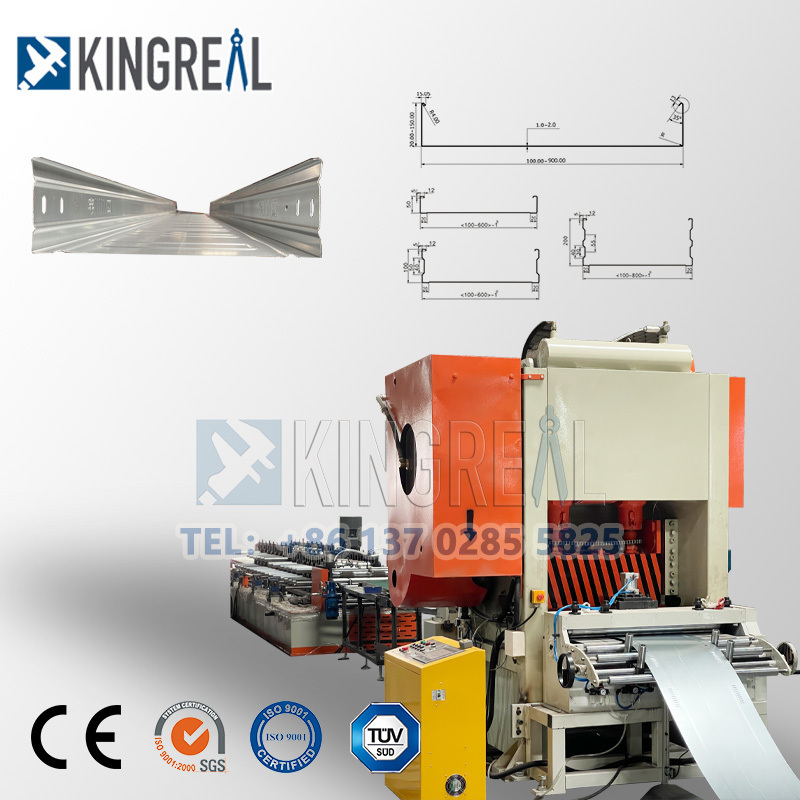

Cable tray roll forming making manufacturing machine
Automatic feeding-initial leveling-feeding (servo)-punching-cutting-conveying material-forming-discharging
- Decoiler
- Precision leveler
- High speed punch press with punch moulds
- Servo feeder
- Main roll forming station
- Hydraulic shearing station
- Products stacker
- Electrical & Hydraulic system
- Decoiler
- Precision leveler
- High speed punch press with punch moulds
- Servo feeder
- Main roll forming station
- Hydraulic shearing station
- Products stacker
- Electrical & Hydraulic system
|
Raw Material
|
Galvanized sheet, mild steel, etc
|
|
|
|
|||
|
Roller Material
|
High grade 45# steel
|
|
|
|
|||
|
Production Line
|
Fully automatic
|
|
|
|
|||
|
Electrical Control System
|
PLC control
|
|
|
|
|||
|
Usage
|
Light steel keel
|
|
|
|
|||
|
Brand
|
KINGREAL
|
|
|
|
|||
Application
Certifications
Our products have passed the international ISO9001 and European CE certification,
and being exported to many European countries.
