Quick Details
-
Model Number:
-
All
-
Protection Level:
-
IP66
-
Operating Temperature:
-
-10~+80℃
-
Max. Current:
-
10A
-
Switch life:
-
15,000,000 times above
-
Material: Aluminum shell:
-
Material: Aluminum shell
-
Operation Speed: 1mm to 2m/s:
-
Operation Speed: 1mm to 2m/s
-
Weight: about 275g:
-
Weight: about 275g
-
Certification: CE:
-
Certification: CE
-
Payment Terms:
-
30% deposit in advance,
-
Insulation resistance:
-
100MΩ
-
Quality:
-
High Level
-
Color:
-
Customer Required
-
Size:
-
Standard Size
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
SYM
-
Model Number:
-
All
-
Protection Level:
-
IP66
-
Operating Temperature:
-
-10~+80℃
-
Max. Current:
-
10A
-
Switch life:
-
15,000,000 times above
-
Material: Aluminum shell:
-
Material: Aluminum shell
-
Operation Speed: 1mm to 2m/s:
-
Operation Speed: 1mm to 2m/s
-
Weight: about 275g:
-
Weight: about 275g
-
Certification: CE:
-
Certification: CE
-
Payment Terms:
-
30% deposit in advance,
-
Insulation resistance:
-
100MΩ
-
Quality:
-
High Level
-
Color:
-
Customer Required
-
Size:
-
Standard Size

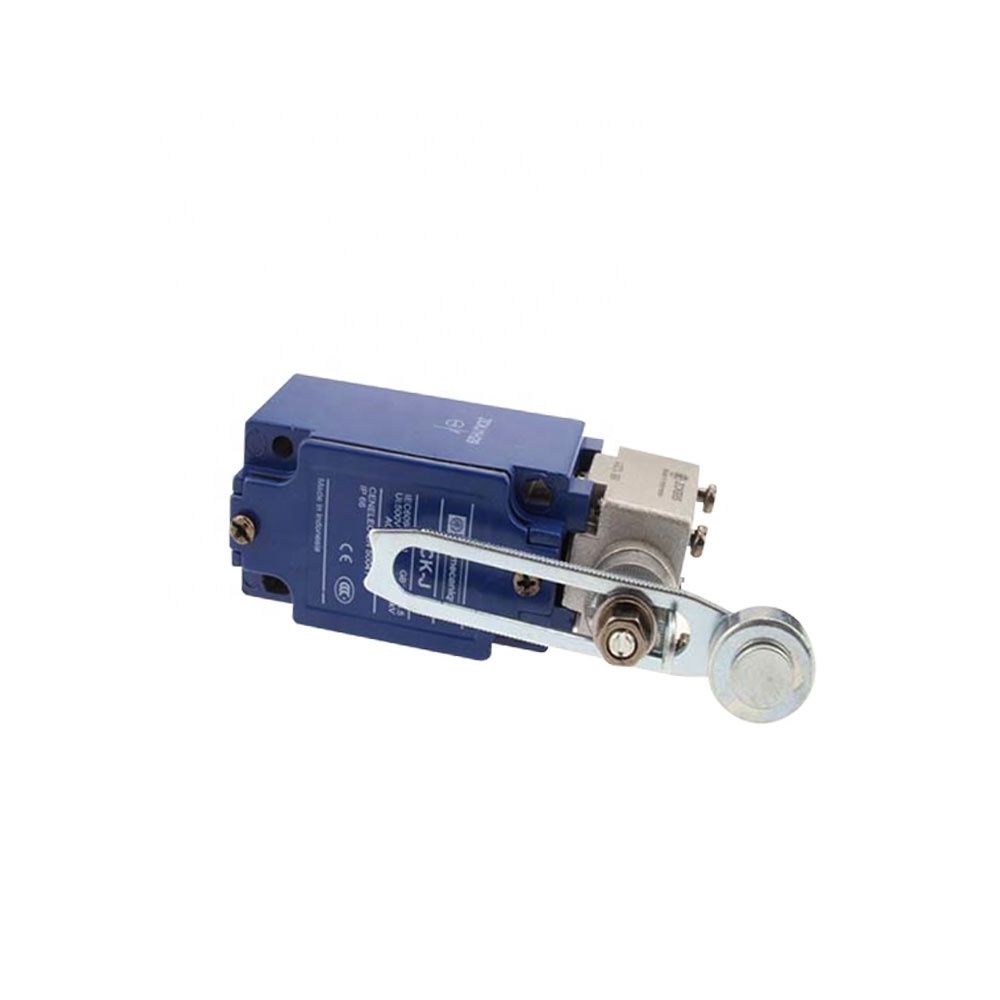

Construction Passenger Hoist Safety Door Limit Switch
- Preventing oil,water and pressure;
- Double-circuit form,quick action slow motion optional,line with direct opening action operation structure;
- Variety of levers;
-
Widely used in Mechanical equipment,automatic machine,and instrument,electro motion tool etc.
-
Item
Data
Rating load
AC-15 3A/240VAC 0.27A/250VDC
Operation speed
1mm-1m/s
Operation frequency
Mechanical 120times/min
Electrical 30 times/min
Contact resistance
≤25mΩ
Insulation resistance
≥100mΩ DC500V
Withstand voltage
Non-connection wire 1000VAC
Every terminal 1500VAC
Vibration Misoperation 10-55Hz Amplitude 1.5mm
Impact Durable 1000m/s²
Misoperation 300m/s²
Operating life
Electrical 100,000 above
Mechanical 1000,000 above
Protection degree
IP65
Operating temperature
-10°C ∼ +70°C
Operating humidity
<85%
