Quick Details
-
Output Speed:
-
30-800RPM
-
Warranty:
-
2 years
-
Weight (KG):
-
8.8
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NEWGEAR
-

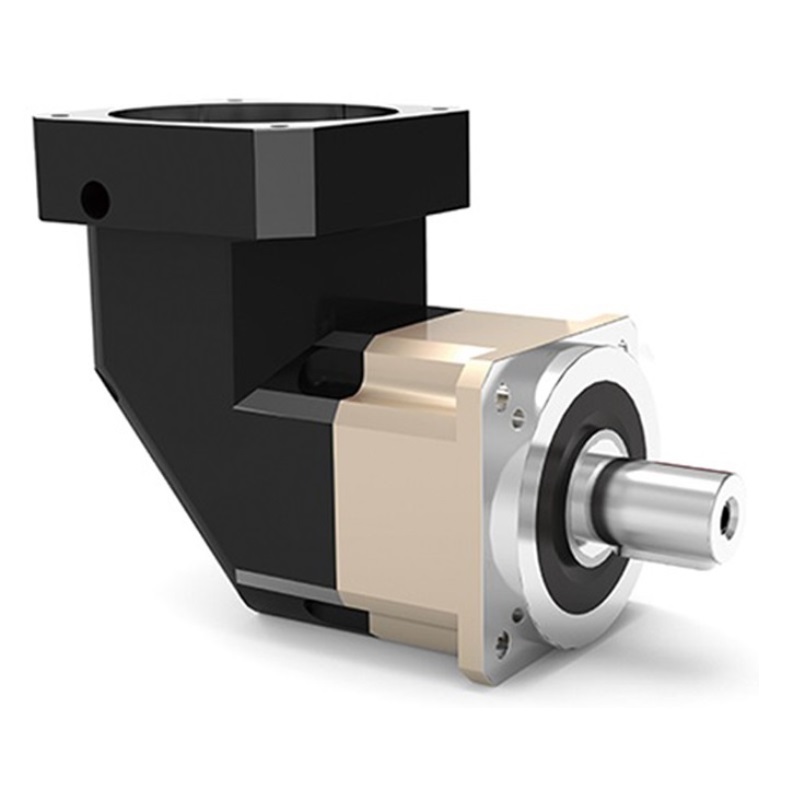

Product name:
-
PXR90
-
Ratio:
-
3-100
-
Color:
-
Black
-
Certification:
-
ISO9001-2008
-
Allowable radial force:
-
3300N
-
Allowable axial force:
-
1500N
-
Torsional rigidity:
-
12Nm/arc-min
-
Average life:
-
20000 h
-
Backlash:
-
8-16 arcmin
-
Max. input speed:
-
6000rpm
Quick Details
-
Gearing Arrangement:
-
Planetary
-
Output Torque:
-
10-423Nm
-
Input Speed:
-
3000-8000 rpm
-
Output Speed:
-
30-800RPM
-
Warranty:
-
2 years
-
Weight (KG):
-
8.8
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NEWGEAR
-
Product name:
-
PXR90
-
Ratio:
-
3-100
-
Color:
-
Black
-
Certification:
-
ISO9001-2008
-
Allowable radial force:
-
3300N
-
Allowable axial force:
-
1500N
-
Torsional rigidity:
-
12Nm/arc-min
-
Average life:
-
20000 h
-
Backlash:
-
8-16 arcmin
-
Max. input speed:
-
6000rpm
Product Description
Planetary gearbox is a kind of reducer with wide versatility. The inner gear adopts low carbon alloy steel carburizing quenching and grinding or nitriding process. Planetary gearbox has the characteristics of small structure size, large output torque, high speed ratio, high efficiency, safe and reliable performance, etc. The inner gear of the planetary gearbox can be divided into spur gear and helical gear. Customers can choose the right precision reducer according to the needs of the application.
|
Product Name
|
PXR90
|
|
Allowable radial force (N)
|
3300
|
|
Allowable axial force (N)
|
1500
|
|
Torsional rigidity (Nm/arcmin)
|
12
|
|
Max. input speed (rpm)
|
6000
|
|
Rated input speed (rpm)
|
3000
|
|
Noise
|
≤56
|
|
Average life (h)
|
20000
|
|
Backlash
|
1-3arcmin(P1);3-5arcmin(P2)
|
|
Efficiency of Full Load (%)
|
L1≥96;L2≥92
|
|
Degree of protrction
|
IP65
|
|
Operation Temp (℃)
|
90 to -10
|
|
Application
|
Manufacturing Plant, Machine Tool Manuafcturer, Spring Machine Machinery, Manipulator, Textile Machinery, Laser Machinery, Automation Machinery, Printing Machinery, Robotic
|
