Quick Details
-
Place of Origin:
-
Anhui, China
-
Voltage:
-
220V/380V
-
Power:
-
1.5KW
-
Warranty:
-
One year complete warranty and spare parts are provided for free, 1 Year
-
Product Type:
-
Filling Machine
-
Film Width:
-
320 mm or 240mm
-
largest capacity:
-
1000ml
-
Produce Rate:
-
2000 Sachet/H or 2000bags/Hour
-
Material:
-
covered with high quality stainless steel
-
Usage:
-
It is widely used for various kinds of liquid packing
-
parts:
-
come with cursor(photoelectric control Photocell Monitoring device)
-
Experience:
-
Serving the African Market about 20 years
-
liquid material:
-
drinks,juice,milk,soysauce,vinegar,millet wine,oil etc.
-
Certification:
-
ISO 9001:2000
Quick Details
-
Brand Name:
-
KOYO
-
Dimension(L*W*H):
-
1100*900*2450mm
-
Weight:
-
850kg
-
Place of Origin:
-
Anhui, China
-
Voltage:
-
220V/380V
-
Power:
-
1.5KW
-
Warranty:
-
One year complete warranty and spare parts are provided for free, 1 Year
-
Product Type:
-
Filling Machine
-
Film Width:
-
320 mm or 240mm
-
largest capacity:
-
1000ml
-
Produce Rate:
-
2000 Sachet/H or 2000bags/Hour
-
Material:
-
covered with high quality stainless steel
-
Usage:
-
It is widely used for various kinds of liquid packing
-
parts:
-
come with cursor(photoelectric control Photocell Monitoring device)
-
Experience:
-
Serving the African Market about 20 years
-
liquid material:
-
drinks,juice,milk,soysauce,vinegar,millet wine,oil etc.
-
Certification:
-
ISO 9001:2000

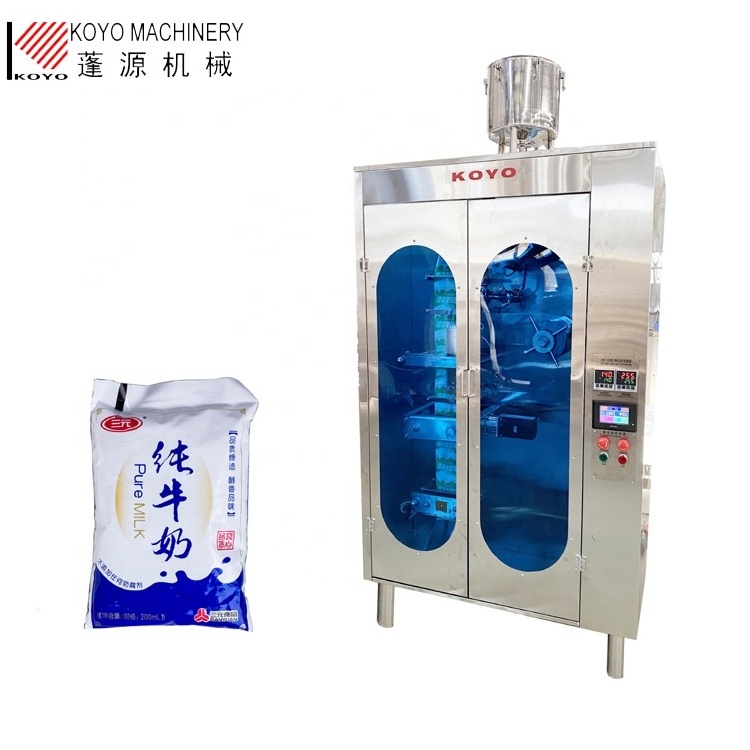

yogurt making machine/milk packaging machines for africa/sachet milk production line
Specifications
come with auto cursor location (or photoelectric control device or Photocell Monitoring)
largest capacity 1000ml
Capable of producing 2000 sachets per hour.
Real factory who manufacture the KOYO brand machinery products in Anhui, China
Serving the African Market about 20 years
Uses a heat-sealing system to ensure that the filled sachet/pouch/bag does not leak water.
It is designed to use wither PE film or composite film bags with preprinted logos or without logos.
automatically complete Bag making, filling, sealing, printing, cutting and counting.
four directions sealed(side-sealed) ensure the products meet state sanitary standard.
Material:LDPE HDPE/LDPE/LLDPE/PE 100% raw material resin, environmental protected printing ink.
Appearance:Transparent film,white,black,black and white film rolls
The sachet milk packing machine is the new product which we devote in lots of efforts. We have got the advanced technology from Electrical companies in Japan and France, so our machine owns excellent configuration and stability. It is your first choose for packing liquid materials.
The sachet milk filling and sealing machine is widely applied in filling and sealing kinds of liquid material, such as drinks, juice, milk, soya-bean milk peanut milk, soysauce, vinegar, millet wine, yellow rice wine, oil , water etc.
All parts come to contact with material and exterior are made of high-quality stainless steel and four directions sealed ensure the products meet state sanitary standard.
The milk bag/pouch filling machine adopts
auto tape supply and drift correct, auto alarm while no film or film break, data screen, auto cursor location (or photoelectric control device) , triangle bag molding, hot sealing and cutting, film moving by grafting, quantitative filling, date printer
and other components, Auto cursor location can automatically correct patterns and supply film-moving length, so as to guarantee that products have compact printing patterns.
Technical Data:
| Model | CBF2000 |
| Film developed width(mm) | 320mm or 240mm |
| largest capacity(ml) | 1000ml |
| Produce Rate | 2000bags/Hour |
| Voltage | 220V/380V 50hz |
| Weight | 850KG |
| Overall dimension | 1100*900*2450mm |
| Power | 1.5KW |
