- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Zeheng
-
Voltage:
-
Customers Local Voltage
-
Power:
-
50Kw
-
Dimension(L*W*H):
-
Length 10m, Width 6m, Height 10.2m
-
Applicable Industries:
-
Aluminum
-
Weight (KG):
-
1000
-
Quality:
-
World Top Quality
-
Price:
-
More Reasonable Price
-
Color Change:
-
Faster Color Change
-
Energy Consumption:
-
Lower Energy Consumption
-
Powder recycle system:
-
Saving Powder
-
Chain Speed:
-
Faster and Stable
Quick Details
-
Machine Type:
-
automatic powder coating machine, Spray Booths, Painting Equipment, Pre-treatment Equipment, Coating Equipment
-
Marketing Type:
-
Hot Product 2022
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Zeheng
-
Voltage:
-
Customers Local Voltage
-
Power:
-
50Kw
-
Dimension(L*W*H):
-
Length 10m, Width 6m, Height 10.2m
-
Applicable Industries:
-
Aluminum
-
Weight (KG):
-
1000
-
Quality:
-
World Top Quality
-
Price:
-
More Reasonable Price
-
Color Change:
-
Faster Color Change
-
Energy Consumption:
-
Lower Energy Consumption
-
Powder recycle system:
-
Saving Powder
-
Chain Speed:
-
Faster and Stable

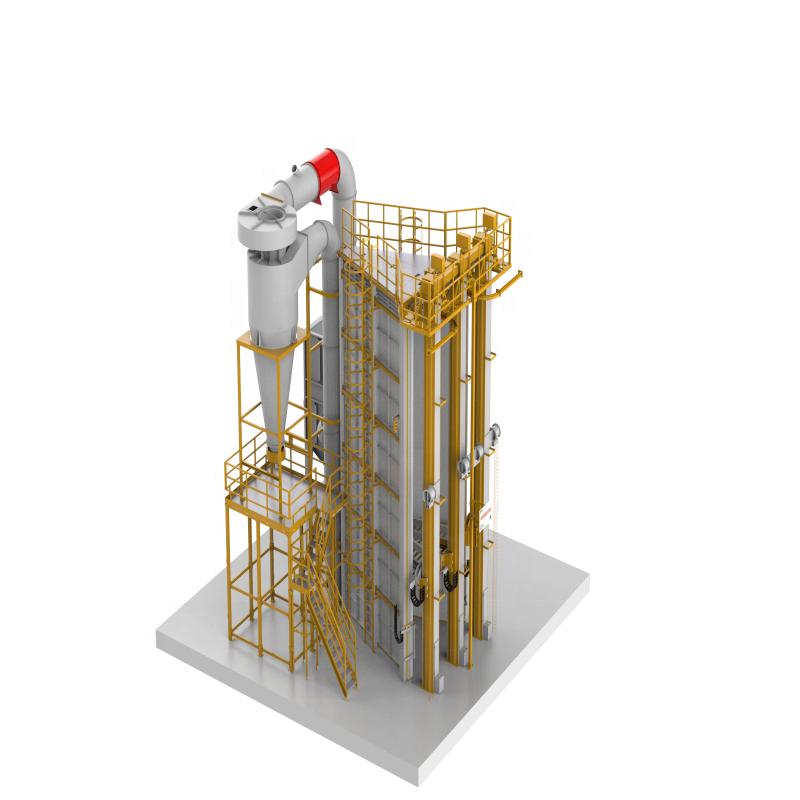

Zeheng Intelligent Powder Booth production line Series-NR01 Vertical Line
Why choose powder coating over paint?
Since
powder finishes are stronger and more durable than paint coats
, the powder will generally guarantee superior, longer-lasting protection to the surfaces of products.
Zeheng provides an overall customizable solution for aluminum profile powder coating.
19 Patents
6 Industry-first functional designs
Energy Saving
Save Powder
Fast Chain Speed
Uniform, Clean
Fast color change
Technical data of our Nr01 Vertical Line
|
Data for Power Supply
|
|
|
|
Voltage/Frequency
|
Three × 400 V / 50 Hz
|
|
|
Power
|
50 kWh
|
|
|
Data for Air Supply
|
|
|
|
Inlet pressure
|
min.6bar / max.10bar
|
|
|
The entry speed of air
|
0.7 m/sec
|
|
|
The water content in the compressed air
|
max.1.3 g/m³
|
|
|
The oil content in the compressed air
|
max.0.1 g/ m³
|
|
|
Compressed air supply points
|
5 points (Powder management center, Final filter, Lift, The electrostatic guns Control cabinets, Manual cleaning point)
|
|
|
Pipe diameter of compressed air supply points (cut-off valve)
|
5.08 cm
|
|
|
The Floor area
|
|
|
|
Equipment body,
|
Length 10 m
width 6 m height 10.2 m |
|
|
Installation space
|
Length 14 m
width 10 m height 14 m |
|
Products Description
Zeheng NR01—Best powder coating solution for Aluminium producer.
Most of our Powder coating booths are customized. Here we only provide Standard technical data.
Our KS50 System
Features of KS50
The
smooth, high-speed reaction during the operation ensures optimal powder coating performance and adequate color change time.
The powder booth can be customized according to the requirements of the specific workpiece.
The reclaim system can be customized according to air volume to Meet different color-changing needs.
The amount of powder and the atomization state can be changed according to the actual needs to achieve different film thicknesses and meet the needs of other products.
Central Control System can be customized using a Windows OS; easy to control and makes your coating process safer and more controllable.
An Automatic recognition system was installed. Which ensures every part can be covered based on workpiece specifications.
