Quick Details
-
Model:
-
ZSTMA, ZSTMB, ZSTMC
-
Type:
-
Curtain, pendent
-
Nominal Diameter:
-
15mm, 20mm, 25mm
-
Thread Size:
-
1/2inch, 3/4inch, 1inch
-
K Factor:
-
21, 42, 18, 28, 45, 90, 140, 40, 45, 60
-
Spray Angle:
-
130-170°
-
Material::
-
Brass
Quick Details
-
Place of Origin:
-
Fujian, China, Quanzhou, China
-
Brand Name:
-
baichuan, baichuan
-
Model Number:
-
BC-FS-20220201689, zstwc
-
Model:
-
ZSTMA, ZSTMB, ZSTMC
-
Type:
-
Curtain, pendent
-
Nominal Diameter:
-
15mm, 20mm, 25mm
-
Thread Size:
-
1/2inch, 3/4inch, 1inch
-
K Factor:
-
21, 42, 18, 28, 45, 90, 140, 40, 45, 60
-
Spray Angle:
-
130-170°
-
Material::
-
Brass

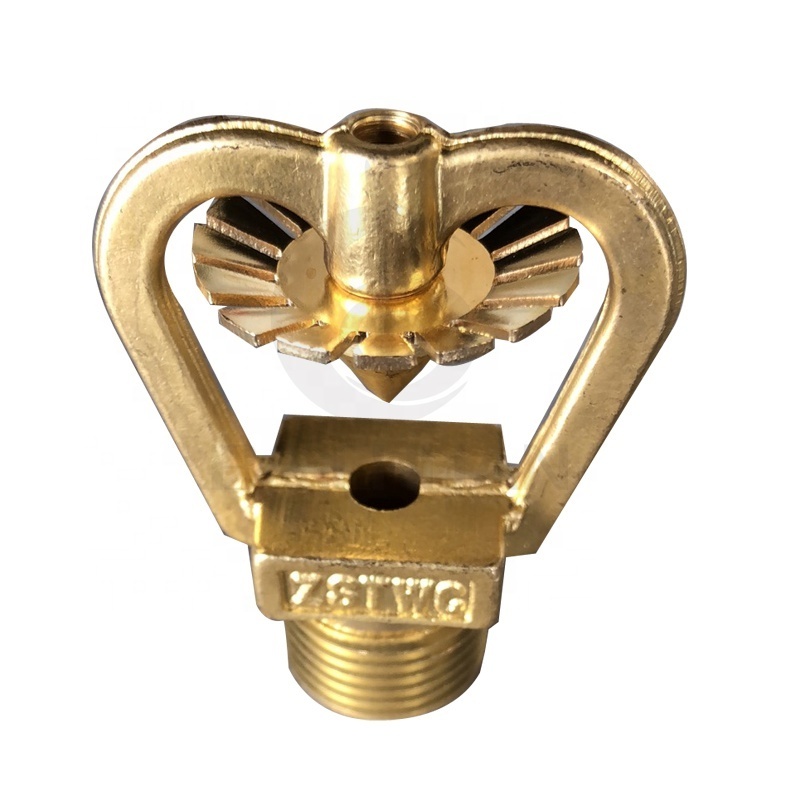

BaiChuan BaiChuan DN15 Brass Open Type D3 Fire Sprinkler Medium Velocity Spray Nozzles for Fire Protection Deluge Valves
1. Type: Curtain, Pendent
2. Nominal Diameter: 15mm, 20mm, 25mm
3. Material: Brass
4. Finish: Chrome Plated
|
Model |
Overall Size(mm) | K Factor | Spray Angle(°) | Thread Size(inch) |
| ZSTMC40-160 | 25*28*42 | 40 | 160 more or less 10 | 1/2 |
| ZSTMC45-160 | 30*34*54 | 45 | 160 more or less 10 | 3/4 |
| ZSTMC60-160 | 42*48*72 | 60 | 160 more or less 10 | 1 |
