Quick Details
-
Production Capacity:
-
35-220bags/min
-
Weight (KG):
-
550
-
Voltage:
-
220V 50/60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TEFUDE
-
Dimension(L*W*H):
-
4000mm *950mm*1600 mm
-
Product name:
-
Down Roll Servo Packaging Machinery
-
Packing Speed:
-
35-220bags/min
-
Core Component:
-
Motor, PLC
-
Sealing type:
-
3 sides sealing
-
Machine type:
-
Automatic Horizontal Pillow Packing Machine
-
Machine Material:
-
Stainless Steel .carbon Steel .etc
-
Machine Dimension:
-
(L)4000*(W)950*(H)1600mm
-
Model:
-
TFD-D320S
-
Bag width:
-
30-220mm
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Marketing Type:
-
New Product
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Sealing
-
Packaging Type:
-
Bags, Pouch
-
Packaging Material:
-
Plastic
-
Production Capacity:
-
35-220bags/min
-
Weight (KG):
-
550
-
Voltage:
-
220V 50/60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TEFUDE
-
Dimension(L*W*H):
-
4000mm *950mm*1600 mm
-
Product name:
-
Down Roll Servo Packaging Machinery
-
Packing Speed:
-
35-220bags/min
-
Core Component:
-
Motor, PLC
-
Sealing type:
-
3 sides sealing
-
Machine type:
-
Automatic Horizontal Pillow Packing Machine
-
Machine Material:
-
Stainless Steel .carbon Steel .etc
-
Machine Dimension:
-
(L)4000*(W)950*(H)1600mm
-
Model:
-
TFD-D320S
-
Bag width:
-
30-220mm
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Marketing Type:
-
New Product
|
Model |
TFD-D320S |
TFD-D380S |
|
Bag Size |
(L)80-480 (W)30-220mm |
(L)80-480 (W)30-220mm |
|
Product Height |
(H)5-35mm |
(H)5-60mm |
|
Packing Speed |
35-220bags/min |
35-220bags/min |
|
Film Width |
80-300mm |
80-450mm |
|
Packing Material |
OPP, PE, PVC, OPP/CPP, PT/PE, KOP/CPP |
|
|
Machine Dimension |
(L)4000*(W)950*(H)1600mm |
|
|
Motor Power |
5.0KW |
5.0KW |
|
Power Supply |
AC 200V 50Hz |
AC 200V 50Hz |
|
Overall Weight |
550kg |
550kg |

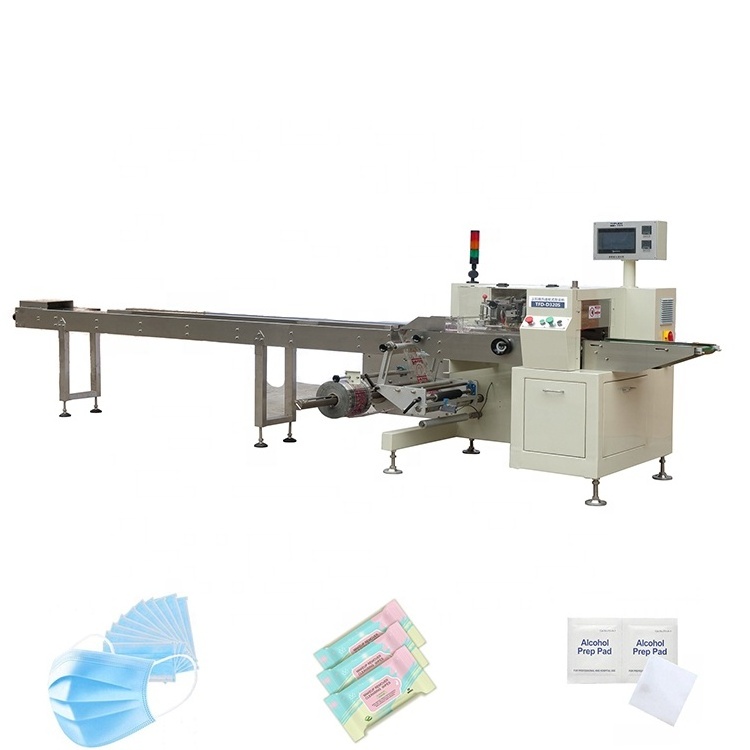

Down paper flow wrapper machine is suitable for various products’ packaging, such as cake, hardware part, preserved fruit,
tissue, disposable items, fresh vegetable, etc.
1. Three-servo driving, motion control system CPU.
2. LCD screen man-machine interface, interactive operation.
3. It’s easy to adjust the packing speed and bag length.
4. High-sensitive photoelectric eye automatic precisely tracking.
5. Independent control of the seal temperature.
6. Suitable for various packaging materials, nice and tight seal.
7. Without product standby function, prevent to cut the packing material.
8. Fault self-diagnosis and elimination.
9. Option device: coding machine, nitrogen charging device, and alcohol spraying device.
|
Click here |
Click here |
Click here |
|
|
Click here |
Click here |
Click here |
Click here |
|
Click here |
Click here |
Click here |
Click here |
|
Pre-sale Service
1. Equipment model selection; 2. According to the special requirements of customers, personalized customized products; 3. Train technicians for customers free of charge; 4. Free professional technical engineers to plan the site on-site and design the best process and plan. 5. Acceptance of the product; 6. Assist the client in drafting the construction plan; |
|
Medium-sales Services:
Tefude has the trained team follow your orders methodically to guarantee the products can be finished on time with high quality.
|
|
After-sales Service
1. One Year Warranty, As long as there is a non-human fault in a year, free replacement parts. 2. Engineer Assignment, Lifelong maintenance, If your equipment breaks down, we will arrange for engineers to repair it. 3. Online Instruction, We open online services, as long as your equipment failure, our engineers will be the first time for one-to-one troubleshooting. |
