Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 240*115*90 mm, 200*200*60 mm
-
Place of Origin:
-
China
-
Brand Name:
-
fuda
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
2060*1730*2580mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
Color:
-
as your request
-
Weight:
-
2t
-
Raw material:
-
cement,cinder,flyash,stone powder,soil,sand and so on
-
Pallet size:
-
850*550*20mm
-
Name:
-
QT4-24B concerte block machine
-
Vibration force:
-
22KN
-
Certification:
-
CE/SGS/ISO9001
Quick Details
-
Type:
-
Paving Block Making Machine
-
Brick Raw Material:
-
Cement
-
Production Capacity (Pieces/8 hours):
-
20160pcs/day(solid block)
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 240*115*90 mm, 200*200*60 mm
-
Place of Origin:
-
China
-
Brand Name:
-
fuda
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
2060*1730*2580mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
Color:
-
as your request
-
Weight:
-
2t
-
Raw material:
-
cement,cinder,flyash,stone powder,soil,sand and so on
-
Pallet size:
-
850*550*20mm
-
Name:
-
QT4-24B concerte block machine
-
Vibration force:
-
22KN
-
Certification:
-
CE/SGS/ISO9001
The same quality, the price is cheaper than me, double compensation! !
1).We can also provide you with detailed and extensive knowledge about your specific machine. With our technical advice, your machine life can be signifcantly extended !
2).We have a global network of distributors, whatever you are, we can provide you with fast delivery and service
QT4-24B factory price power cement solid brick forming machine cement sand block making machine for sale
QT4-24 brick machine factory production flow
- Raw material:use hopper trolley delivery into mixer;need 2 workers
- Mixer:Mixing and produce concrete,then conveyor delivery concrete to block machine hopper;need 1 worker
- Hollow block machine:Forming blocks,then delivery to stacker by block receiver;no need workers
- Maual forklift trolley:delivery new blocks to curing area;need 2 workers
- Curing area:Curing need 10-15 days,then take blocks out from pallet;need 1-2 workers
- Trolley:delivery pallet to hollow block machine area;need 1 worker
-
Sell blocks:Sell blocks and management;1 worker
Total need about 7-8 workers in QT4-24 hollow block machine factory.

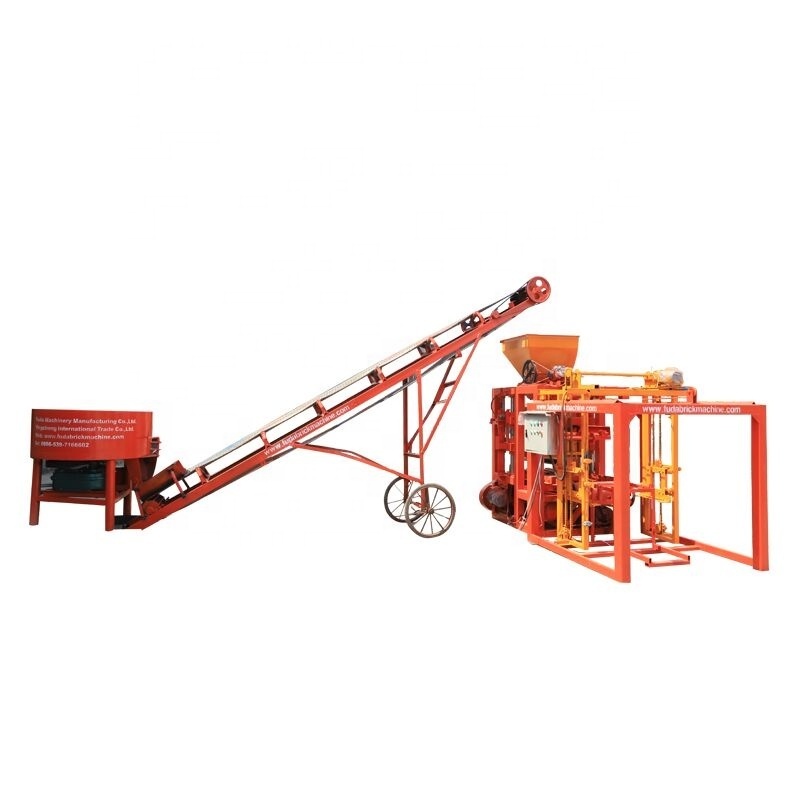

QT4-24 semi Automatic Block Production line
1)QT4-24 automatic brick production line introduce
| A |
QT4-24Host machine a. Block delivery system b. Hopper |
| B | Control box |
| C | 6m conveyor |
| D | JQ350 Mix,Power,7.5KW |
| E | Stacker Laying 4-6 pallets per time power, 1.5kw |
|
Color feeder system
(Optional) |
QT4-24 Color feeder machine--Automatic hydraulic machine |
| Color mixer--1.2m; 7.5kw |
2)QT4-24 Semi Automatic brick plant technical information:
| QT4-18 Host machine total power | 13.45KW |
| Molding cycle | 24s |
| Vibration frequency | 4000-4800HZ |
| Vibration force | 50KN |
| Host brick machine size |
2060*1730*2580mm |
| Weight | 3000KGS |
| Pallet size | 850*550mm |
3).QT4-24 block machine production capacity:
| Item | Block | Production capacity | Photo |
| 1 |
Hollow/Solid block 400-200-200mm |
4 pcs/mold
4800 pcs/8h |
|
| 2 |
Hollow/Solid block 400-150-200mm |
5
pcs/mold
6000 pcs/8h |
|
| 3 |
Hollow/Solid block 400-100-200mm |
7
pcs/mold
8400 pcs/8h |
|
| 4 |
Houdi block 450-120-200mm |
6
pcs/mold
7200 pcs/8h |
|
| 5 |
S shape paver 225-112.5-60mm |
12 pcs/mold
14400 pcs/8h |
|
| 6 |
I shape paver 200-160-60mm |
8 pcs/mold
9600 pcs/8h |
|
| 7 |
Holland paver 200-100-60mm |
12 pcs/mold
14400 pcs/8h |
4).Block machine video link and size
| QT4-24 block machine video link | https://www.youtube.com/watch?v=DVm4NFWndws |
5).Machine Detailed Photo
