Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
Main Chipset:
-
MT7628AN/580MHz
-
Interface:
-
1*10/100M WAN port Auto MDI/MDIX); 4*10/100M LAN ports(Auto MDI/MDIX
-
support:
-
An opition:add 3g 4g module
-
Antenna:
-
2* 2.4G wifi antennas,4*4G antennas,1GPS antennas interface
-
Wireless standard:
-
IEEE802.11n/802.11g/802.11b/802.3/802.3u
-
Wireless speed:
-
Upto 2.4Ghz 300Mbps
-
other Interface:
-
DC slot, 2* SIM card slot, 2* Built-in PCIE interface
-
Material/Dimentions:
-
metal case/110*80*30mm
-
Flash/Ram:
-
8MB/64MB
-
Product name:
-
Two SIM Card wireless router 4g lte wireless router with 5dBi antenna
Quick Details
-
Max. LAN Data Rate:
-
300Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
Main Chipset:
-
MT7628AN/580MHz
-
Interface:
-
1*10/100M WAN port Auto MDI/MDIX); 4*10/100M LAN ports(Auto MDI/MDIX
-
support:
-
An opition:add 3g 4g module
-
Antenna:
-
2* 2.4G wifi antennas,4*4G antennas,1GPS antennas interface
-
Wireless standard:
-
IEEE802.11n/802.11g/802.11b/802.3/802.3u
-
Wireless speed:
-
Upto 2.4Ghz 300Mbps
-
other Interface:
-
DC slot, 2* SIM card slot, 2* Built-in PCIE interface
-
Material/Dimentions:
-
metal case/110*80*30mm
-
Flash/Ram:
-
8MB/64MB
-
Product name:
-
Two SIM Card wireless router 4g lte wireless router with 5dBi antenna

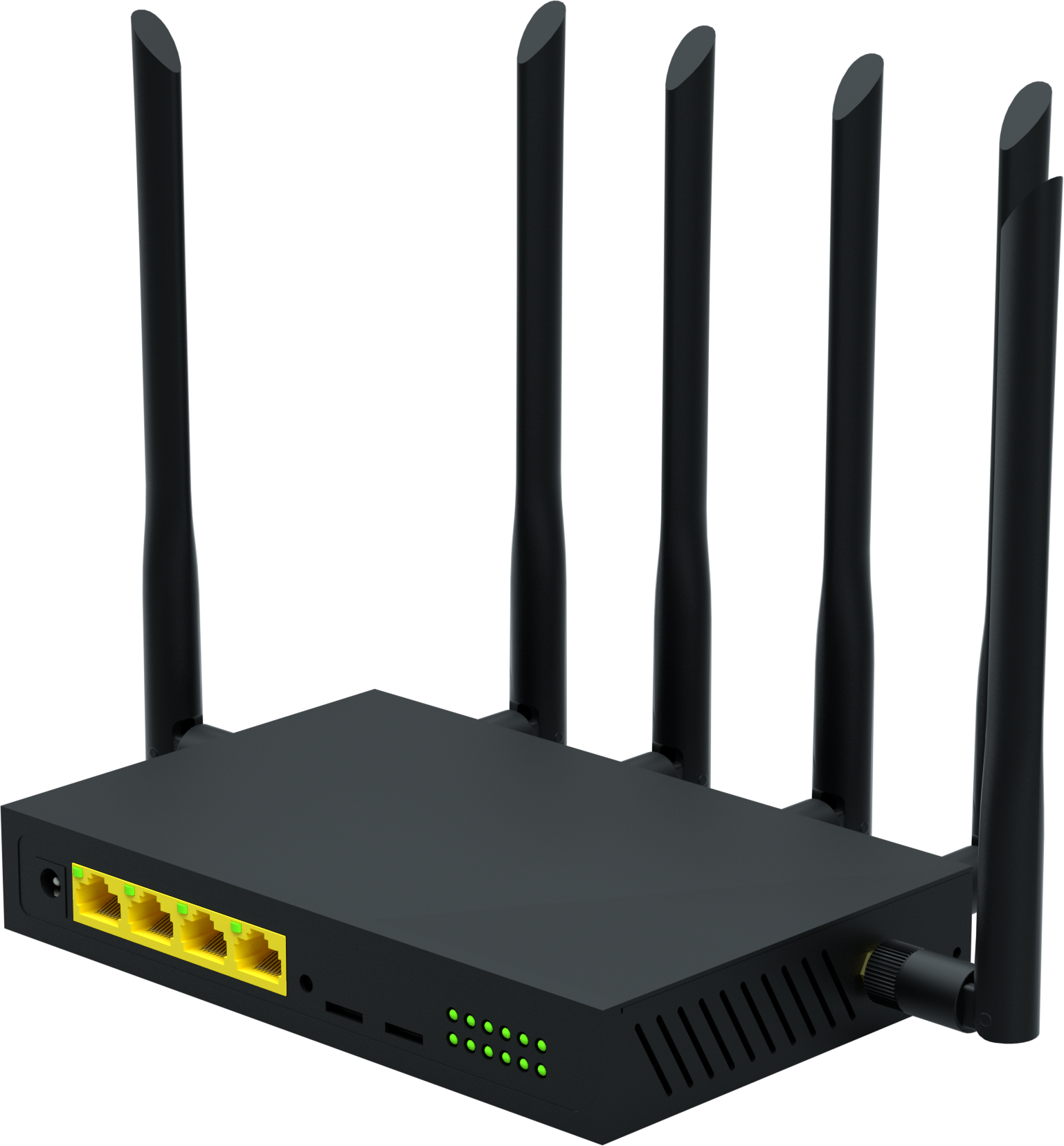

Two SIM Card wireless router 4g lte wireless router with 5dBi antenna
The web price is not including any 3G or 4G module, that means you can not get the Internet by inserting SIM card. Because different country has different operators, here need to install different 3G or 4G module. If you want to order here and also need the 3G or 4G, please check the Frequency below and "Click" the suitable version!
|
Frequency |
Region |
|
|
FDD-LTE: B2/B4/B12 WCDMA: B2/B4/B5 |
North Americas, EMEA |
|
|
LTE-FDD: B1/B2/B3/B4/B5/B6/B7/B8/B28 LTE-TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 |
Latin America, Australia, New Zeland, Taiwan |
|
|
FDD LTE:B1/B3/B5/B7/B8/B20
|
Europe, some Asia Area, Africa etc |
Simply description :
l Adopt MT7628AN chipset, frequency up to 580MHZ, strong performance and stability
l Support IEEE 802.11b, IEEE 802.11g, IEEE 802.11n wireless standard, wireless transmission rate up to 300Mbps
l Support IEEE 802.3/3u standard, 1WAN+4LAN 10/100M adaptive network port, support automatic flip (Auto MDI/MDIX
l Bulit-in dual PCIE interface,support dual 4G module dual SIM card,and also support single 4G module dual SIM card(Automatic switching)
l Built-in hardware watchdog to ensure stable operation of the system
l Support 12V or 32V DC power supply, can be customized according to customer needs
l New OS system, running remote management
Hardware introduction :
WE2806 used MT7628NN chipset , Work frequency can reach 580MHZ, It provides 5 10/100M adaptive Ethernet interfaces, built-in dual PCIE interfaces, dual SIM cards for dual 4G modules, and dual SIM cards for single 4G modules. The simple and clear indicator light can be used to understand the running status of the device at a glance. Has a high cost performance.
Wireless introduction :
Compliant with IEEE802.11n/g/b wireless network protocol, adopting 2x2 MIMO (Multiple Input Multiple Output) architecture, wireless transmission rate up to 300Mbps, external 2 2.4G antennas, 4 4G antenna SMA interfaces, one GPS antenna interface, The wireless signal has a theoretical coverage radius of more than 50 meters in an open environment and a theoretical capacity of 30.
Software introduction :
Adopting a mature and stable SDK system, it provides an intuitive and easy-to-use setting interface; integrates multiple network application functions.
Customizable :
In order to meet the "routing enthusiasts" and some "special industry" applications, WE2806 supports "one-click webpage brush mode", which can be easily implemented.
