Quick Details
-
Max Sewing Thickness:
-
200gsm, 200gsm
-
Voltage:
-
200v/380v
-
Power:
-
20kw
-
Dimension(L*W*H):
-
1300mm*650mm*1500mm
-
Weight:
-
140 KG
-
Max Sewing Speed:
-
15m/min
-
type:
-
JP-60
-
weight:
-
120kg
-
output power:
-
2800w
-
power supply:
-
220v+-50Hz
-
Speed:
-
0-15m/min
-
effective width:
-
0-98mm
-
output frequency:
-
15kHz
-
Certification:
-
CE/ISO9001
Quick Details
-
Core Components:
-
Ultrasonic system
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JIAPU
-
Max Sewing Thickness:
-
200gsm, 200gsm
-
Voltage:
-
200v/380v
-
Power:
-
20kw
-
Dimension(L*W*H):
-
1300mm*650mm*1500mm
-
Weight:
-
140 KG
-
Max Sewing Speed:
-
15m/min
-
type:
-
JP-60
-
weight:
-
120kg
-
output power:
-
2800w
-
power supply:
-
220v+-50Hz
-
Speed:
-
0-15m/min
-
effective width:
-
0-98mm
-
output frequency:
-
15kHz
-
Certification:
-
CE/ISO9001
| Main Product | |||
|
|
|
|

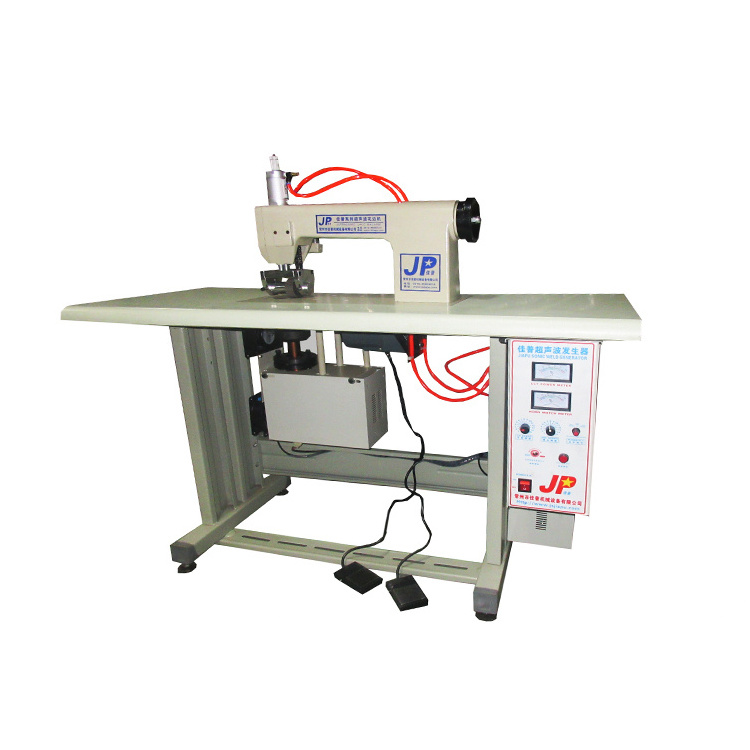

ultrasonic bag sealing machine
Shopping Bag Ultrasonic Non Woven Fabric Bag Sealing Cloth Making Machine Price Manual
Specifications of ultrasonic bag sealing machine
Bag making machine,Handle loop bag making machine
Technical Variables
1.Imported piezoelectric chip, with strong and stable output
2.Pattern wheel made of special alloy steel, wear-resistant and long-lived welding head
3.Removable lace mold, eccentric adjustment, high flexibility and speed, high horizontality
4.Fast operating speed, excellent effects and quality guarantee
5.Assembled from full set of imported components, offering stable performance
Functional description of ultrasonic bag sealing machine
1.Processing with ultrasonic and special steel wheel, without damaging fabric edge or producing burrs
2.Easy replacement of pattern wheel with pattern depending on customer needs
3.Manufacturing without preheating, capable of continuous operation
4.Sewing: Various fabrics can be sewed up directly for waterproofing with ultrasonic without needle and thread.
5.Lace: Various leathers/fabrics can be pressed into any pattern with ultrasonic without burr.
6.Gold stamping: Fast and effective gold stamping can be given to various leathers/fabrics with ultrasonic.
7.Bound edge: Bound edge treatment can be given to various leathers/fabrics with ultrasonic.
.
| Power | 220±5V 50Hz 6A |
| Power input | 1500w-2500w(adjustable) |
| Power output | 20KHz |
| Speed | 0-15m/min |
| Effective width | 90mm |
| Weight | 180KG |
| Dimension | 1300mm×650mm×1500mm |
