Quick Details
-
Dimension(L*W*H):
-
8600*1000*1400mm
-
Weight:
-
3000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-

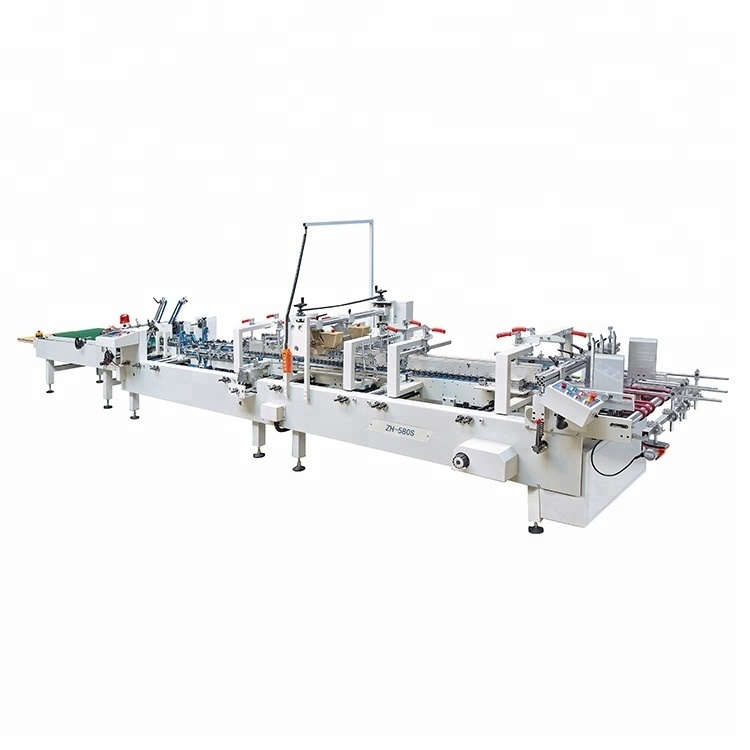

ZH-580S 4kw 3 sides gluing machine
-
Box forming:
-
either side folds; both sides fold; bottom fold
-
Speed:
-
0~220m/min adjustable
-
paper board:
-
180~800g/square meter
-
Feeding way:
-
Continuously Feeding
-
Folding way:
-
1,2 & 4 fold 180 degree; 3 folds 135 degree
-
Glue type:
-
Normal Cold Glue
-
After Warranty Service:
-
Online support
-
Certification:
-
CE Certificate
Quick Details
-
Voltage:
-
AC380v
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZHANTIAN
-
Dimension(L*W*H):
-
8600*1000*1400mm
-
Weight:
-
3000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
ZH-580S 4kw 3 sides gluing machine
-
Box forming:
-
either side folds; both sides fold; bottom fold
-
Speed:
-
0~220m/min adjustable
-
paper board:
-
180~800g/square meter
-
Feeding way:
-
Continuously Feeding
-
Folding way:
-
1,2 & 4 fold 180 degree; 3 folds 135 degree
-
Glue type:
-
Normal Cold Glue
-
After Warranty Service:
-
Online support
-
Certification:
-
CE Certificate
|
Function |
S ingle side gluing +double sides gluing +pre-folding +lock bottom |
|
Usage paper |
180~800g/m2 Paperboard, N/F/E flute microwave corrugated cardboard |
|
Max. Line speed |
300m/min |
|
Power |
4kw 380V |
|
Weight |
3000KG |
|
Package |
3 packages with wooden cases |
|
Delivery Time |
7-21 days |
|
MOQ |
1 set |
|
Loading port |
NINGBO PORT, CHINA |
|
Payment |
3/7 by TT/ LC/ Western Union |
|
Shipping way |
By sea/ truck/ train/ courier |
| Model | ZH-580S | ||||
| Box Type | Straight Line Box | Pre-folding Box | Lock Bottom Box | ||
|
A Max | (mm) | 580 | 580 | 580 |
| A Min | (mm) | 100 | 150 | 150 | |
| B Max | (mm) | 600 | 600 | 600 | |
| B Min | (mm) | 60 | 60 | 60 | |
| C Max | (mm) | 280 | 280 | 280 | |
| C Min | (mm) | 45 | 70 | 70 | |
| F Max | (mm) | 30 | 30 | 30 | |
| F Min | (mm) | 8 | 8 | 8 | |
1.Q:What is the machine warranty?
A:One year.
2.Q:Does your machine with CE certificate?
A:Yes , issued by Italian organization
3.Q:What is the production time while placing order?
A:About 2 0 days
4.Q:What is the delivery time?
A:15-30 days after get the payment.
5.Q:Can your company handle shipping for customers?
A:Yes , just give us destination sea port or container yard
6.Q:Does the packing strong?
A:Yes, all packages are double-checking before delivery
7.Q:How about after-sales service process?
A: We offer life time A.S.S. Please feel free to contact after-sales department.
8.Q:Are you manufacturer or trading company?
A: We are manufacturer .
9.Q:Do you have machines in stock?
A: For standard model, we have a large quantity in stock. For special model,
we need 20-30 days to produce it for you.
10.Q:Do you inspect machines before packing ?
A: Of course we do. we have QC department to debug the machine before packing
11.Q:What’s the payment term?
A:T/T 30% in advance, the balance paid before delivery.
We also accept payment via West Union and L/C.
12. Q: Do you accept factory visiting?
A: We are highly greeting for your visiting.
