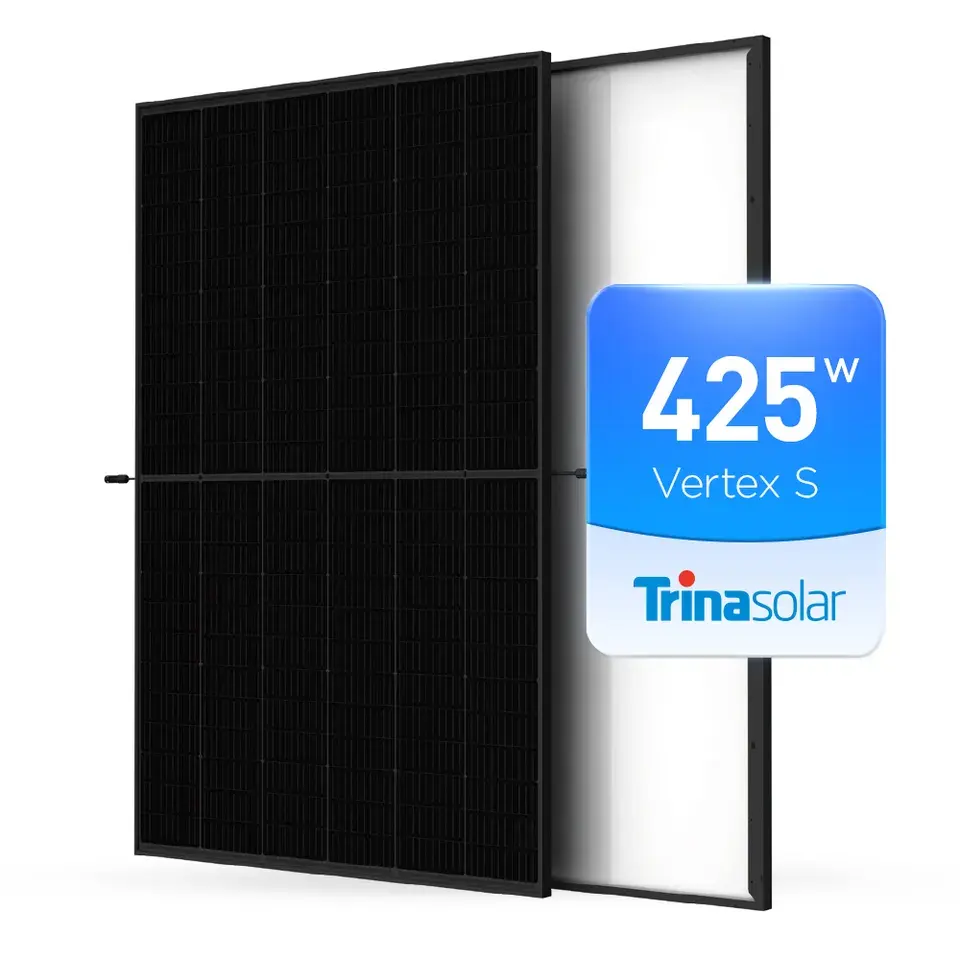

Quick Details
-
Warranty:
-
15 years
-
Brand Name:
-
Trina
-
Model Number:
-
TSM-DE09R.05
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1762x1134x30mm
-
Product name:
-
Solar Panel
-
Material:
-
Mono PREC
-
Power:
-
405W~425W
-
Solar cell:
-
144 cells
-
Weight:
-
21.8kg
-
Frame:
-
Anodized Aluminium Alloy
-
Glass:
-
3.2mm Tempered Low Iron
-
Application:
-
Commercial
-
Feature:
-
High Efficiency Mono Solar Panel
-
Connector:
-
MC4 Compatible Connector
-
Certificate:
-
CE
Quick Details
-
Cell size:
-
210mmx210mm
-
Type:
-
PERC, Half Cell, All Black
-
Panel Efficiency:
-
21.3%
-
Warranty:
-
15 years
-
Brand Name:
-
Trina
-
Model Number:
-
TSM-DE09R.05
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1762x1134x30mm
-
Product name:
-
Solar Panel
-
Material:
-
Mono PREC
-
Power:
-
405W~425W
-
Solar cell:
-
144 cells
-
Weight:
-
21.8kg
-
Frame:
-
Anodized Aluminium Alloy
-
Glass:
-
3.2mm Tempered Low Iron
-
Application:
-
Commercial
-
Feature:
-
High Efficiency Mono Solar Panel
-
Connector:
-
MC4 Compatible Connector
-
Certificate:
-
CE
Products Description
Details Images
Automatic Production
Solar cell Welding
Use automatic welding machine to connect solar cells in series
All the solar cells are made by top class brand, like TW Solar, Longi Solar
After setting up the program according to the requirements of the process drawings, the typesetting machine will automatically
typeset the battery string. High precision, high efficiency, low defect rate
Automatic laying of EVA, backing, automatic cutting of excess backing material 100% automation of the entire production process
Use the mirror to inspect the appearance of the solar modules before lamination, and repair them if they are defective;
Through the turning machine, completely inspect the solar panel after lamination, and record the defects and feedback to the
previous process
Flash Testing
Including temperature, power, voltage, current and other related tests, ensure 0~+5W Positive Power Tolerance
Including temperature, power, voltage, current and other related tests, ensure 0~+5W Positive Power Tolerance
