Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GINYI
-
Dimension(L*W*H):
-
180cm*115cm*270cm
-
Weight:
-
1600 KG
-
Power:
-
1.5KW
-
Webbing machine:
-
Jacquard Needle Loom Weaving Machine
-
Heads:
-
8 heads
-
Reed Width:
-
30 mm
-
Jacquard Hook Quantity:
-
240pcs
-
Heald Frame:
-
8 pcs
-
Creel:
-
18 pcs
-
Pick Repeat:
-
8-40
-
Weft Density:
-
3.5-36.7 Weft/cm
-
Motor.HP:
-
1.5 HP
-
Max.Speed R.P.M:
-
800-900 RPM
Quick Details
-
Type:
-
Jacquard Loom
-
Production Capacity:
-
1500-2000 for 20 hours
-
Application:
-
Belt
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GINYI
-
Dimension(L*W*H):
-
180cm*115cm*270cm
-
Weight:
-
1600 KG
-
Power:
-
1.5KW
-
Webbing machine:
-
Jacquard Needle Loom Weaving Machine
-
Heads:
-
8 heads
-
Reed Width:
-
30 mm
-
Jacquard Hook Quantity:
-
240pcs
-
Heald Frame:
-
8 pcs
-
Creel:
-
18 pcs
-
Pick Repeat:
-
8-40
-
Weft Density:
-
3.5-36.7 Weft/cm
-
Motor.HP:
-
1.5 HP
-
Max.Speed R.P.M:
-
800-900 RPM

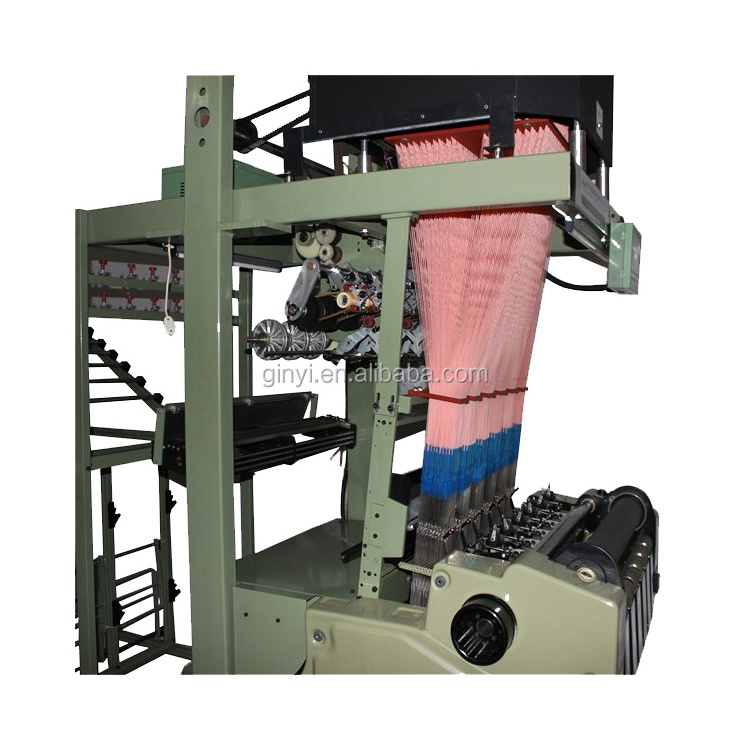

GINYI Manufacturing High Speed Cotton Label Weaving Loom Computerized Jacquard Webbing Weaving Machine Woven Band Making Machine
Product Description
| MODEL | GNC-8/30/240 |
| HEADS | 8 |
| REED WIDTH(MM) | 30 |
| JACQUARD HOOKS | 240 |
| HEALD FRAME | 8 |
| CREEL ENDS | 18 |
| PICK REPEAT | 8-40 |
| WEFT DENCITY | 3.5-36.7 |
| MOTOR. HP | 1.5 |
| SPEED. RPM | 800-900 |
OTHER MODEL
| MODEL | GNC-2/110(160) | GNC-4/80(110) | GNC-6/55(65) | GNC-8/45(55) | GNC-10/30(45) | GNC-12/20(30) |
| HEADS | 2 | 4 | 6 | 8 | 10 | 12 |
| REED WIDTH(MM) | 110/160 | 80/110 | 55/65 | 45/55 | 30/45 | 20/30 |
| JACQUARD HOOKS | 480/640/1120 | 320/384/560 | 320/384/480 | 192/240/320/384 | 192/240/320/384 | 192/240/320 |
| HEALD FRAME | 8 | |||||
| CREEL ENDS | 18 | |||||
| PICK REPEAT | 8-40 | |||||
| WEFT DENCITY | 3.5-36.7 | |||||
| MOTOR. HP | 1.5 | |||||
| SPEED. RPM | 600-750 | 750-850 | 800-900 | 800-900 | 800-900 | 800-900 |
