Quick Details
-
Surface working::
-
epoxy ground coat
-
Roof sheet:
-
cold formed steel, galvanized lifting
-
Wall Panel:
-
75mm Fiber glass
-
Usage:
-
office labor camp
-
Door:
-
sandwich panel single door
-
window:
-
PVC, white color
-
loading:
-
Permitted loading: 2.0KN/m2
-
Size:
-
20FT/40FT Customized
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QDBB-C1
-
Function:
-
used as office living room
-
Surface working::
-
epoxy ground coat
-
Roof sheet:
-
cold formed steel, galvanized lifting
-
Wall Panel:
-
75mm Fiber glass
-
Usage:
-
office labor camp
-
Door:
-
sandwich panel single door
-
window:
-
PVC, white color
-
loading:
-
Permitted loading: 2.0KN/m2
-
Size:
-
20FT/40FT Customized
Products Description

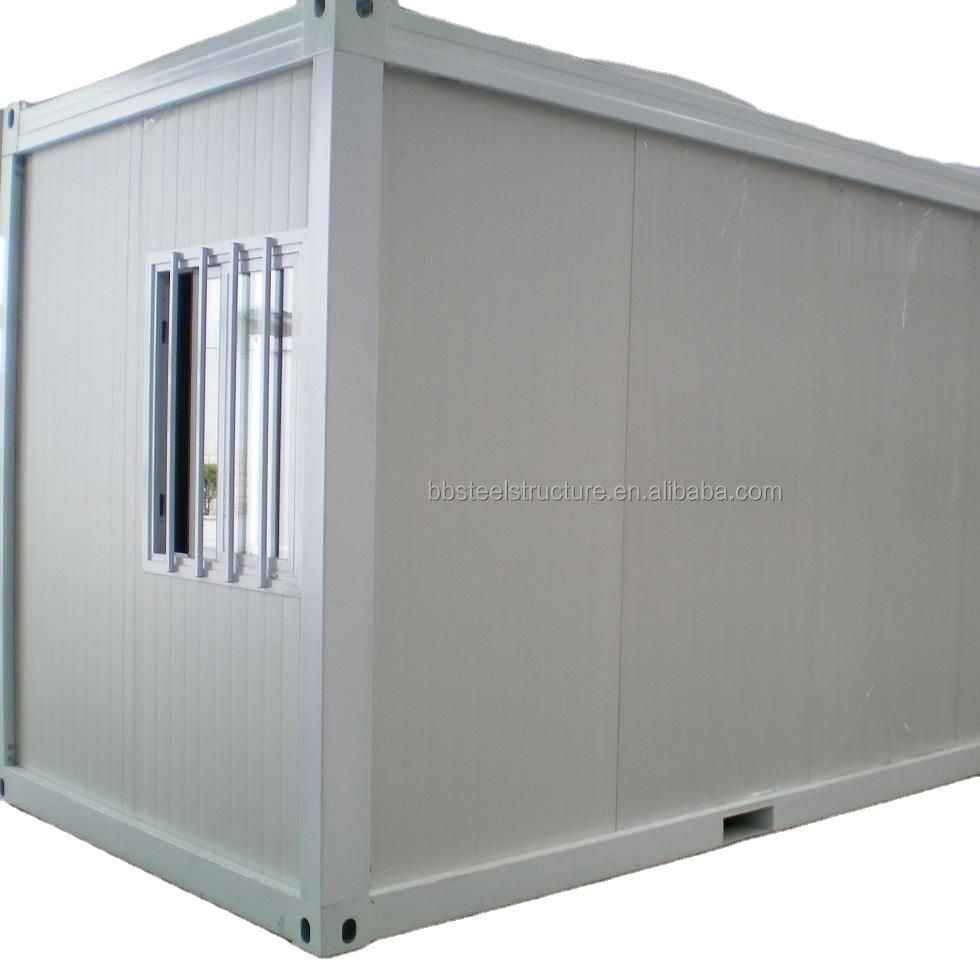

Flat packed container house
The standard container houses for various purposes are suitable for international container transport. It is of appropriate
external dimensions and has connections for lifting,fixing and compounding.The construction enables compounding of individual containers in longitudinal and transverse directions without limits. It also enables compounding of containers in 2 floors in height (ground floor + first floor), or in 3 floors in height of warehousing of these container (ground floor +2floors). The frame of container house are light steel structure,including floor,roof and four corner frame. The external wall is light sandwich panel. The building types and specific physical properties offer comfortable interior condition. The materials used are environmental friendly.The container house can be combined shipped. Each 4 container house can combine one standard container,which lower the transportation cost.
external dimensions and has connections for lifting,fixing and compounding.The construction enables compounding of individual containers in longitudinal and transverse directions without limits. It also enables compounding of containers in 2 floors in height (ground floor + first floor), or in 3 floors in height of warehousing of these container (ground floor +2floors). The frame of container house are light steel structure,including floor,roof and four corner frame. The external wall is light sandwich panel. The building types and specific physical properties offer comfortable interior condition. The materials used are environmental friendly.The container house can be combined shipped. Each 4 container house can combine one standard container,which lower the transportation cost.
Product Paramenters
Sizes 1) 20ft: 6055*2435*2896mm 2) 40ft: 12192*2435*2896mm
Design parameter
1) Life span: up to 20years
2) Floor Live load: 2.0KN/m2
3) Roof Live load: 0.5KN/m2
4) Wind load: 0.6KN/m25) Earthquake-resistance: Grade 8, Fire-proof: Grade 4
5)
Storey: As customer's requirements
|
Roof structure
|
set
|
1
|
6055*2435*200mm, Main roof frame: thikcness=2.5mm,
height=180mm,
galvanization thickness≥80g/m2; Roof purlin: C80*40*15*2.0,
galvanized. Q235B steel |
|
|
|
Floor structure
|
set
|
1
|
6055*2435*180mm, Main floor frame: thikcness 3.5mm,
height 160mm, galvanization thickness≥80g/m2;
Floor purlin:C120*40*15*2.0,
galvanized. Q235B steel |
|
|
|
Corner pillar
|
set
|
1
|
210*150*30mm, length=2535mm, thickness=3mm, galvanization thickness≥80g/m2
|
|
|
|
Paint
|
set
|
1
|
Epoxy primer & Polyurethane finishing coat, paint film thickness ≥80μm, white color
|
|
|
|
Floor System
|
set
|
1
|
1.5mm thickness PVC leather with glue 18mm thickness fiber cement board/100mm thickness Fiber glass with aluminum foil, Density=14kg/m3 0.25mm color steel sheet, Zinc thickness≥70g/m2
|
|
|
|
Wall System
|
set
|
1
|
V-1150type, 75mm Fiber glass sandwich panel with 0.4mm Aluminum-zinc color steel sheet on both sides(white color), insulation
density=50 kg/m3 |
|
|
|
Wall System
|
set
|
1
|
Light steel single open door (W850*H2030mm)
|
|
|
|
Wall System
|
set
|
1
|
PVC sliding window, double glass 5mm thickness, with screen and security bar (W800*H1100mm)
|
|
|
Details Images
Customer Photos
Installation Instructions
FAQ
1.: Are you factory or trading company?
A: We are factory.
2: How about your production capacity?
A: Pre-engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 90000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 3200 units monthly. Container house: 700 units monthly. Light steel villa: 9000 sqm monthly.
3: How about your quality control?
A: We have got certificate ISO9001:2015, certificate CE EN 1090. Products processing through cutting, bending, welding, shotlasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.
4: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client requirement.
5: How about your delivery time?
A: Generally within 25 days, it is according to order quantity, partial shipment is allowed for big order.
6: What about the installation?
A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.
7: How to ensure the product you supply is what we want exactly?
A: Before placing order, our sales and engineers team will provide you the suitable solution according to your requirements.Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.
A: We are factory.
2: How about your production capacity?
A: Pre-engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 90000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 3200 units monthly. Container house: 700 units monthly. Light steel villa: 9000 sqm monthly.
3: How about your quality control?
A: We have got certificate ISO9001:2015, certificate CE EN 1090. Products processing through cutting, bending, welding, shotlasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.
4: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client requirement.
5: How about your delivery time?
A: Generally within 25 days, it is according to order quantity, partial shipment is allowed for big order.
6: What about the installation?
A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.
7: How to ensure the product you supply is what we want exactly?
A: Before placing order, our sales and engineers team will provide you the suitable solution according to your requirements.Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.
