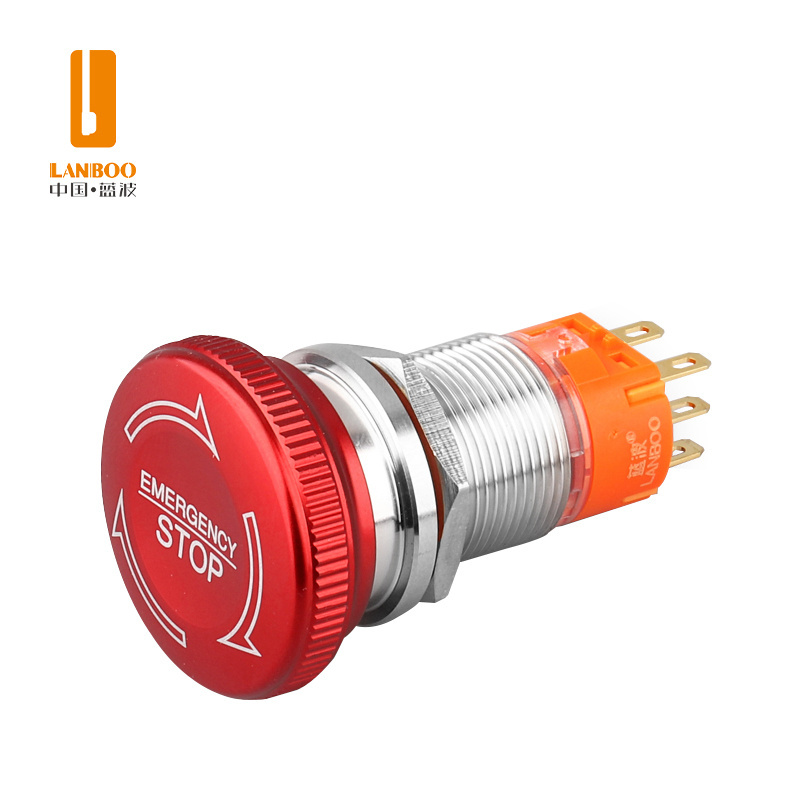

LANBOO Maintained Board Back Type Rotation-Releasing Rotary Emergency Stop Explosion-Proof Button Switch 19/22mm With LED 2NO2N

LANBOO Maintained Board Back Type Rotation-Releasing Rotary Emergency Stop Explosion-Proof Button Switch 19/22mm With LED 2NO2N

FOB Reference Price: Get Latest Price

≥1 Pieces

US $6

≥100 Pieces

US $5.9

≥500 Pieces

US $5.8

≥1000 Pieces

US $5.6

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: LANBOO

Model Number:: LBM5.1 5.2 5.4

Diameter:: 19mm,22mm

Switch Combination:: 1NO1NC/2NO2NC

Operation type:: Latching

Lamp voltage:: 2V/3V/6V/12V/24V/36V/110V/220V/250V

Rated Voltage/Current:: AC250V/3A

Shell Metal:: Stainless Steel

Product name:: Rotation-Releasing Rotary Emergency Stop Explosion-Proof

Certification:: CCC,CE

Quick Details

Protection Level:: IP67 IK10

Max. Current:: lth:5A

Max. Voltage:: 250VAC

Place of Origin:: Zhejiang, China

Brand Name:: LANBOO

Model Number:: LBM5.1 5.2 5.4

Diameter:: 19mm,22mm

Switch Combination:: 1NO1NC/2NO2NC

Operation type:: Latching

Lamp voltage:: 2V/3V/6V/12V/24V/36V/110V/220V/250V

Rated Voltage/Current:: AC250V/3A

Shell Metal:: Stainless Steel

Product name:: Rotation-Releasing Rotary Emergency Stop Explosion-Proof

Certification:: CCC,CE

Product Description

1.M5.1 M5.2 M5.4 type anti slip design,with super self-locking performance comfortable operating feel;

2.With super metal texture and high-grade appearance design;

3.New products,IP67, IK10

4.Mechanical life:up to 250,000 cycles;

5.Optional 1NO1NC,2NO2NC function;

6.The internal use of high quality silver contact.

7.It has applied of many patents ,CCC,CE,ISO9001 approved;

Specification

The Others Parameters
Project	Parameter	Project	Parameter
Modle No.	LBM5.1 M5.2 M5.4 1NO1NC 2NO2NC	Action trip	3.5+0.2mm
Contact Resistance	≤50mΩ	Actuating Force	about 8±0.2N
Insulation Resistance	≥1000mΩ	Mounting panel thickness	≤12mm
Dielectric Strength	2500VAC,50HZ,1min	Nut torque	0.8~1.2N.m
Ambient Temperature	-40℃~+80℃	Outshell	304 Stainless Steel(M5.1 M5.4), H57/59 Nickel plated brass(M5.2)
Protection Levels	IK10	LED Ring	PC
Electrical Life	Impedance load AC220V/1A, DC24V/1A: 100,000 times, AC220V/3A, DC24V/3A: 50,000 times, AC220V/5A, DC24V/5A: 0.5000 times,	Nut Base Seat/ Bottom Seat	H57/59 Nickel plated brass PA66
Mechanical Life	250,000 times	Pins Contact	H65 Silver Plated AgSnO2(RoHS)
Waterproof	IP67	Spring	Improved steel wire

Led Lamp Parameters
Project	Parameter
Led type	High Brightness LED lamp,cool
Luminous color	Red,Green,Blue,Yellow,White
Rated Voltage	AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V
Rated Current	≤20mA
Reference Life	50,000hours
