Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CXNOFIA
-
Dimension(L*W*H):
-
4960*2650*2700
-
Weight:
-
3100 KG
-
Name:
-
Mini wheat combine harvester price rice combine harvester
-
Function:
-
Combined Grain Harvester
-
Power:
-
88HP/98HP
-
SUN-ROOF:
-
SUN-ROOF: SUNROOF
-
Engine type:
-
Diesiel Enginee
-
BRAND:
-
CXNOFIA
-
WARANTY:
-
1 YEARS
-
Suitable for:
-
FARM LAND
Quick Details
-
Number of Rows:
-
6
-
Working Width(mm):
-
2200 mm
-
Tractor Power(HP):
-
50 - 200 HP
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CXNOFIA
-
Dimension(L*W*H):
-
4960*2650*2700
-
Weight:
-
3100 KG
-
Name:
-
Mini wheat combine harvester price rice combine harvester
-
Function:
-
Combined Grain Harvester
-
Power:
-
88HP/98HP
-
SUN-ROOF:
-
SUN-ROOF: SUNROOF
-
Engine type:
-
Diesiel Enginee
-
BRAND:
-
CXNOFIA
-
WARANTY:
-
1 YEARS
-
Suitable for:
-
FARM LAND
Product Description

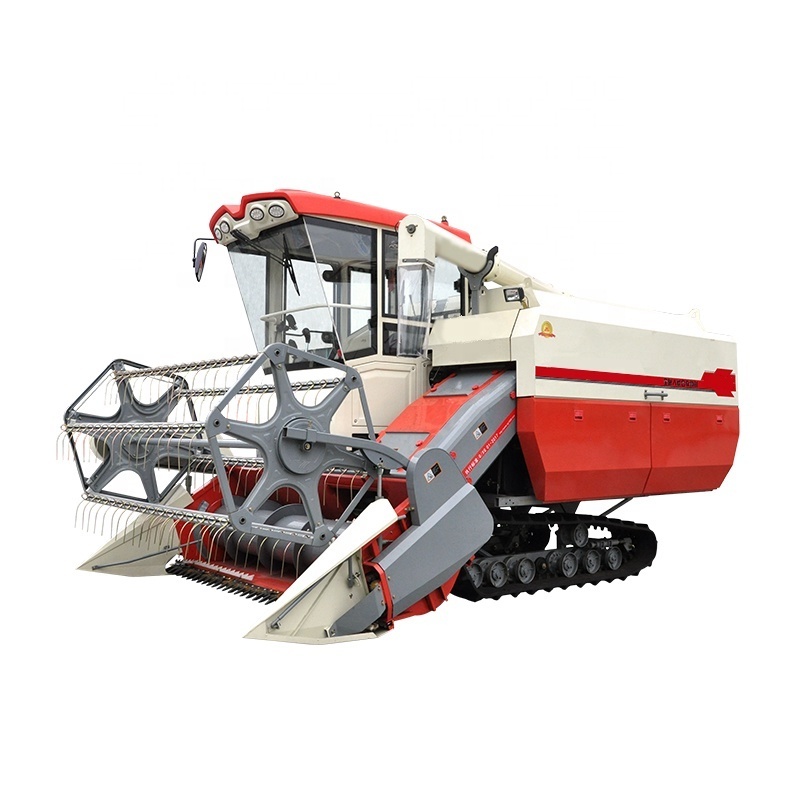

Mini wheat combine harvester price rice combine harvester
Combine harvester configured is to efficiently rake, using a raking auger. The ear-tip side part of divider-side grain stems harvested using a cutting blade device, and to prevent damage to the divider. A combine harvester according to the present invention is provided with a divider, a raking reel, a cutting-blade device, a raking auger, a platform, and a conveyor, wherein the combine harvester is characterized in that the raking auger is composed of a cylindrical drum, helical blades projecting from the outer circumferential surface of the drum, and being capable of lateral movement for orienting the grain stems to the conveyor, and a plurality of rod-shaped raking fingers capable of radially extending and retracting from the outer peripheral surface of the drum for guiding the grain stems to the conveyor. At least one of the fingers being provided in a position on the drum aligned within two pitches of receiving blades from the outermost effective receiving blade of the cutting-blade device end section to the inner side in plan view.
![](https://cdn.bestsuppliers.com/seo_products_img/cxnofia/eb23a846a16e33c3951d55acba63f9a4.jpg!/rotate/180)
![](https://cdn.bestsuppliers.com/seo_products_img/cxnofia/7057a1b0bda932e28523229a73e767c9.jpg!/rotate/180)
![](https://cdn.bestsuppliers.com/seo_products_img/cxnofia/b2f93cc9f6323506b944b8af5a9004c4.jpg!/rotate/180)
MODEL
|
4LZ-5.0
|
|
|
STRUCTURE
|
SELL-PROPELLED FULL FEED TRACK HARVESTER
|
|
|
|
|
|
|
OVERALL DIMENSION
|
LENGTH(MM)
|
4950
|
|
(OPRATION)
|
WIDTH(MM)
|
2650
|
|
|
HEIGHT(MM)
|
2700
|
|
WEIGHT(KG)
|
3100 KGS
|
|
|
ENGINE
|
MODEL
|
4D35ZT
|
|
|
TYPE
|
INLINE,WATER-COOL,FOUR-STROKE,DIRECT INJECTION
|
|
|
POWER
|
65KW/88HP 73.5KW/98HP
|
|
|
ROTATION SPEED(R/MIN)
|
2400 R/MIN
|
|
|
FUEL CAPACITY(L)
|
130
|
|
GEARBOX
|
HYDRAULIC GEAR BOX
|
75/80
|
|
CABIN/SUN-ROOF
|
SUN-ROOF
|
ROOF
|
|
WALKING PART
|
RUBBER TRACK(MM)
|
95*51*450/500/500
|
|
|
TRACK GAUGE(MM)
|
1150
|
|
|
MIN GROUND CLEARNCE(MM)
|
350
|
|
HARVESTING PART
|
CUTTING WIDTH(MM)
|
2200
|
|
|
FEEDING CAPACITY(KG/S)
|
5
|
|
|
LIFTING TYPE OF HEADER
|
HYDRAULIC
|
|
THRESHING PART
|
THRESHING TYPE
|
AXIA LFLOW,BEAT BAR
|
|
OPERATION PART
|
45CC
|
|
|
CLEANING TYPE
|
VIBRATION SIEVE,CENTRIFUGAL FAN
|
|
|
GRAIN TYPE
|
GRAIN UNLOADING TYPE
|
360 ROTATY UNLOADING
|
|
|
GRAIN TANK VOLUME(M3)
|
1.4/1.5
|
|
WORKING EFFICIENCY(ACRE/H)
|
|
|
|
CROPS
|
RICE,WHEAT,RAPESEDD
|
|
Product Features
• Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
• High pressure double crank to control the die opening and closing.
• Running in a high automatization and intellectualization,no pollution.
• Apply a linker to connect with the air conveyor, which can directly inline with filling machine.
Details Images
![](https://cdn.bestsuppliers.com/seo_products_img/cxnofia/88f164879faa3bd0b49842090c96cf5c.png!/rotate/180)
Warehouse
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profie
Our company ,
located in Hangzhou City, Zhejiang Province, is a leading harvester parts company in China. The company has a professional and experienced team which has been working on international trade for many years. We not only can supply high quality products but also provide our best service. The aim of our company is to seek for a win-win partnership so we are committed to develop and maintain long-term cooperation relationship with our customers.
Main products are all kinds of harvester and tractor spare parts, such as undercarriage parts, rubber track, shafts&gears, and other small accessories. Our productions are exported to many countries like Egypt, India, Pakistan, Malaysia, Tanzania, Kenya, Sri Lanka, Myanmar, Ecuador, Indonesia, Peru, Thailand, Vietnam, Morocco and other countries of Southeast Asia, the Middle East.
Main products are all kinds of harvester and tractor spare parts, such as undercarriage parts, rubber track, shafts&gears, and other small accessories. Our productions are exported to many countries like Egypt, India, Pakistan, Malaysia, Tanzania, Kenya, Sri Lanka, Myanmar, Ecuador, Indonesia, Peru, Thailand, Vietnam, Morocco and other countries of Southeast Asia, the Middle East.
