Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Cameo
-
Dimension(L*W*H):
-
430x385x410
-
Weight:
-
20
-
Rated power/speed:
-
3HP/3000rpm
-
Type:
-
Single cylinder/Horizontal/Four stroke/Air cooled
-
Combustion system:
-
Vortex
-
Bore*stroke(mm):
-
68x54
-
Displacement(CC):
-
196
-
Enging speed(rpm):
-
3000
-
Starting system:
-
Recoil
-
Fuel/lubrication:
-
0#diesel fuel(summer), 10#diesel fuel(winter)/SAE 10W/30
-
Fuel capacity(L):
-
3.0
-
Lubrication capacity(L):
-
0.7
-
Loading Q'TY(20GP/40HQ):
-
426/1250
Quick Details
-
Displacement:
-
196CC
-
Emission Standard:
-
EURO 5
-
Power:
-
3HP
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Cameo
-
Dimension(L*W*H):
-
430x385x410
-
Weight:
-
20
-
Rated power/speed:
-
3HP/3000rpm
-
Type:
-
Single cylinder/Horizontal/Four stroke/Air cooled
-
Combustion system:
-
Vortex
-
Bore*stroke(mm):
-
68x54
-
Displacement(CC):
-
196
-
Enging speed(rpm):
-
3000
-
Starting system:
-
Recoil
-
Fuel/lubrication:
-
0#diesel fuel(summer), 10#diesel fuel(winter)/SAE 10W/30
-
Fuel capacity(L):
-
3.0
-
Lubrication capacity(L):
-
0.7
-
Loading Q'TY(20GP/40HQ):
-
426/1250
|

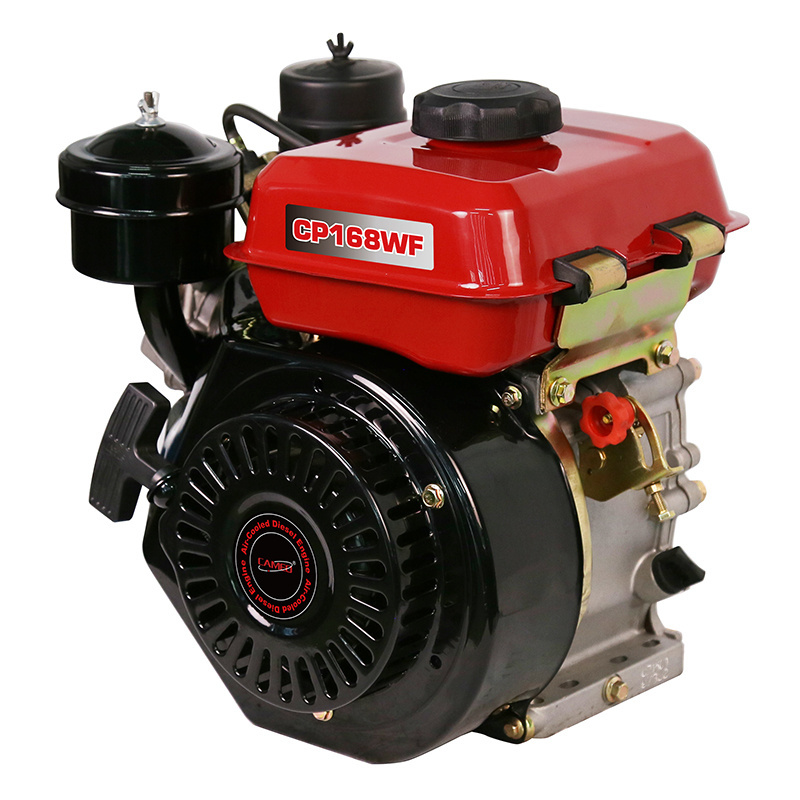

Model
|
CP168WF
|
CP170WF/CP170WFE
|
|
|
Type
|
Single cylinder/ Horizontal/ 4 stroke/ air cooled/ Vortex
|
|
|
|
Combustion system
|
Vortex
|
Vortex
|
|
|
Bore*stroke(mm)
|
68*54
|
70*60
|
|
|
Displacement(cc)
|
196
|
231
|
|
|
Engine speed(rpm)
|
3000
|
3000
|
|
|
Rated output(hp)
|
3
|
4.5
|
|
|
Starting system
|
Recoil
|
Recoil/ Electric
|
|
|
Fuel/ lubrication(L)
|
0 #diesel fuel(summer), 10 #diesel fuel(winter)/ SAE 10W/30
|
|
|
|
Fuel capacity(L)
|
3.0
|
3.5
|
|
|
Lubrication capacity(L)
|
0.7
|
0.8
|
|
|
N.W/G.W(kg)
|
20/22
|
23/25
|
|
|
Dimensions(mm)
|
430*385*410
|
460*415*435
|
|
|
Loading Q'TY(20GP/40HQ)
|
426/1250
|
350/700
|
|
Here is brief introduction of Camel Power as below:
* 20 years' experience in general machine industry.
* the company has its own workshop with an area of more than 50000 square meters and more than 200 employees.
* It has five automatic production lines and advanced online inspection equipment, with an annual production capacity of more than
500,000 units.
* Our products have been exported to nearly 100 countries and regions around the world.
* Main products: generator sets, welding machine, water pump, air compressor and other terminal series
* 20 years' experience in general machine industry.
* the company has its own workshop with an area of more than 50000 square meters and more than 200 employees.
* It has five automatic production lines and advanced online inspection equipment, with an annual production capacity of more than
500,000 units.
* Our products have been exported to nearly 100 countries and regions around the world.
* Main products: generator sets, welding machine, water pump, air compressor and other terminal series
