Quick Details
-
Model Number:
-
3-FM-4
-
Place of Origin:
-
Jiangsu, China
-
Weight:
-
0.71KG
-
Sealed Type:
-
Sealed
-
Maintenance Type:
-
Free
-
Voltage:
-
6V
-
Size:
-
70x47x100x104mm
-
Product name:
-
6V 4Ah battery
-
Battery type:
-
lead acid Battery
-
Material:
-
High Pure Lead
-
Terminal:
-
Cooper
-
Plates:
-
Lead Calcium
-
Electrolyte:
-
Sulfuric Acid Thixotropic
Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
Yangtze
-
Certification:
-
CE / ISO9001 / ISO14001 / Rohs
-
Model Number:
-
3-FM-4
-
Place of Origin:
-
Jiangsu, China
-
Weight:
-
0.71KG
-
Sealed Type:
-
Sealed
-
Maintenance Type:
-
Free
-
Voltage:
-
6V
-
Size:
-
70x47x100x104mm
-
Product name:
-
6V 4Ah battery
-
Battery type:
-
lead acid Battery
-
Material:
-
High Pure Lead
-
Terminal:
-
Cooper
-
Plates:
-
Lead Calcium
-
Electrolyte:
-
Sulfuric Acid Thixotropic

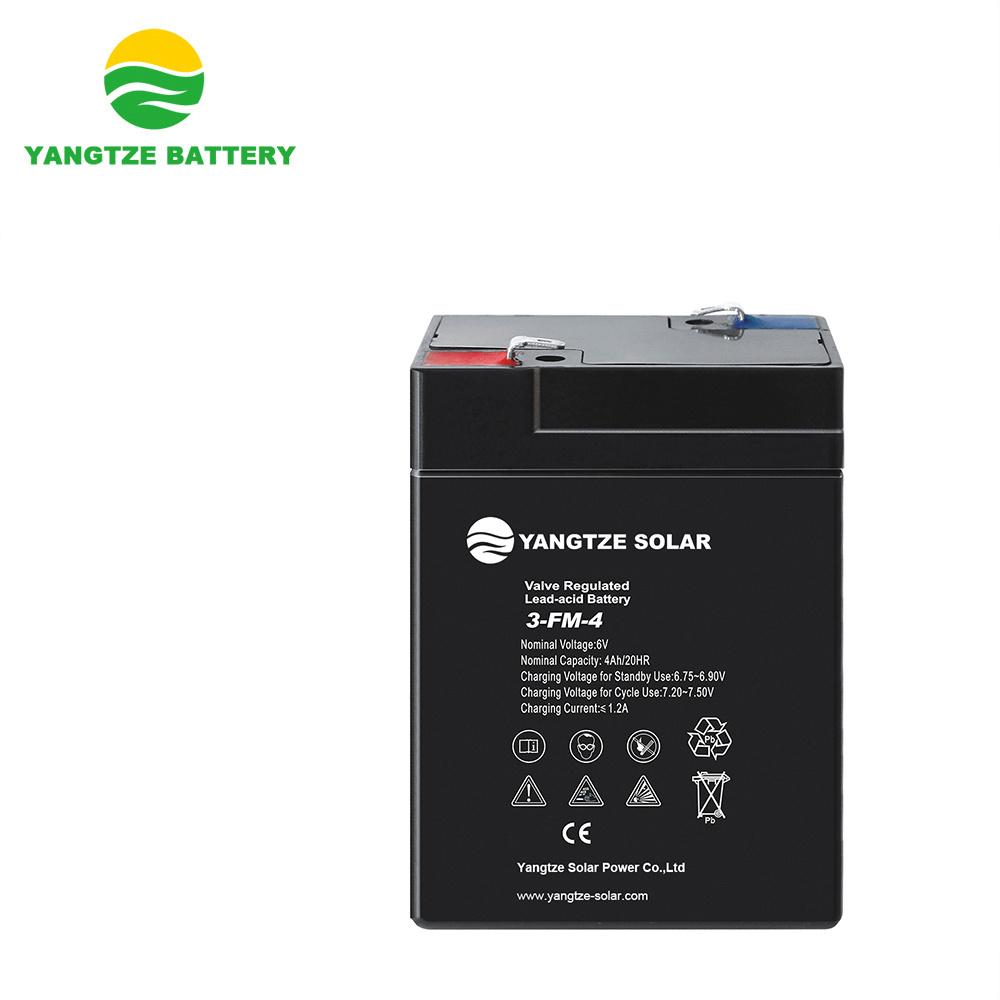

Hot sale torch light rechargeable battery 6v 4ah
Key Features :
♦Maintenance-Free ,Absorbent Glass Mat Technology
♦
Low Self Discharge
♦
Long Designed service Life ,Deep Cycles
♦
Excellent Discharge Performance
♦
Environment Friendliness
♦
Wide suitability of ambient temperature range
Applications :
♦
Solar and wind energy storage system
♦
EPS and UPS battery backup
♦
Signal system , emergency lighting system , security system
♦
Telecommunication Equipment
♦
Power source for portable devices or tools
| 1. Functional Parameter | 5. Environment Temperature | ||
| Nominal Voltage | 6V | Discharge Temperature | -15~50℃ |
| Nominal Capacity (20 hour rate) | 4Ah | Charge Temperature | 0~40℃ |
| Number of Cells | 3cells | Storage Temperature | -15~40℃ |
| 2. Rated Capacity at 25℃ (77° F) | 6. Inner Resistance & Max . Discharge Current | ||
| 20 hour rate (0.05C, 10.8V) | 4Ah | Fully Charged battery at 25℃ (77° F) | 26mΩ |
| 5 hour rate (0.165C, 10.8V) | 3.4Ah | Max. Discharge Current | 60A (5s) |
| 1 hour rate (0.55C, 10.5V) | 2.4Ah | Short Circuit Current | 200A |
| 3. Capacity affected by Temperature (20 hour rate) | 7. Self-discharge at 25℃ (77° F) | ||
| 40℃ (104° F) | 103% | Capacity after 3 month storage | 91% |
| 25℃ (77° F) | 100% | Capacity after 6 month storage | 82% |
| 0℃ (32° F) | 85% | Capacity after 9 month storage | 73% |
| -15℃ (5° F) | 65% | Capacity after 12 month storage | 64% |
| 4. Dimension and Weight | 8. Constant voltage charging at 25℃ (77° F) | ||
| Length | 70mm | Cyclic use | 7.2~7.45V |
| Width | 47mm | Maximum charging current | 1.2A |
| Height | 100mm | Temperature compensation | -15mV/℃ |
| Total Height | 104mm | Float use | 6.8~6.9V |
| Reference Weight | 0.71kg | Temperature compensation | -10mV/℃ |
